Vivo STAND-V102AF Instruction Manual

Vivo STAND-V102AF Instruction Manual

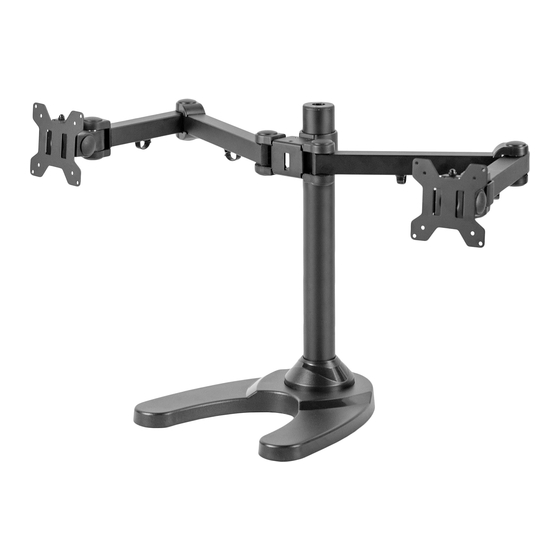

Dual monitor desk stand

Advertisement

Quick Links

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V102AF
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102af
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V102AF and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V102AF

  • Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V102AF Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102af GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Tools Needed

    TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Per Monitor Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Install the pole (a) to the weighted base (b) using M6x29 bolts (e). Tighten with a Phillips screwdriver and install decorative cover (d).
  • Page 4 STEP 2 Carefully slide monitor arm (c) down onto the pole, making sure holes for wire clips are facing down, and secure with M8x10 bolts (f) using the medium Allen wrench (m). Attach the wire clips (g) to the monitor arm. STEP 3 OPTION A: Flat Back Monitor Attach the VESA plates (o) to the monitors using M4x12 thumb bolts (h).
  • Page 5 STEP 3 (Continued) OPTION B: Curved Back TV Attach the VESA plates (o) to the monitors using M4 spacers (j) and M4x30 bolts (i). Tighten with a Phillips screwdriver. STEP 4 Slide the monitors onto the heads of monitor arm and install the security nuts (k). Make sure the security nuts are installed before you rotate the monitors.
  • Page 6 STEP 5 Pry off the plastic cover and tighten the nut on the side of the tilt joint with the wrench (n) to fix the tilt angle. To level the monitors, remove the security nut and turn the bolt with the small Allen wrench (m) to raise or lower the monitor.
  • Page 7 STEP 7 Manage cables using the wire clips (g). Remove the split cap from the pole and feed cables through, pulling ends out from the opening in back. Replace the split cap when finished.
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
