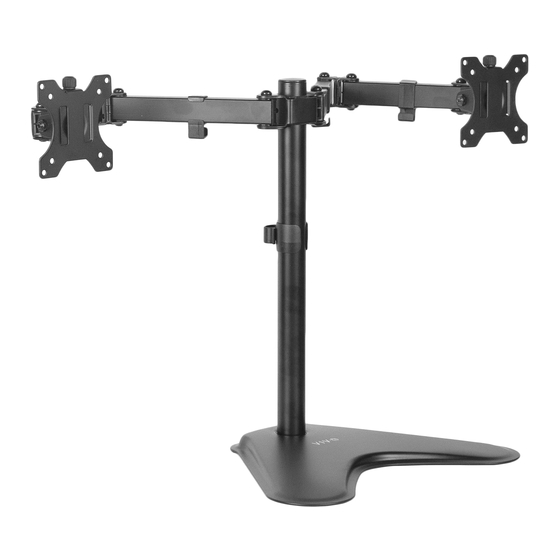

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V102F
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102f
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V102F
Summary of Contents for Vivo STAND-V102F
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V102F Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102f GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
-
Page 2: Package Contents
WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual. -
Page 3: Tools Needed
TOOLS NEEDED 17.6lbs DO NOT EXCEED WEIGHT CAPACITY. Per Arm Failure to do so may result in serious injury. (8 kg) Phillips Screwdriver ASSEMBLY STEPS STEP 1 Insert pole cap (K) to top of pole (D). STEP 2 Assemble pole (D) to base (C) with bolts (H) using 4mm Allen wrench (I). - Page 4 STEP 3 Install swivel arms (B) and cable clip (E) to pole (D). Fasten the bolt with the supplied 6mm Allen wrench (J). STEP 4 OPTION A: Flat Back Monitor For flat back monitor, install VESA plate (A) to monitor using bolts (M-A) or (M-C) and washers (M-E). M- E M- A M- C...
- Page 5 STEP 5 Slide the monitors onto the heads of swivel arms (B). Install thumb screws (F) using bolts (G). Make sure the screws are installed before you rotate the monitors. If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten or loosen the tilt angle using 6mm Allen wrench (J). STEP 6 Manage the cables using the installed cable clips.
- Page 6 STEP 7 Store the Allen wrench in cable clip (E) for future use.
- Page 7 STEP 8 Be careful not to extend the arms too far forward or backward. STEP 9 Adjust monitor alignment using thumb screws (F). If needed, use 6mm Allen wrench (J) to turn screw. +45° 360° -45° +45° 360° -45°...
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
