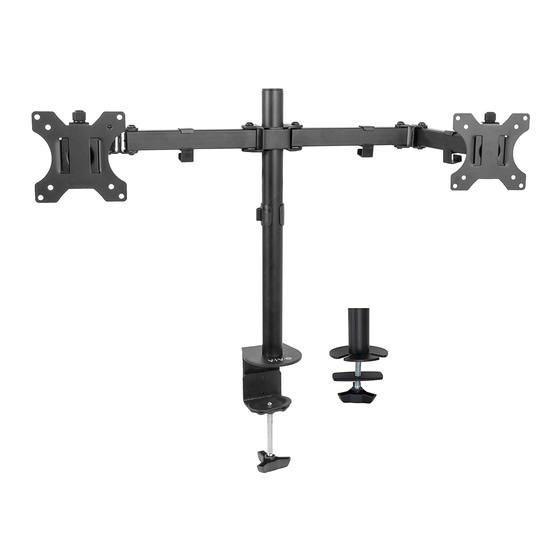

- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102 GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 17.6 lbs Failure to do so may result in serious injury. (8 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 Install pole cap (N) to top of pole (D). STEP 2 OPTION A: Clamp Installation Assemble pole (D) to clamp base (C) with bolts (J) using 4mm Allen key (L).
- Page 4 STEP 2 (Continued) OPTION B: Grommet Base Installation Remove screw from clamp bolt, and remove clamp bolt from clamp (C). Install pads (I) to grommet base (F). Align pin on top of grommet base (F) with the small hole on the bottom of pole (D), position over hole in desktop, and install to desktop using clamp bolt and support plate (K).
- Page 5 STEP 4 OPTION A: Flat Back Monitor For flat back monitor, install VESA plate (A) to monitor using bolts (M-A) or (M-C) and washers (M-E). M- E M- A M- C OPTION B: Curved Back Monitor For curved back monitor, install VESA plate (A) to monitor using bolts (M-B) or (M-D), washers (M-E), and spacers (M-F).
- Page 6 STEP 5 Slide the monitors onto the heads of swivel arms (B). Install thumb screws (G) using bolts (H). Make sure the screws are installed before you rotate the monitors. If needed, adjust the bolt on the side of the hinge behind the VESA plate to tighten or loosen the tilt angle using 6mm Allen key (M). STEP 6 Manage the cables using the installed cable clips.
- Page 7 STEP 7 Store the Allen keys in cable clip (E) for future use. STEP 8 Adjust monitor alignment using thumb screws (G). If needed, use 6mm Allen key (M) to turn screw. +45 ° 360 ° -45° +45 ° 360 ° -45°...
