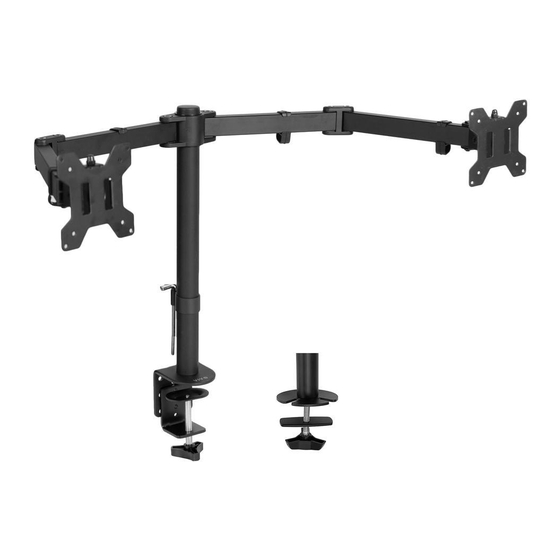

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V102D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V102D
Summary of Contents for Vivo STAND-V102D
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Option A: Desk Clamp Install Install the clamp brace (C) to the pole (A) using x3 M5x14 bolts (F). See Figure 1. Attach soft pad (Q1) to the clamp brace (C) , see Figure 2.
- Page 4 STEP 2 Install Swivel Arm (D) to the Pole (A). Fasten the bolt with supplied Allen Key (M). Attach the Wire Clip (L1, L2) to the Pole (A) and Swivel Arm (D).
- Page 5 STEP 3 OPTION A: Flat Back Monitor For flat back monitor, install VESA plate (E) to monitor using bolts (N). NOTE: Hand tighten screws to avoid over tightening. OPTION B: Curved Back Monitor For curved back monitor, install VESA plate (E) to monitor using bolts (O) and spacers (P). NOTE: Gently tighten with a screwdriver.
- Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (D). Install the security Nut (H). Make sure the security nut is installed before you rotate the monitor. STEP 5 To level the monitors, remove the nut (H) and turn the bolt with the Allen key (M) to raise or lower the monitor.
- Page 7 STEP 6 Use the supplied Allen Key (M) to make any necessary adjustments to the arm joints. Manage the wires and store the Allen keys (M) in Wire Clip (L1) for future use.
