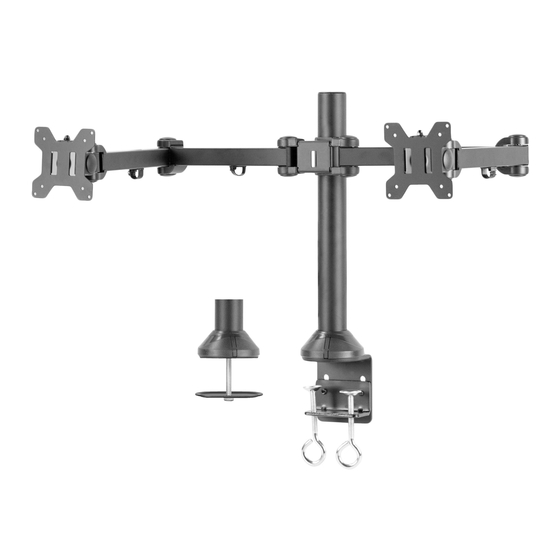

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V102AM
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102am
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V102AM
Summary of Contents for Vivo STAND-V102AM
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102AM Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102am GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION 1: Clamp Installation OPTION 2: Existing Grommet Instllation Install the C-clamp Brace (b2) to the 48mm Pipe If the existing grommet hole comes with a plastic (a) using 3pcs C-clamp Brace Bolts (h).
- Page 4 STEP 2 Place plastic pads (f) onto ends of monitor arms (d2), insert into arms (d1), and secure using M10x47 bolts (g) with Allen wrench (t). Press monitor arm covers (e) onto joints. STEP 3 Attach wire clips (x) to monitor arm (d1, d2). Install Monitor Arm to the 48mm Pipe (a), making sure the wire clips are facing down.
- Page 5 STEP 4 OPTION A: Flat Back TV Attach VESA Plates (v) to monitor using screws (p). Do not over-tighten. OPTION B: Curved Back TV Attach VESA Plates (v) to monitor using screws (q) with M4 Spacers (r). Do not over- tighten.
- Page 6 STEP 6 Pry off the plastic cover and then use the Wrench (u) to tighten the nut if the tilt angle can not be fixed. Remove the Nut (w) and turn the bolt counter-clockwise with supplied Allen key (t) to raise the monitor. Reinstall the Nut after the adjustment.
- Page 7 STEP 8 Manage the wires.
