Vivo STAND-V1020 Series Assembly Manual
Vivo STAND-V1020 Series Assembly Manual

Vivo STAND-V1020 Series Assembly Manual

Pneumatic arm dual monitor desk mount

Advertisement

Quick Links

Pneumatic Arm Dual
Monitor Desk Mount
STAND-V102O Series
Assembly Manual
Individual Product SKUs
STAND-V102O
STAND-V102OW

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAND-V1020 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V1020 Series

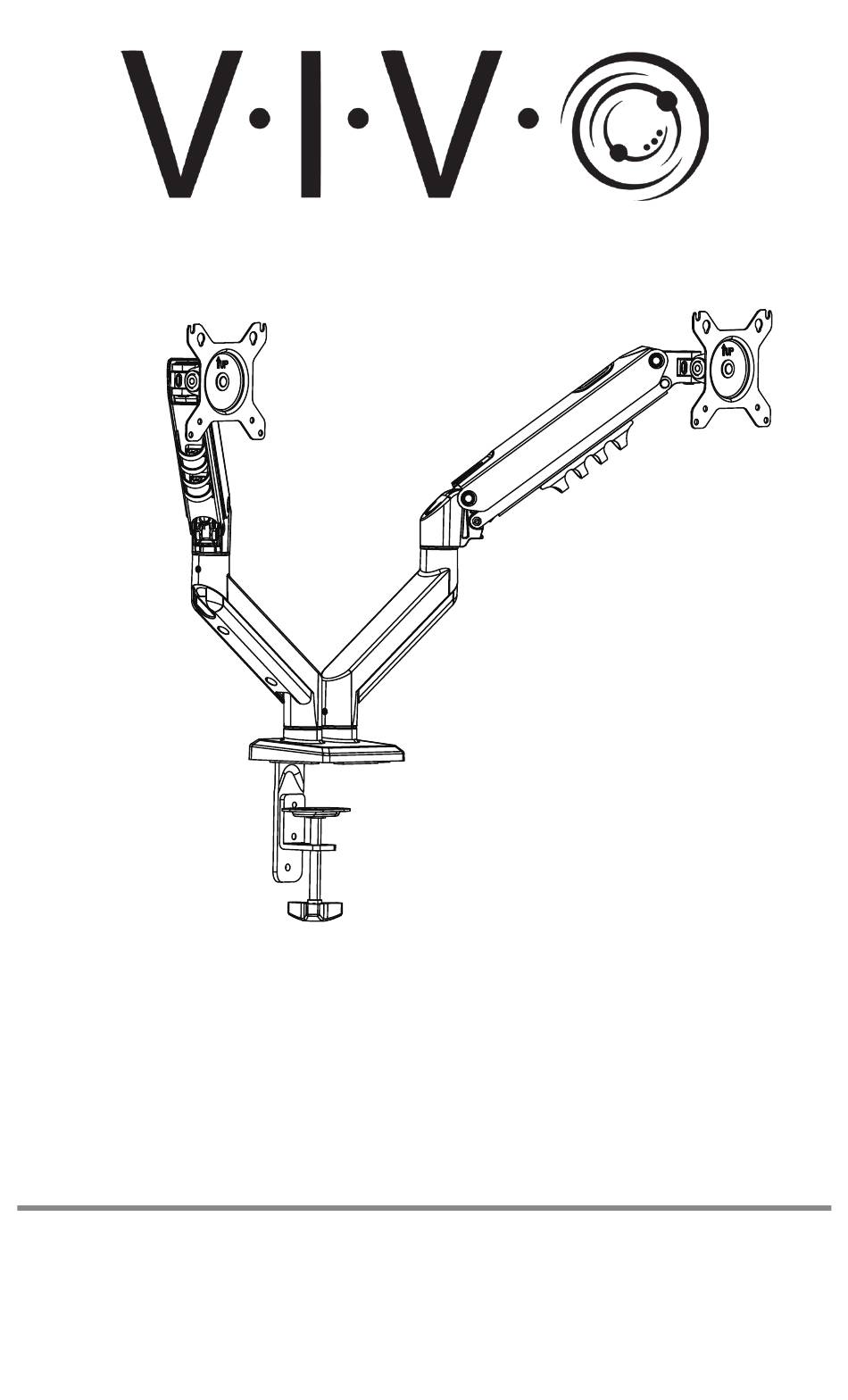

  • Page 1 Pneumatic Arm Dual Monitor Desk Mount STAND-V102O Series Assembly Manual Individual Product SKUs STAND-V102O STAND-V102OW...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3 Package Contents A (x2) B (x2) C (x1) D (x1) Upper Arm Lower Arm Base Clamp Plate E (x1) F (x3) G (x1) H (x1) Clamp Bolt Small Pad Large Pad Bolt Pad Included Hardware & Tools S-A (x3) M-A (x8) M-B (x8) M-C (x8) M6x12mm...
  • Page 4: Assembly Steps

    Assembly Steps STEP 1 - Option 1 - Clamp Assembly Desktop Thickness: 0.5”- 2.4”(12.7mm-60mm) Install Large Pad (G) through Clamp Apply Small Pads (F) to the bottom of Plate (D) into the bottom of Base using Base (C) in the designated locations. M6x12mm Screws (S-A) and 4mm Allen Wrench (T-A).
  • Page 5 - Option 2 - Alternate Clamp Assembly Desktop Thickness: 1.625”- 3.625”(25mm-100mm) Install Large Pad (G) through Clamp Apply Small Pads (F) to the bottom of Plate (D) into the bottom of Base using Base (C) in the designated locations. M6x12mm Screws (S-A) and 4mm Allen Wrench (T-A).
  • Page 6 STEP 1 - Cont’d - Option 3 - Grommet Assembly Desktop Thickness: 0.5”-2.4”(12.7mm-60mm) Install Large Pad (G) through Clamp Apply Small Pads (F) to the bottom of Plate (D) into the bottom of Base using Base (C) in the designated locations. M6x12mm Screws (S-A) and 4mm Allen Wrench.
  • Page 7 STEP 2 Place Lower Arms (B) onto Base (C). Using the Phillips side of 4mm Allen Wrench (T-A), tighten the Set Screw to secure. Set Screw Place Upper Arms (A) into Lower Arms (B). Using the Phillips side of 4mm Allen Wrench (T-A), tighten the Set Screw to secure.
  • Page 8 STEP 3 Install upper two screws, leaving about 3mm of thread. Use a Phillips screwdriver, relevant Screws (M-A or M-B) and Spacers (M-C) if neccesary. Too Long Too Short Flat Monitor Curved Monitor Place monitor onto VESA Plate (A1). Tighten the top two screws and install the remaining Screws (M-A or M-B) and if neccesary, Spacers (M-C) using a Phillips screwdriver.
  • Page 9 STEP 4 Adjusting Monitor Height Position Mount Arm Turn 0-10x to Set Monitor Height Position the arm horizontally, as shown above, and firmly hold in Turn 5mm Allen Wrench (T-B) 0-10 times place. to obtain proper support for your monitor. Use the guide below to adjust the tension according to the amount of counterbalance Insert...
  • Page 10 STEP 5 Run cables through Cable Covers. Leave enough slack to ensure full adjustability of arms. Cable Covers...
  • Page 11 Adjust as Desired Tilt Adjust the tilt support by turning the Adjustment Screw on VESA Plate (A1) using 5mm Allen Wrench (T-B). Rotation Your monitor can be rotated for a vertical display.
  • Page 12 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
