Vivo STAND-V102G2U Instruction Manual

Vivo STAND-V102G2U Instruction Manual

Pneumatic arm dual monitor desk mount with usb
Hide thumbs Also See for STAND-V102G2U:

Advertisement

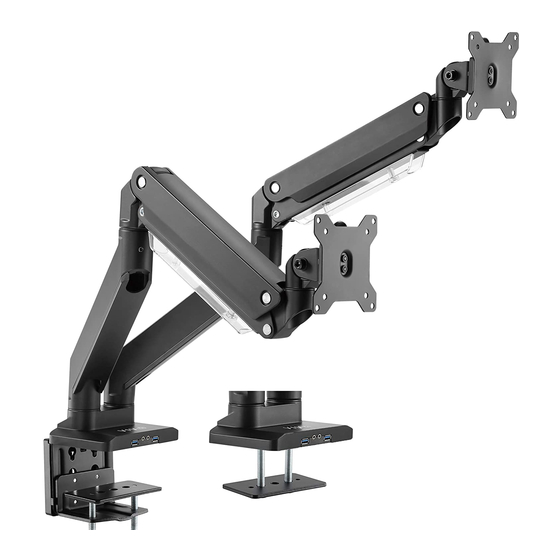

Pneumatic Arm Dual Monitor Desk Mount with USB
Instruction Manual
SKU: STAND-V102G2U
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102g2u
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAND-V102G2U and is the answer not in the manual?

Questions and answers

Summary of Contents for Vivo STAND-V102G2U

  • Page 1 Pneumatic Arm Dual Monitor Desk Mount with USB Instruction Manual SKU: STAND-V102G2U Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102g2u GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2: Package Contents

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
  • Page 3: Tools Needed

    TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 2.2-33lbs Failure to do so may result in serious injury. (1-15 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (I) to base (A) using flat head bolts (K) and tighten with 4mm Allen wrench (M).
  • Page 4: Installation

    STEP 1 (Continued) OPTION B: Grommet Base Installation Attach grommet plate (F) to base (A) using flat head bolts (K) and tighten with 4mm Allen wrench (M). Apply soft pad (G) to underside of base. Position base over grommet hole in desktop, or drill two 3/8”...
  • Page 5 STEP 4 Install the VESA plates (D) to monitors using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up. STEP 5 Pull back the release lever on the support bracket, then place the monitor with VESA plate into the support.
  • Page 6 STEP 7 Remove cable covers on upper arms using a Phillips screwdriver. Slide cable covers on lower arms forward to remove. STEP 8 Organize cables, then reinstall cable covers to arms.
  • Page 7 STEP 9 For safety, please do not extend the monitor behind the desk. This may cause instability and tip the desk over. Adjust as Desired...
  • Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
