Page 1

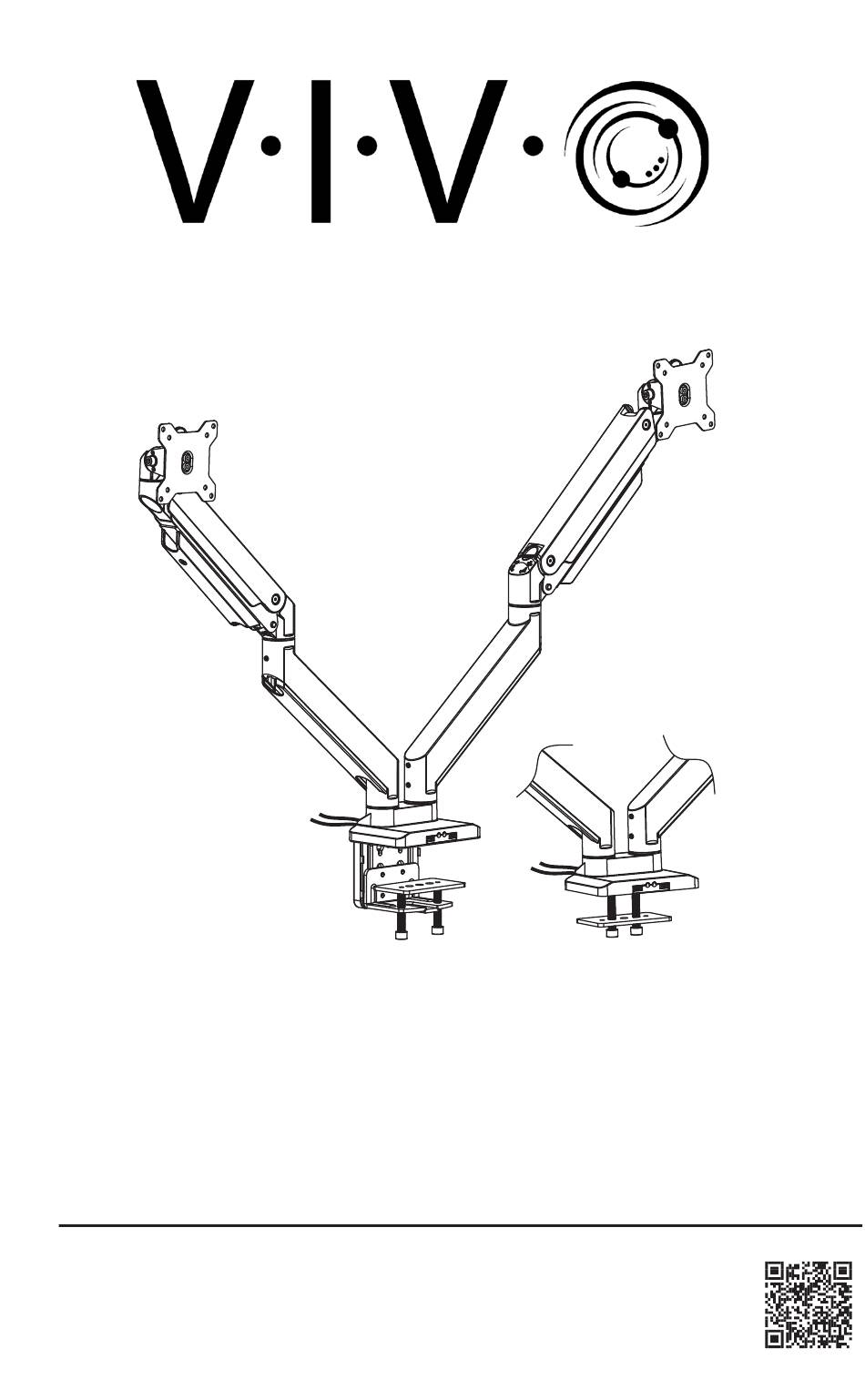

Pneumatic Arm Dual Monitor Desk Mount with USB SKU: STAND-V102G2U Instruction Manual Assembly Video & Product Info www.vivo-us.com/products/stand-v102g2u...
Page 2
If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
Page 3
Package Contents A (x1) B (x2) C (x2) D (x2) E (x1) Base Lower Arm Gas Spring Arm VESA Plate Clamp Plate F (x1) G (x1) H (x1) I (x1) J (x1) Grommet Soft Pad Cover Clamp Brace Clamp Plate Included Hardware &...
Option 1 Clamp Installation: STEP 1a Desk Thickness 3/8” - 2-1/2” (10 - 58mm) Attach Clamp Brace (I) to Base (A) using Flat Head Bolts (S-A) and tighten with 4mm Allen Wrench (T-B). Apply Soft Pad (G) to underside of Base. S-A (x4) Loosen bolts on back of Clamp (J) using 4mm Allen Wrench, leaving 6mm of thread exposed.
Page 5
CONT’D Place Clamp Plate (E) on top of clamp bolts. Position base on desktop and tighten clamp bolts evenly using 6mm Allen Wrench (T-C). Attach Cover (H) to back of clamp brace. Proceed to Step 2 on Page 8 STEP 1b Desk Thickness 2”...
Page 6
CONT’D Loosen bolts on back of Clamp (J) using 4mm Allen Wrench, leaving 6mm of thread exposed. Hang assembled clamp into lower 4 slots of clamp brace Place Clamp Plate (E) on top of clamp bolts. Position base on desktop and tighten clamp bolts evenly using 6mm Allen Wrench (T-C).
Page 7
Option 2 Grommet Installation: STEP 1c Attach Grommet Plate (F) to Base (A) using Flat Head Bolts (S-A) and tighten with 4mm Allen Wrench (T-B). Apply Soft Pad (G) to underside of Base. S-A (x4) Position base over grommet hole in desktop, or drill two 3/8” (10mm) holes 1-25/32” (45mm) apart through the desk for installation.
Page 8
All Assemblies STEP 2 Place Lower Arms (B) on top of Base (A), and secure by turning the lower screws in back with 3mm Allen Wrench (T-A). (NOTE: The upper screws in back do not have a function on this model). STEP 3 Place Gas Spring Arms (C) on top of Lower Arms, and secure by turning the screw in back with 3mm Allen Wrench (T-A).
Page 9
STEP 4 Install the VESA Plates (D) to monitors using M4x12mm Screws (M-A) or M5x12mm Screws (M-B) with Washers (M-C), making sure the arrow in back is pointing up. Tighten with Phillips screwdriver. (x4) STEP 5 Pull back the release lever on the support bracket, then place the monitor with VESA Plate into the support.
Page 10
STEP 6 If needed, adjust the counterbalance weight of Gas Spring Arms to support the monitors using the 6mm Allen Wrench (T-C). To do so, Turn the screw in back clockwise to decrease support, and counter-clockwise to increase. Adjust the tilt joint to tighten or loosen tilt support.
Page 11
STEP 7 Remove cable covers on upper arms using a Phillips screwdriver. Slide cable covers on lower arms forward to remove.
Page 12
STEP 8 Organize cables, then reinstall cable covers to arms.
Page 13
STEP 9 Adjust arms as desired. Store Allen Wrenches in Cable Cover (H).
Page 14
WARNING For safety, please do not extend the monitor behind the desk. This may cause instability and tip the desk over.
Page 16
LAST UPDATED: 12/26/23 REV1.1 v1.0 Need Help? Get In Touch Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com 309-278-5303 Chat live with an agent! FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us...
