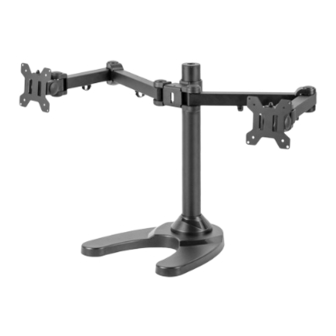

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V102AF
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102af
help@vivo-us.com
www.vivo-us.com
1-800-371-5654
Advertisement
Related Manuals for Vivo STAND-V102AF
Summary of Contents for Vivo STAND-V102AF
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V102AF Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102af help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22lbs Per Monitor Failure to do so may result in serious injury. (9.98kg) Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION 1: OPTION 2: Install the weighted base (b) to the 48mm Pipe Position the 48mm Pipe (a) on the mounting (a) using M6x29 Bolts (e).
- Page 4 STEP 2 Carefully slide monitor arm (c) onto 48mm pipe (a), making sure the cable clips are facing down. Secure with M8x10 bolts (f) using a Phillips screwdriver or Allen wrench (q). Ñ Ö STEP 3 OPTION A: Flat Back Monitor Attach VESA Plates (s) to monitor using M4x12 Thumb Screws (l).
- Page 5 STEP 3 (Continued) OPTION B: Curved Back TV Attach VESA Plates (s) to monitor using M4x30 Screws (m) with M4 Spacers (n). Do not over-tighten. STEP 4 Slide the monitors onto the heads of Monitor Arm (c) as shown in the diagram. Install the Security Nuts (o).
- Page 6 STEP 5 Pry off the plastic cover and then use the Wrench (r) to tighten the nut if the tilt angle can not be fixed. Remove the Nut (o) and turn the bolt counter-clockwise with supplied Allen Wrench (q) to raise the monitor.
- Page 7 STEP 7 Manage the wires.
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
