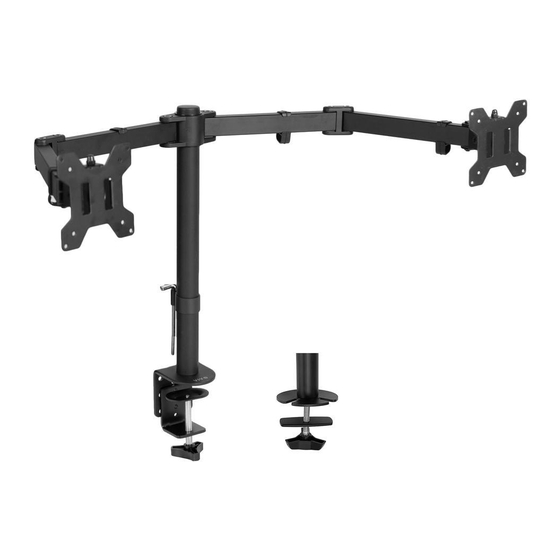

Dual Monitor Desk Mount
Instruction Manual
SKU: STAND-V102D
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102d
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo STAND-V102D
Summary of Contents for Vivo STAND-V102D
- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102D Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102d GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Install the “C” Clamp (b) to the Pole (a) using M5x14 Bolts (f), and tighten using the Allen Key (o).
- Page 4 STEP 1 (Continued) OPTION C: Self-Drilled Grommet Base Installation Position the Pole (a) on the mounting surface and mark the center hole. Drill a 3/8” (10mm) diameter hole at the marked position through the mounting surface. Install the Grommet Base Plate (m) to the Pole (a) using M5x14 Bolts (f), and tighten using the Allen Key (o).
- Page 5 STEP 3 OPTION A: Flat Back Monitor For flat back monitor, install VESA plate (e) to monitor using bolts (q). OPTION B: Curved Back Monitor For curved back monitor, install VESA plate (e) to monitor using bolts (r) and spacers (s).
- Page 6 STEP 4 Slide the monitor onto the head of Swivel Arm (d). Install the security Nut (h). Make sure the security nut is installed before you rotate the monitor. STEP 5 Slide the monitor onto the head of Swivel Arm (d). Install the security Nut (h). Make sure the security nut is installed before you rotate the monitor.
- Page 7 STEP 6 Use the supplied Allen Key (o) to make the necessary adjustments. Manage the wires and store the Allen keys (o) in Wire Clip (n1) for future use.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
