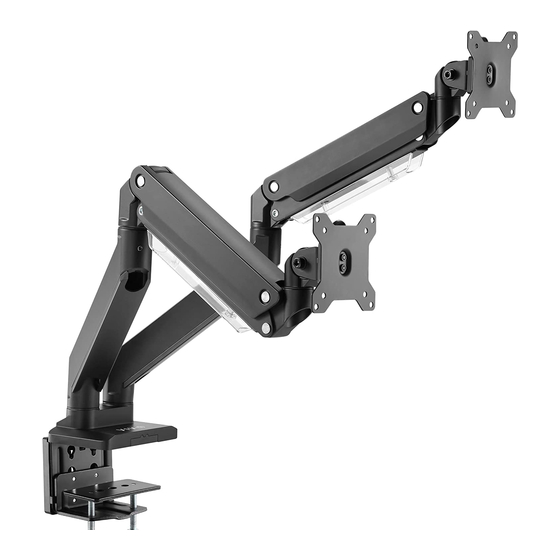

- Page 1 Dual Monitor Desk Mount Instruction Manual SKU: STAND-V102G2 Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102g2 help@vivo-us.com www.vivo-us.com 1-800-371-5654...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 33 lbs Failure to do so may result in serious injury. (15 kg) PER ARM Phillips Screwdriver ASSEMBLY STEPS STEP 1 OPTION A: Clamp Installation Attach clamp brace (I) to base (A) using flat head bolts (K) and tighten with 4mm Allen wrench (M).
- Page 4 STEP 1 (Continued) OPTION B: Grommet Base Installation Attach grommet plate (F) to base (A) using flat head bolts (K) and tighten with 4mm Allen wrench (M). Apply soft pad (G) to underside of base. Position base over grommet hole in desk- top, or drill two 3/8”...
- Page 5 STEP 4 Install the VESA plates (D) to monitors using M4x12 bolts (M-A) or M5x12 bolts (M-B) with washers (M-C), making sure the arrow in back is pointing up. STEP 5 Pull back the release lever on the support bracket, then place the monitor with VESA plate into the support.
- Page 6 STEP 7 Remove cable covers on upper arms using a Phillips screwdriver. Slide cable covers on lower arms forward to remove. STEP 8 Organize cables, then reinstall cable covers to arms.
- Page 7 STEP 9 For safety, please do not extend the monitor behind the desk. This may cause instability and tip the desk over. Pleas e DO NOT rotat e monito r pas t rear edg e of desk. Or else it will creat e an unstabl e situatio n an d ma y caus e equipmen t tipove r.
- Page 8 Love your new VIVO setup and want to share? Tag us in your photo! @vivo_us If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functioning product.
