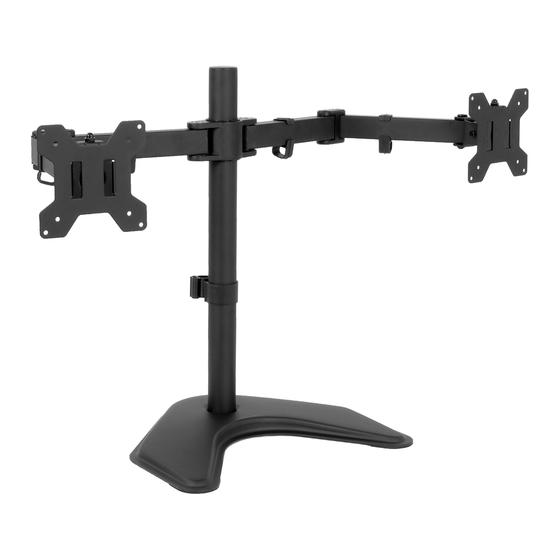

Dual Monitor Desk Stand
Instruction Manual
SKU: STAND-V102K
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/stand-v102k
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo STAND-V102K
Summary of Contents for Vivo STAND-V102K
- Page 1 Dual Monitor Desk Stand Instruction Manual SKU: STAND-V102K Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/stand-v102k GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com www.vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 TOOLS NEEDED DO NOT EXCEED WEIGHT CAPACITY. 22 lbs Failure to do so may result in serious injury. (10 kg) PER ARM Phillips Drill Screwdriver ASSEMBLY STEPS STEP 1 Install the pole (a) to the base (b) using M5x14 bolts (e). Tighten with the small Allen wrench (h).
- Page 4 STEP 2 Slide swivel arm (c) down onto the pole and tighten the bolt with large Allen wrench (h). Attach the wire clips (g1, g2) to the pole and swivel arm. STEP 3 OPTION A: Flat Back Monitor Attach the VESA plates (d) to the monitors using M4x12 thumb bolts (i). NOTE: Hand tighten screws to avoid stripping the plastic screw heads.
- Page 5 STEP 3 (Continued) OPTION B: Curved Back TV Attach the VESA plates (d) to the monitors using M4 spacers (k) and M4x30 bolts (j). Tighten with a Phillips screwdriver. STEP 4 Slide the monitors onto the heads of swivel arm and install the security nuts (f). Make sure the security nuts are installed before you rotate the monitors.
- Page 6 STEP 5 Tighten the bolt on the side of the tilt joint with the medium Allen wrench (h) to fix the tilt angle. To level the monitors, remove the security nut and turn the bolt with the small Allen wrench (h) to raise or lower the monitor.
- Page 7 STEP 6 Use the medium Allen wrench (h) to adjust swivel joints if needed. Manage cables and store the Allen wrenches (h) in wire clip (g1) for future use. CAUTION: To prevent tipping, please be careful not to extend the arms too far forward or backward.
- Page 8 - 92% within < 3hr www.vivo-us.com : < 15 M AVG. RESOLUTION TIME (within office hrs) Chat live with an agent! : 5M 4S 309-278-5303 AVG. RESOLUTION TIME (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
