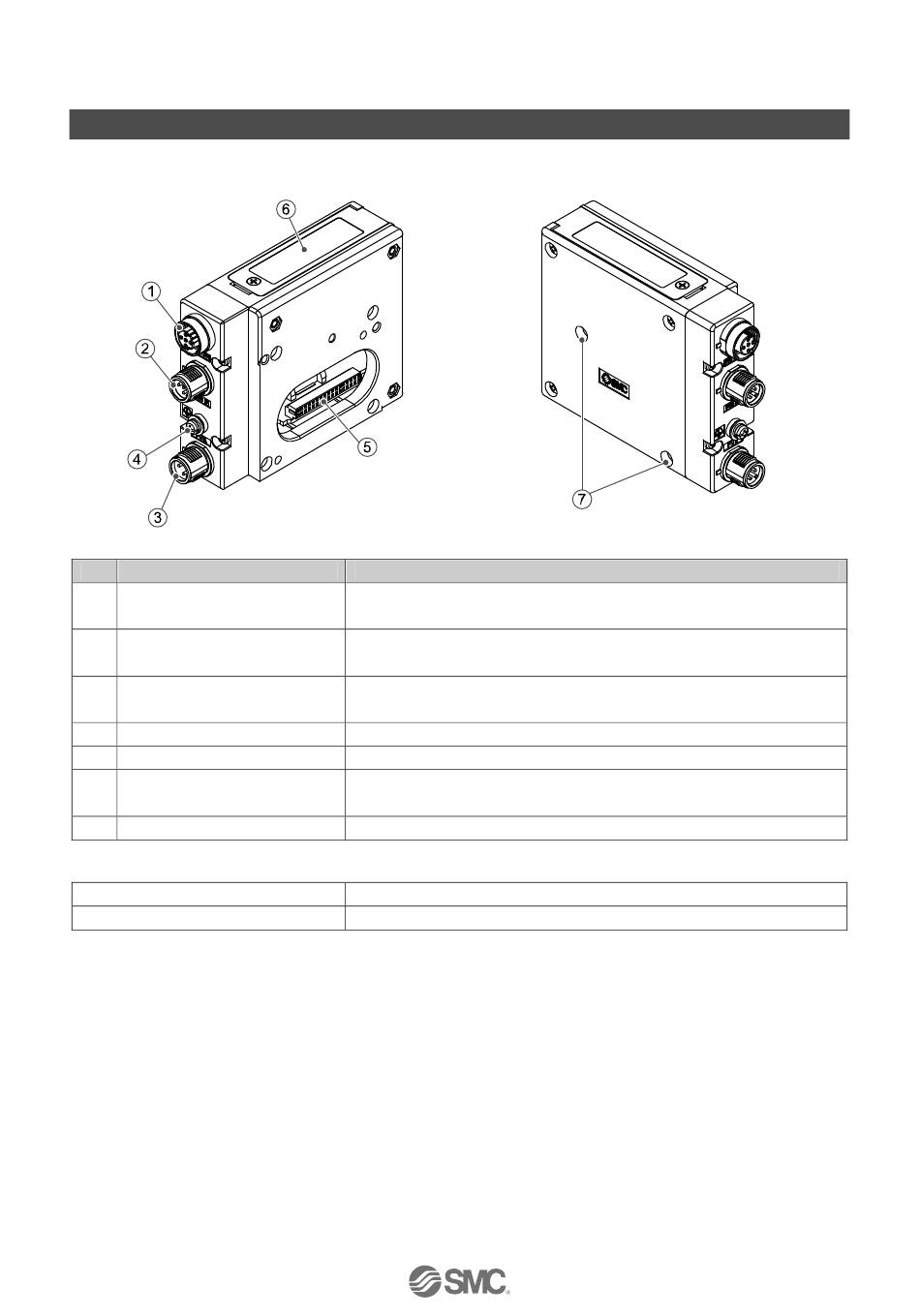

Summary of Product elements

<EX260-SDN1/-SDN2/-SDN3/-SDN4>
No.
Element
Fieldbus interface connector
1
(BUS OUT)
Fieldbus interface connector
2
(BUS IN)
3
Power supply connector
4
Ground terminal
5
Output connector
6
LED and switch
7
Mounting hole
Accessories
Hexagon socket head cap screw
Seal cap
∗1: For details of suitable cables refer to the Accessories section on page 36.
∗2: Refer to page
15
for the LED Indication and Settings.
∗ 1
TM
DeviceNet
connection.
(M12 5-pin socket, A-coded)
∗ 1
TM
DeviceNet
connection.
(M12 5-pin plug A-coded)
Power supply with load voltage for valves.
(M12 4-pin plug, A-coded)
Functional earth. (M3 screw)
Output signal interface for valve manifold.
LED display to indicate the status of the SI unit
Switches for setting of node address and operating mode.
Mounting hole for connection to the valve manifold.
2 pcs. M3 x 30 screw for connection to the valve manifold.
1 pc. seal cap for unused fieldbus interface connector (BUS OUT).
-9-
Description
∗ 1
∗ 2
∗ 2
No.EX##-OMN0013-D
