1.2 Alternative arrangements (Dual fan kit)
In situations where the preferred arrangement cannot be used or will not work effectively e.g.
• Single cupboard where the 100mm grille spacing cannot be achieved.
• Where there are openings in the back of the cupboard allowing exhaust air to recirculate into the cupboard
space.

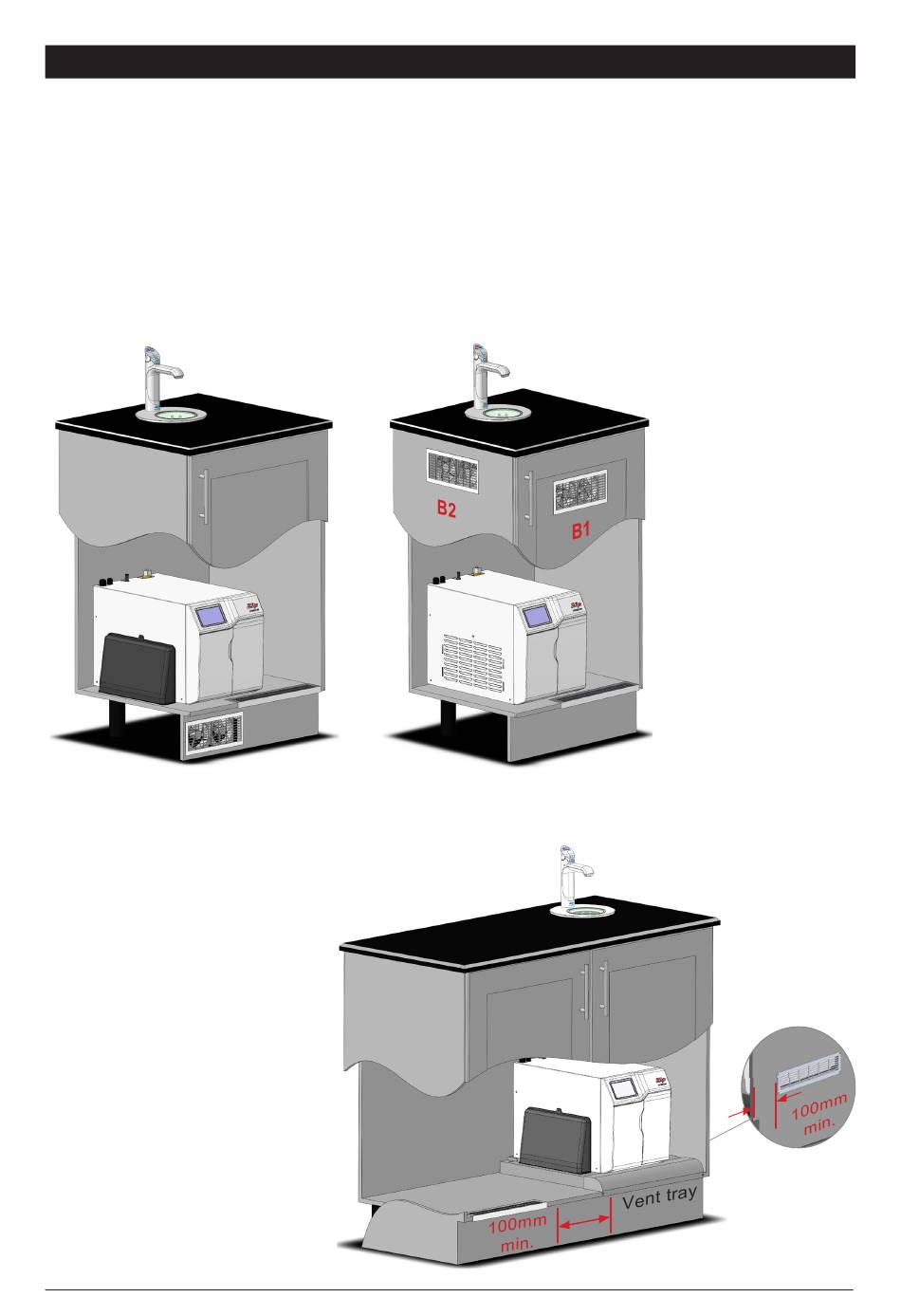

An SP93156 Dual exhaust fan kit* must be fitted in either arrangement A or B shown below and connected to
the DIN socket on the Command-Centre
Fan kit fitted to kick board and with kick space duct fitted to the Command-Centre
A
Fan kit fitted to cupboard door (position B1) or side (position B2) and without kick space duct fitted to the
B
Command-Centre .
TM
A
1.3 Alternative arrangements (Vent tray)
In situations where cupboard width is 1000mm or greater, without central pillar and where
vent grilles cannot be fitted in the kick
board (e.g. hospitals) use a
Vent tray kit (SP93541).
• The flat vent grille, supplied
should be used as an inlet vent
and fitted to the cabinet side
(adjacent to the Command-Centre
air inlet) or the angled inlet grille
supplied should be fitted in the
baseboard, observing 100mm
separation from the vent tray
exhaust.
801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Ventilation
.
TM
B
.
TM
For dual exhaust fan
*
cut-out dimensions
see the instructions
provided with the kit.
Position a flat
vent grille in the
cupboard end or
angled inlet grille
on the baseboard
