Section 1- Ventilation; Ventilation For All Models - Zip HydroTap G4 Installation Instructions Manual

When installing air flow vents, the following tools will be required
• Jigsaw and drill.
• Keyhole or wall board saw.

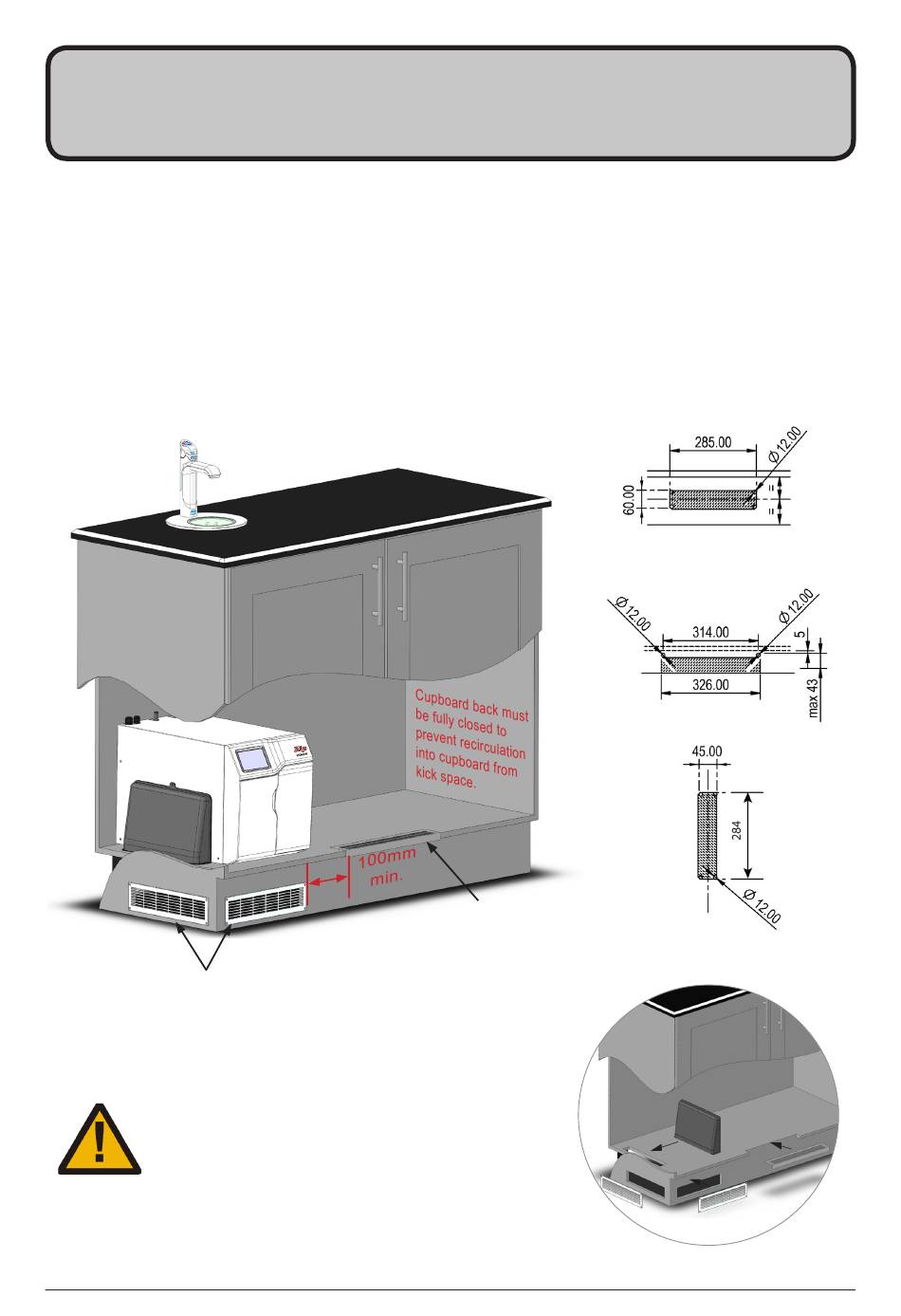

1.1 Preferred ventilation arrangement shown below.
The ducted vent kit supplied with the Command-Centre
to provide adequate ventilation in all conditions. (Ancillary components are not shown in these diagrams).
Position vent grille on either the kick
board or the cupboard ends
Important
See section 2 Command-Centre
page 12
Page 10 of 16
Section 1
Ventilation
exhausting through the kick-space should be used,
TM
Inlet grille should be
fitted in baseboard
installation,
TM
801525UK G4 Commercial chilled only installation instructions - June 2016 - V2.04
Vent cut-out details
A
Air outlet vent
B
Air inlet vent
C
Ducted vent
B
C
A
A
