Evaluating the

FEATURES

Filterless digital input, mono Class-D amplifier
Operates from a single 4.5 V to 17 V supply
25 W output power, 16 V supply and 4 Ω load at 1% THD + N
107 dB A-weighted signal-to-noise ratio
93.3% efficiency into 8 Ω load at 12 V
I 2 C control with up to 4 pin-selectable slots/addresses
Digital interface supports sample rates from 8 kHz to 192 kHz
Flexible digital and analog gain adjustment
Flexible supply monitoring AGC function
Short-circuit and thermal protection, thermal warning

EVALUATION KIT CONTENTS

EVAL-SSM3515Z evaluation board
EVAL-ADUSB2EBZ USB interface board (USBi)
User GUI with SigmaStudio
product page)

DOCUMENTS NEEDED

SSM3515 data sheet
EVAL-SSM3515Z user guide

GENERAL DESCRIPTION

The EVAL-SSM3515Z is an evaluation board for quick evaluation
of the SSM3515. The board uses a single supply from 4.5 V to
17 V. The board includes 3.3 V and 1.8 V regulators. The on-board
digital SPDIF optical input generates the serial digital signal to
the SSM3515. The board provides register control using USBi
with SigmaStudio™-based GUI or the Total Phase Aardvark™
I 2 C/SPI Host Adapter. The application circuit requires a minimum
of external components and can operate from a single 4.5 V to
17 V supply. It is capable of delivering 8 W of continuous output
power into an 8 Ω load, and 15 W into an 4 Ω load from a 12 V
power supply. The board can deliver 25 W into a 4 Ω load from
a 16 V power supply, all with <1% total harmonic distortion +
noise (THD + N); however, output powers above 20 W are not
continuous due to the thermal limit.
This user guide describes how to configure and use the
SSM3515Z evaluation board. When using the evaluation board,
consult this user guide in conjunction with the
sheet, which provides specifications, internal block diagrams,
and application guidance for the amplifier IC.
The EVAL-SSM3515Z evaluation board includes a complete
circuit for driving a loudspeaker. Figure 1 shows the top view of
the evaluation board, and Figure 2 shows the bottom view of the
evaluation board.
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
SSM3515 25 W, Filterless, Class-D, Digital Input Audio Amplifier
software (download from
EVAL-
SSM3515
EVAL-SSM3515Z User Guide

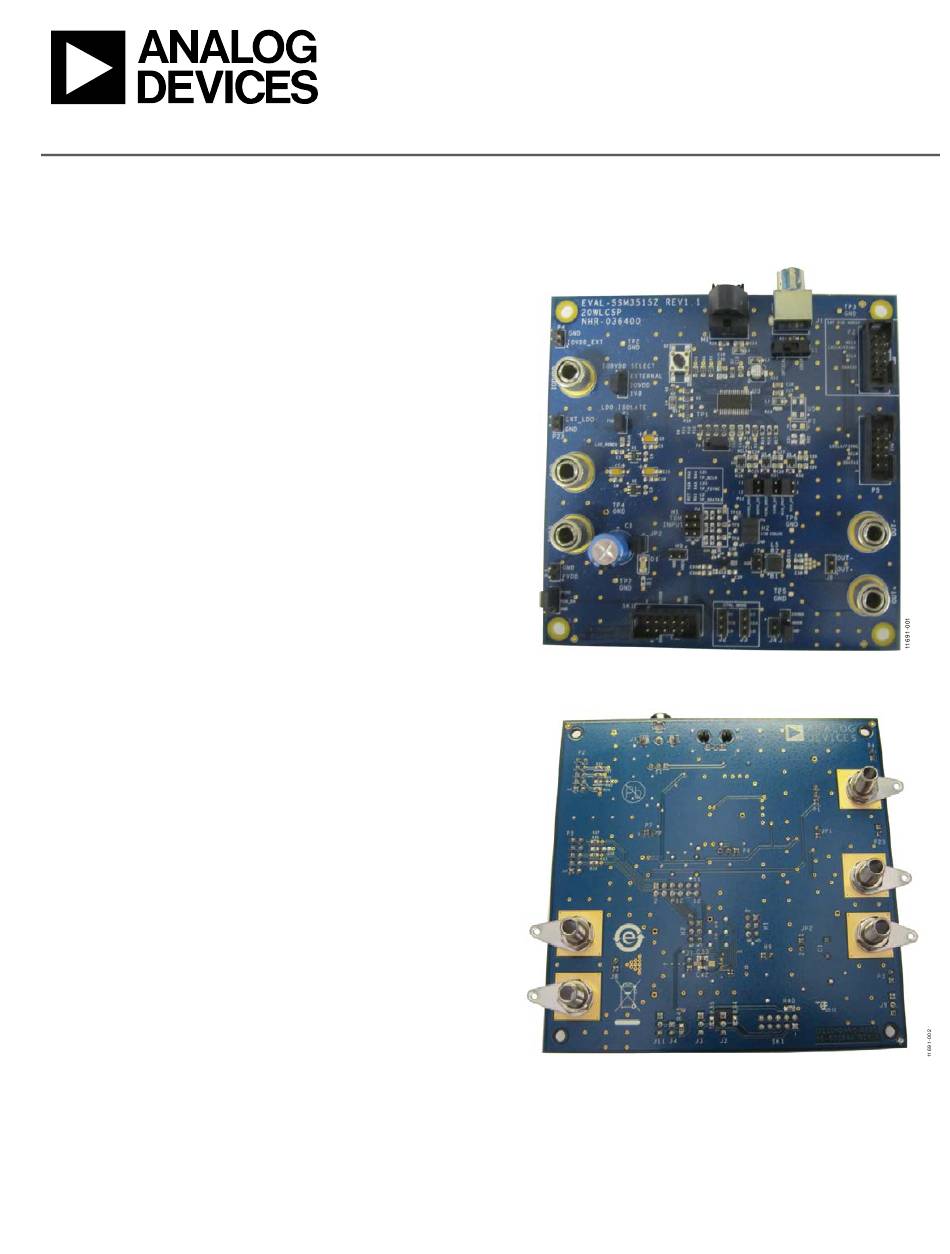

EVALUATION BOARD TOP VIEW AND BOTTOM VIEW

Figure 1.
data
Figure 2.
Rev. A | Page 1 of 19
EVAL-SSM3515Z Evaluation Board Top View
EVAL-SSM3515Z Evaluation Board Bottom View
UG-580
