20. In the SAI/Limiter Control tab, under SAI Control 1,
select Stereo Mode (see Figure 7). If clock and data signals
are present, the SSM3515
Connector J8 and audio can be heard from the connected
speaker.
switching outputs are available at

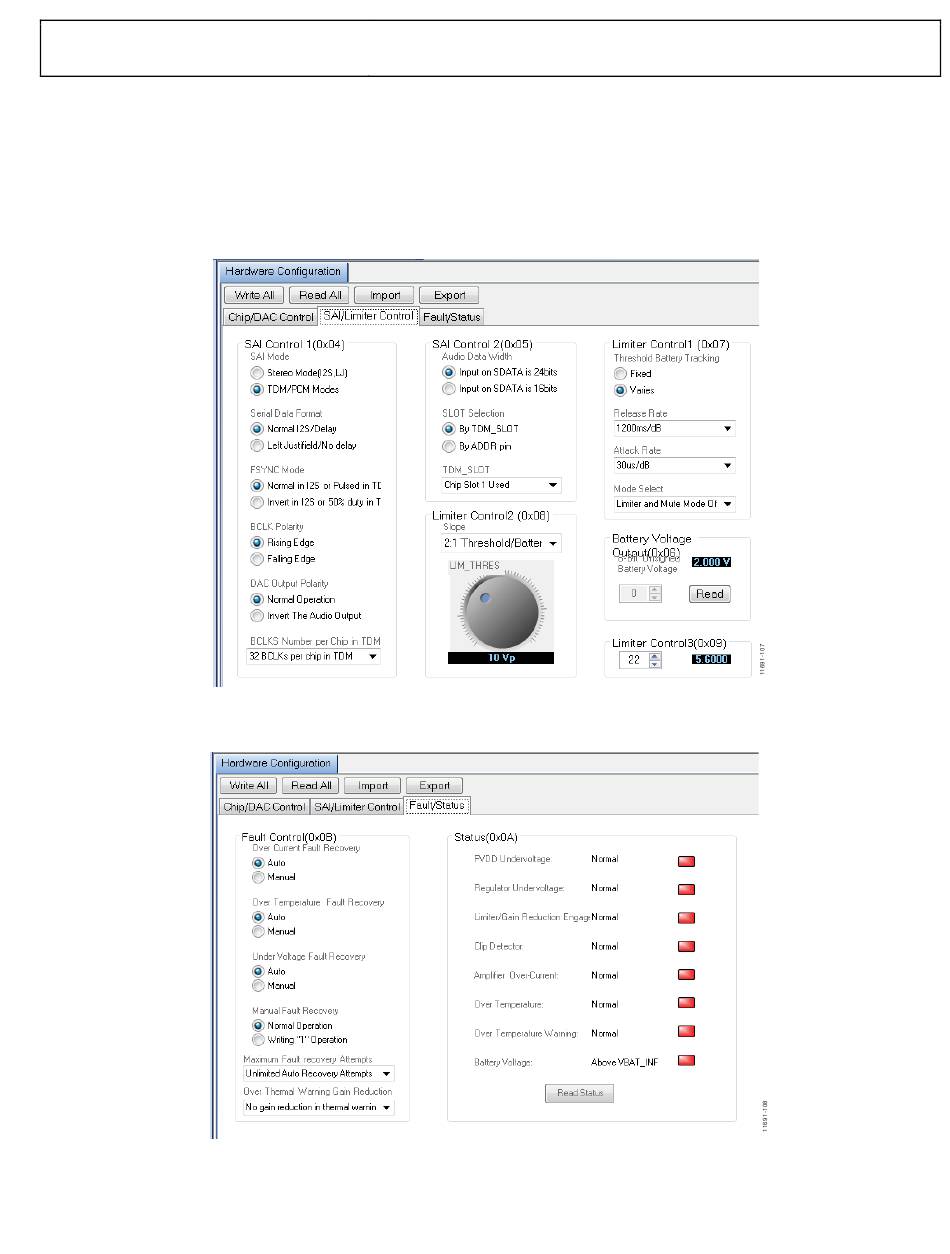

Figure 7. Serial Audio Interface and Limiter Control Tab
Figure 8. Fault/Status Tab
21. Click the Chip/DAC Control tab in the GUI (see Figure 6).
Under Master Software Powerdown, select Normal
Operation to power up the chip.
22. The Fault/Status tab provides the settings for faults and
status (see Figure 8). Click Read Status. If no faults exist,
all indicators are green.
