Section 1

Introduction

th ® TM ®

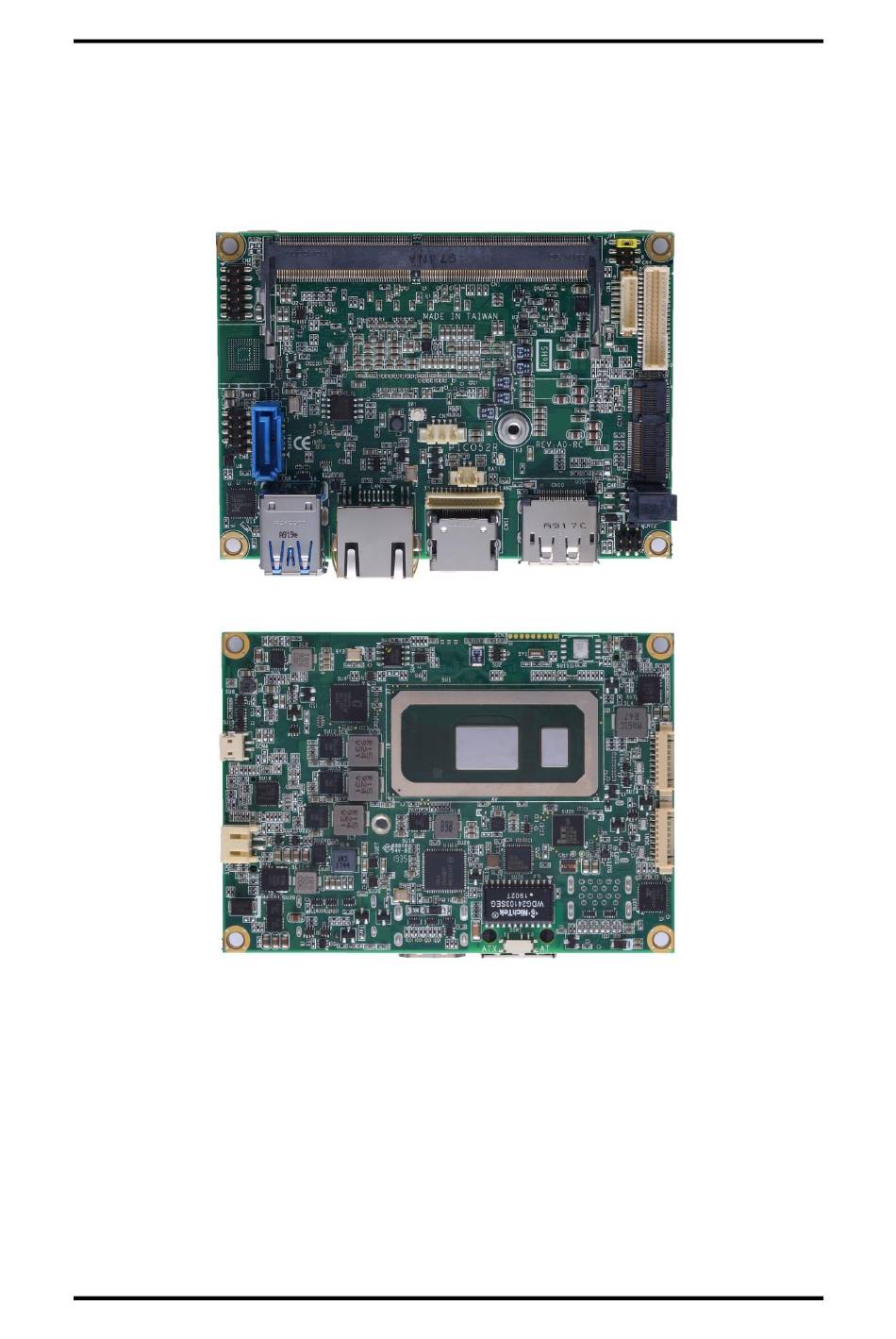

The PICO52R is a Pico-ITX board with the 8 Generation Intel Core i7/ i5/ i3 and Celeron
processors that deliver outstanding system performance through high-bandwidth interfaces,
multiple I/O functions for interactive applications and various embedded computing solutions.
The PICO52R has one 260-pin unbuffered SO-DIMM socket for DDR4 2400MHz SO-DIMM
memory with maximum capacity up to 32GB. It also features two Gigabit/Fast Ethernet, two
USB 3.1 Gen2 and two USB 2.0 high speed compliant and one M.2 Key E for wireless module.
Additionally, it provides you with unique embedded features such as two serial ports which
support RS-232/422/485 and 2.5" form factor that applies an extensive array of PC peripherals.
The board can be enhanced by its built-in watchdog timer function, a special industrial feature
not commonly seen on other motherboards.
