Fan Connector (Scn4); Sata Power Connector (Scn5) - AXIOMTEK PICO52R User Manual

PICO52R Pico-ITX Board
2.5.17

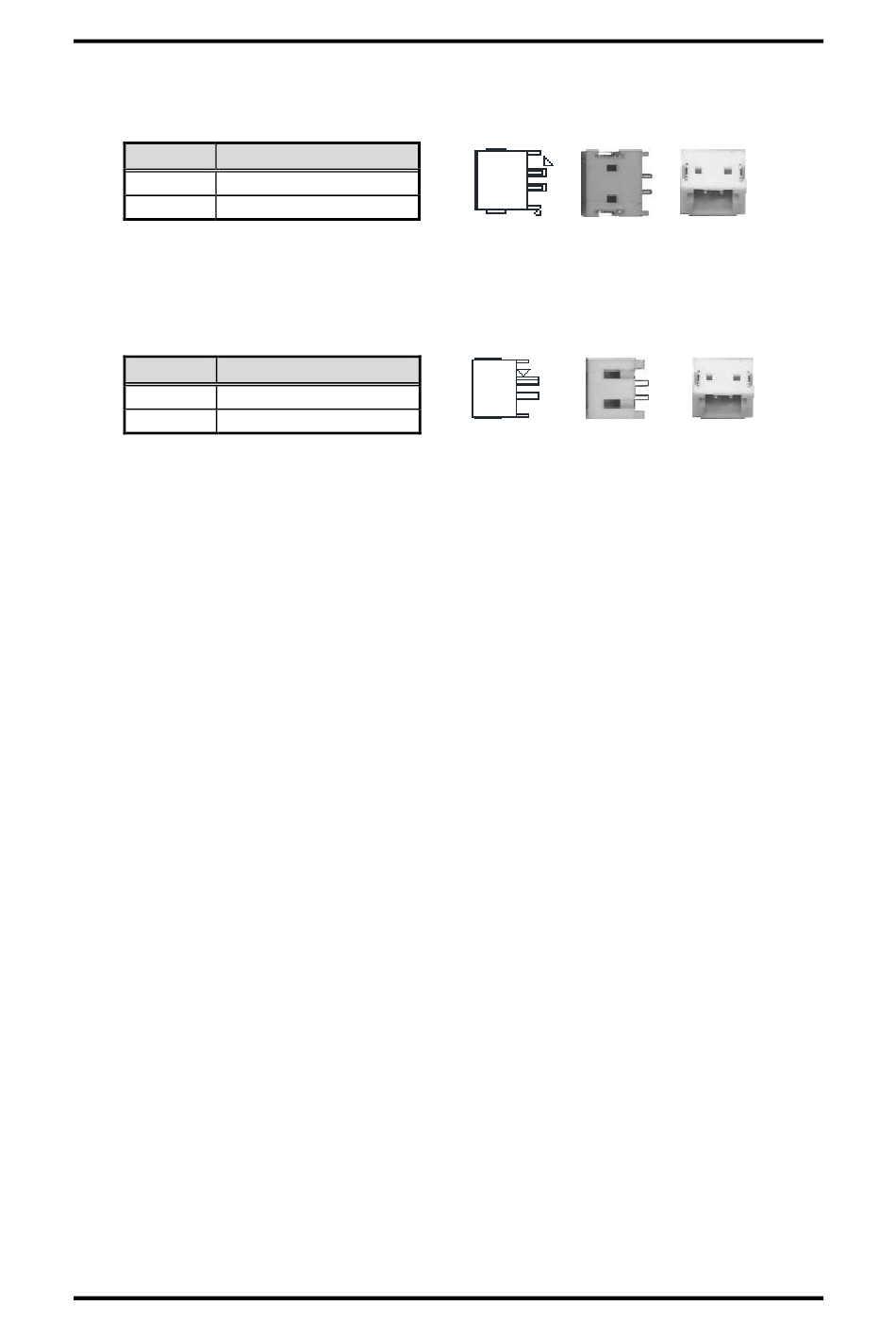

Fan Connector (SCN4)

This is a 2-pin (pitch=1.5mm) wafer connector for 12V/0.5A fan interface.
Pin Signal
1 +V12S
2 GND
2.5.18

SATA Power Connector (SCN5)

This is a 2-pin (pitch=2.0mm) wafer connector for 5V/1A DC power output.
Pin Signal
1 +V5S
2 GND
24 Board and Pin Assignments
