PICO52R Pico-ITX Board

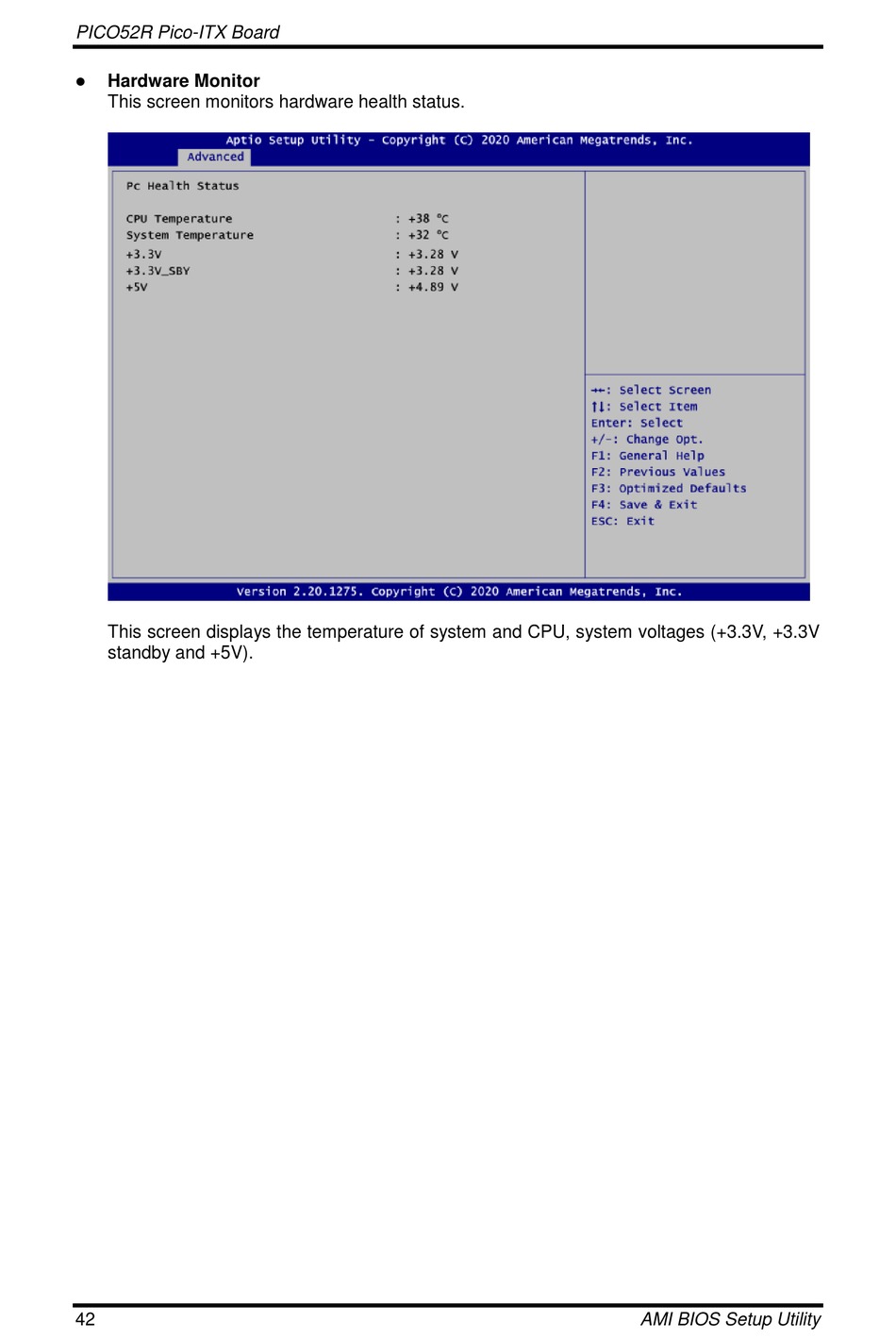

Hardware Monitor
This screen monitors hardware health status.
This screen displays the temperature of system and CPU, system voltages (+3.3V, +3.3V
standby and +5V).
42
AMI BIOS Setup Utility
