4.3

Main Menu

When you first enter the setup utility, you will enter the Main setup screen. You can always
return to the Main setup screen by selecting the Main tab. System Time/Date can be set up as

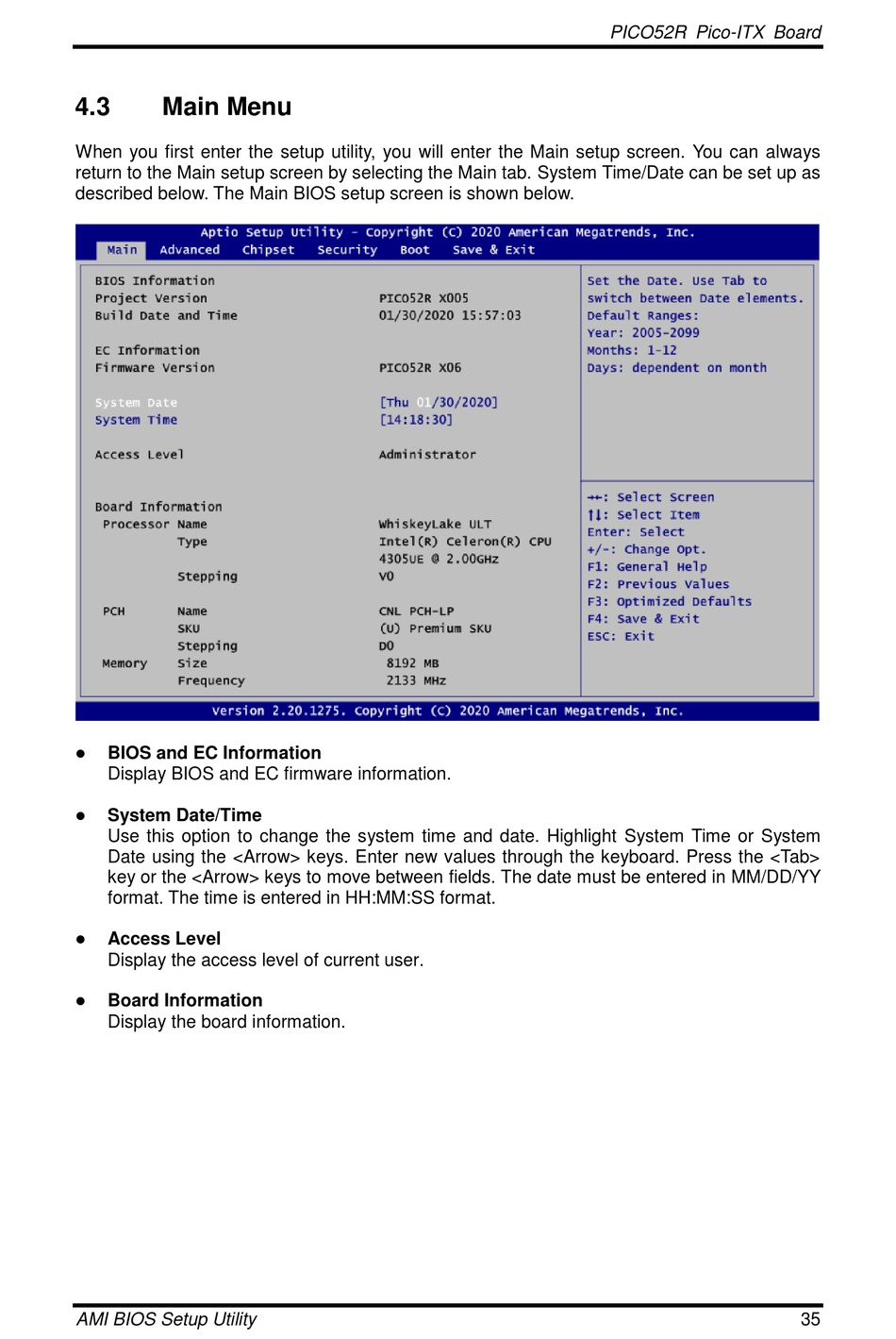

described below. The Main BIOS setup screen is shown below.

BIOS and EC Information
Display BIOS and EC firmware information.
 System Date/Time
Use this option to change the system time and date. Highlight System Time or System
Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab>
key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY
format. The time is entered in HH:MM:SS format.
 Access Level
Display the access level of current user.
 Board Information
Display the board information.
AMI BIOS Setup Utility
PICO52R Pico-ITX Board
35
