PICO52R Pico-ITX Board

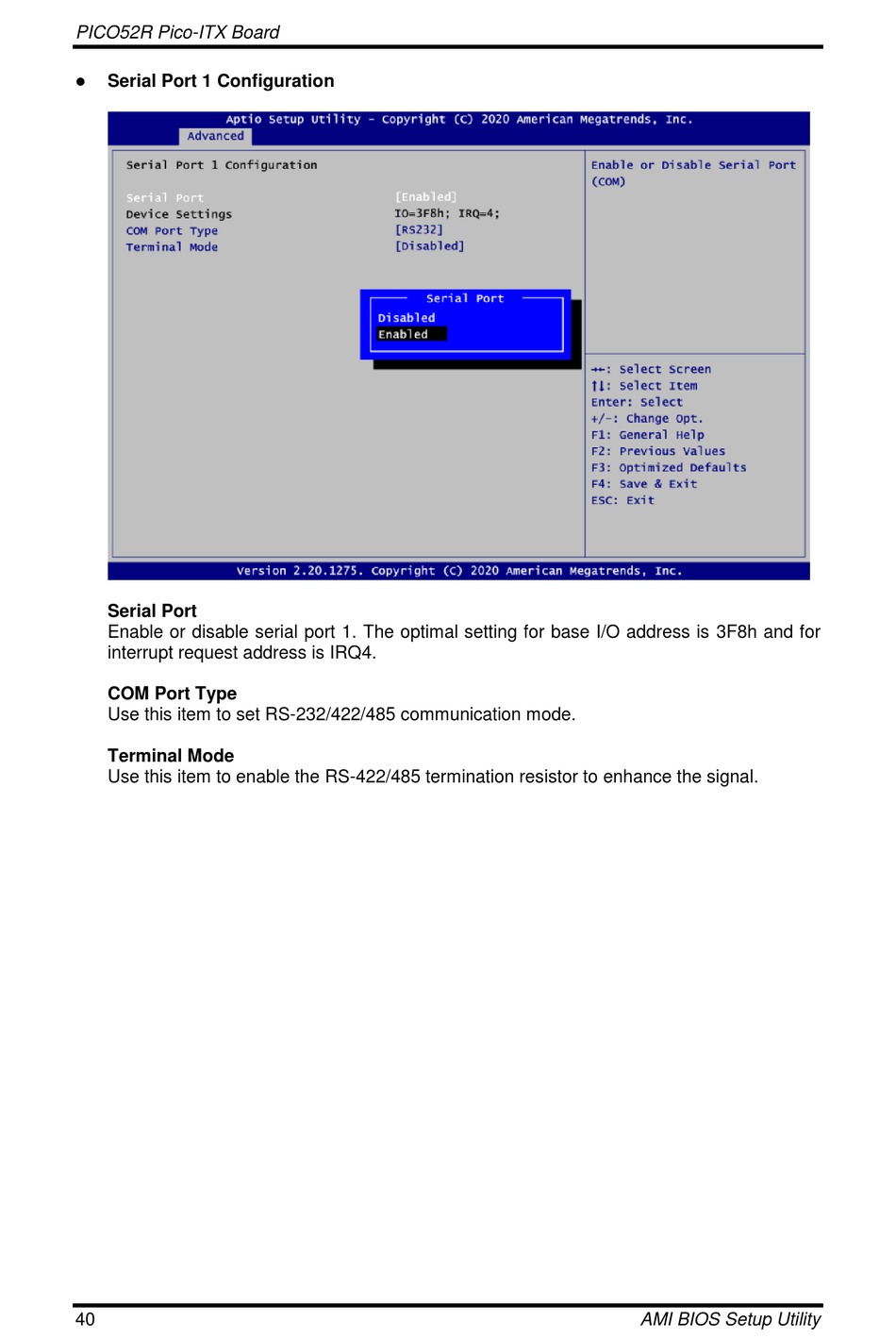

Serial Port 1 Configuration
Serial Port
Enable or disable serial port 1. The optimal setting for base I/O address is 3F8h and for
interrupt request address is IRQ4.
COM Port Type
Use this item to set RS-232/422/485 communication mode.
Terminal Mode
Use this item to enable the RS-422/485 termination resistor to enhance the signal.
40
AMI BIOS Setup Utility
