PICO52R Pico-ITX Board

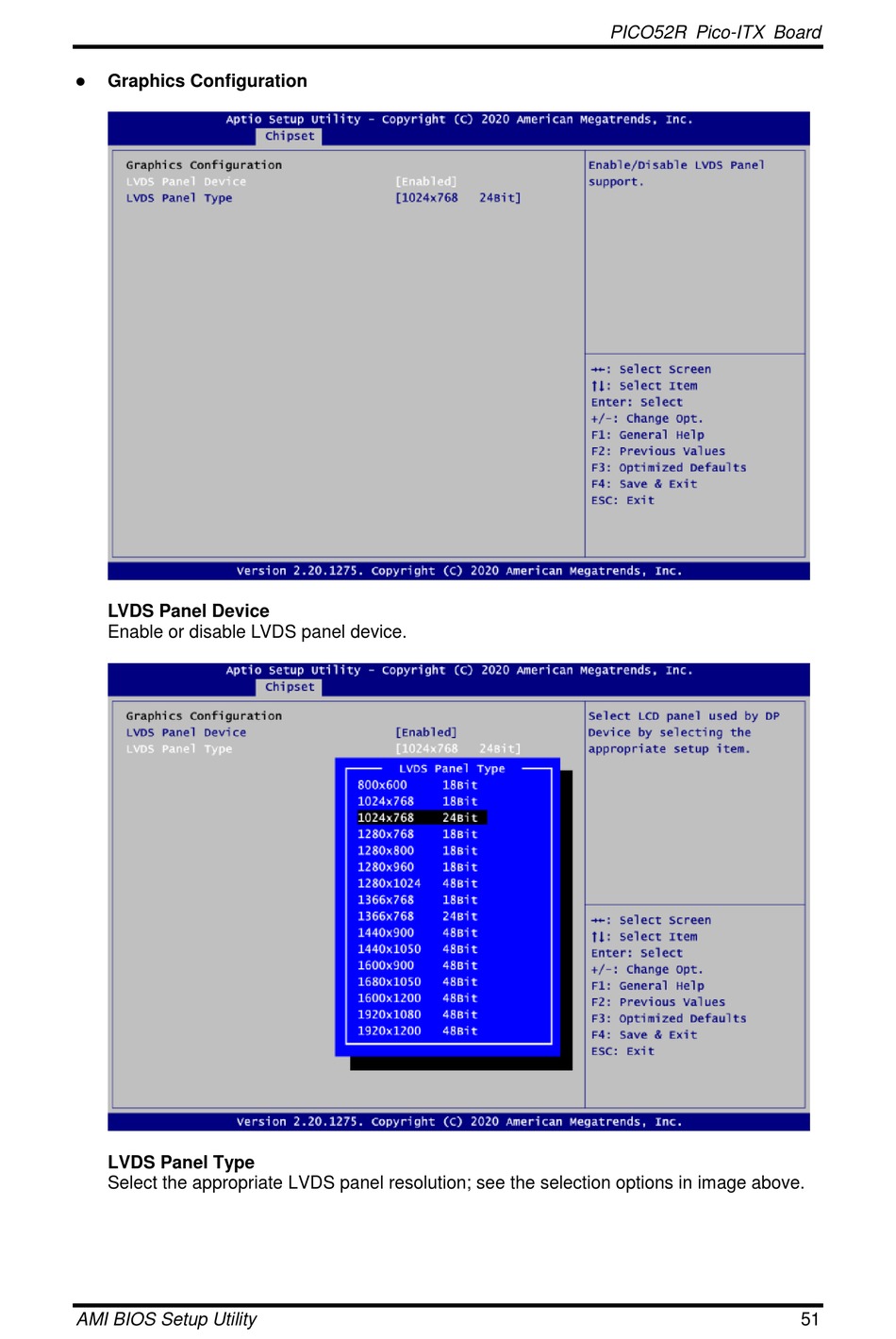

Graphics Configuration
LVDS Panel Device
Enable or disable LVDS panel device.
LVDS Panel Type
Select the appropriate LVDS panel resolution; see the selection options in image above.
AMI BIOS Setup Utility
51
