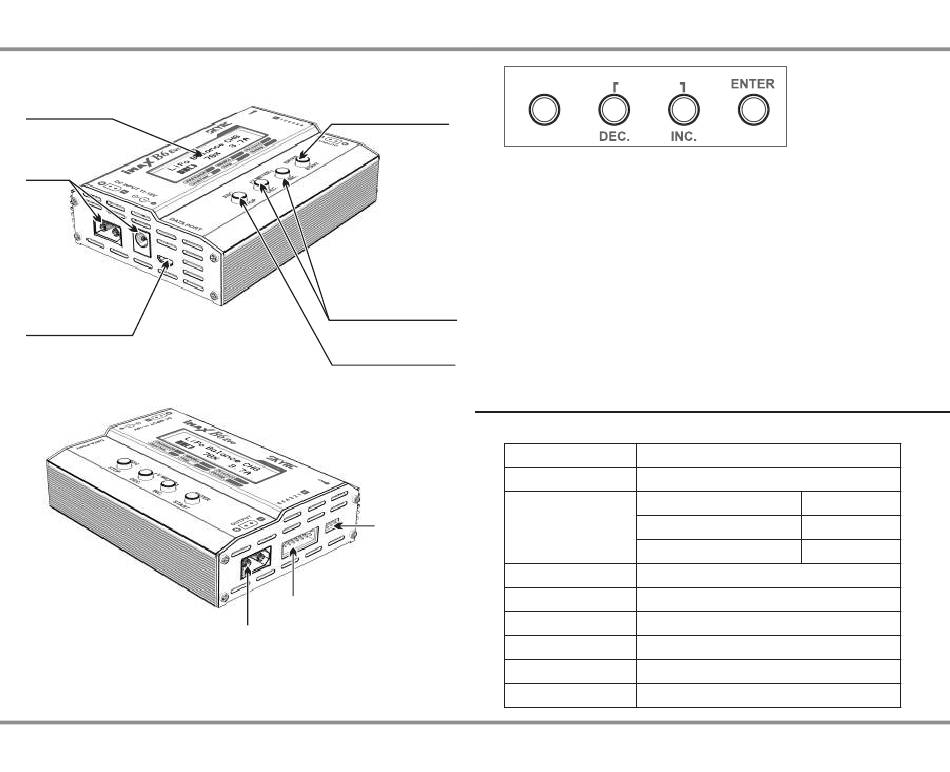

Introduction

LCD Display
DC Input
11-18V
Micro USB Port
· 02
Start Charge
Process
Scroll Through
the Main Menu,
Alter Values
See the Status
of Individual Cell
Stop Any Charge
Processes
Temperature
Sensor Port
Balance Lead Socket
Output Socket
ESC
STOP
ESC/STOP Button:
Stop current process or go back to previous step/screen.
DEC Button:
Go through the menu or decrease the parameter value.
INC Button:
Go through the menu or increase the parameter value.
ENTER/START Button:
Confirm the setting or start the process.
DEC+INC Button:
Check the battery voltage.
ESC+DEC Button:
Enter into user calibration interface.

Specifications

Input Voltage
Charge Wattage
Battery Types/Cells
Charge Current:
Discharge Wattage
Discharge Current
Balance Current
Case Size
Weight
B6 Evo B6 Evo
V METER
START
DC 11-18V
60W
LiPo/LiHV/LiFe/LiIon
NiMH/NiCd
Pb
0.1A-6.0A
5W
0.1A- .0A 1
Max 300mA/cell
115x84x31mm
238g

Buttons

1-6cells
1-15cells
6V/12V
