Power and Battery Connection

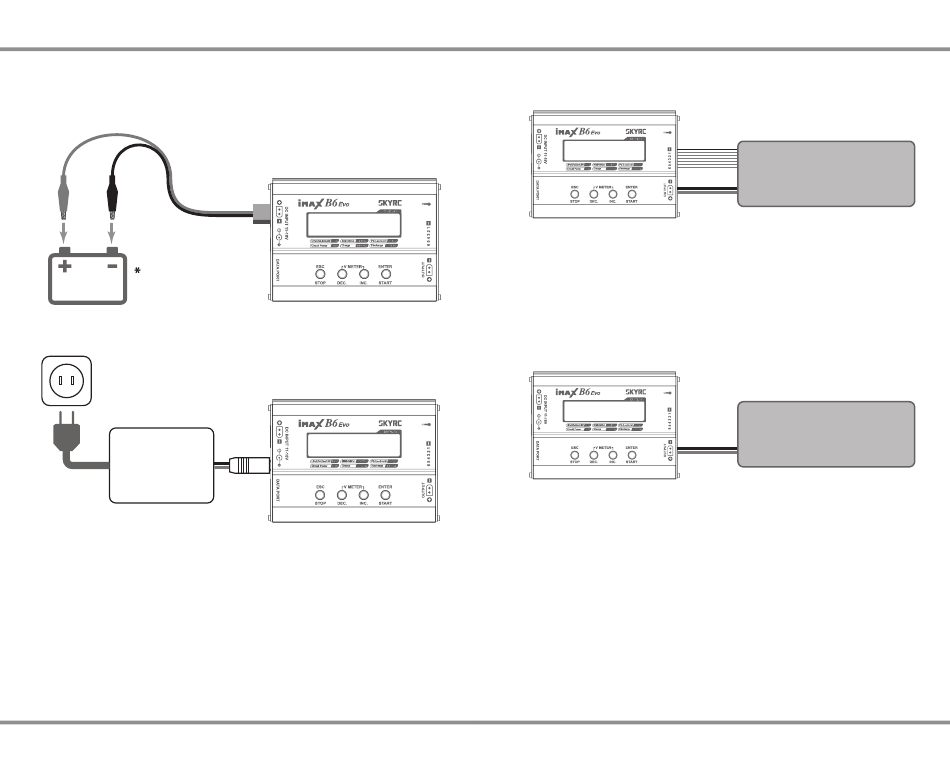

1. Connecting to power source
12V DC Battery / Power Adapter Output DC 11-18V
4S LiPo Battery Pack
or 12V Pb Battery
11-18V
Adapter
· 08
2. Connecting the battery
1) Lithium Battery Connection
Always remember to connect in the correct polarity. And it is highly
recommended to charge your Lithium battery in balance mode for
better performance and safety reasons.
Please refer to the above wiring diagram, which shows the correct
way for Lithium battery connection in the balance charge mode.
2) NiMH/NiCd or Pb Battery Connection
B6 Evo B6 Evo
Power and Battery Connection
Lithium Battery Pack
NiMH Battery Pack
09 ·
