Skyrc T100 Instruction Manual

Ac dual balance charger
Hide thumbs

Advertisement

Quick Links

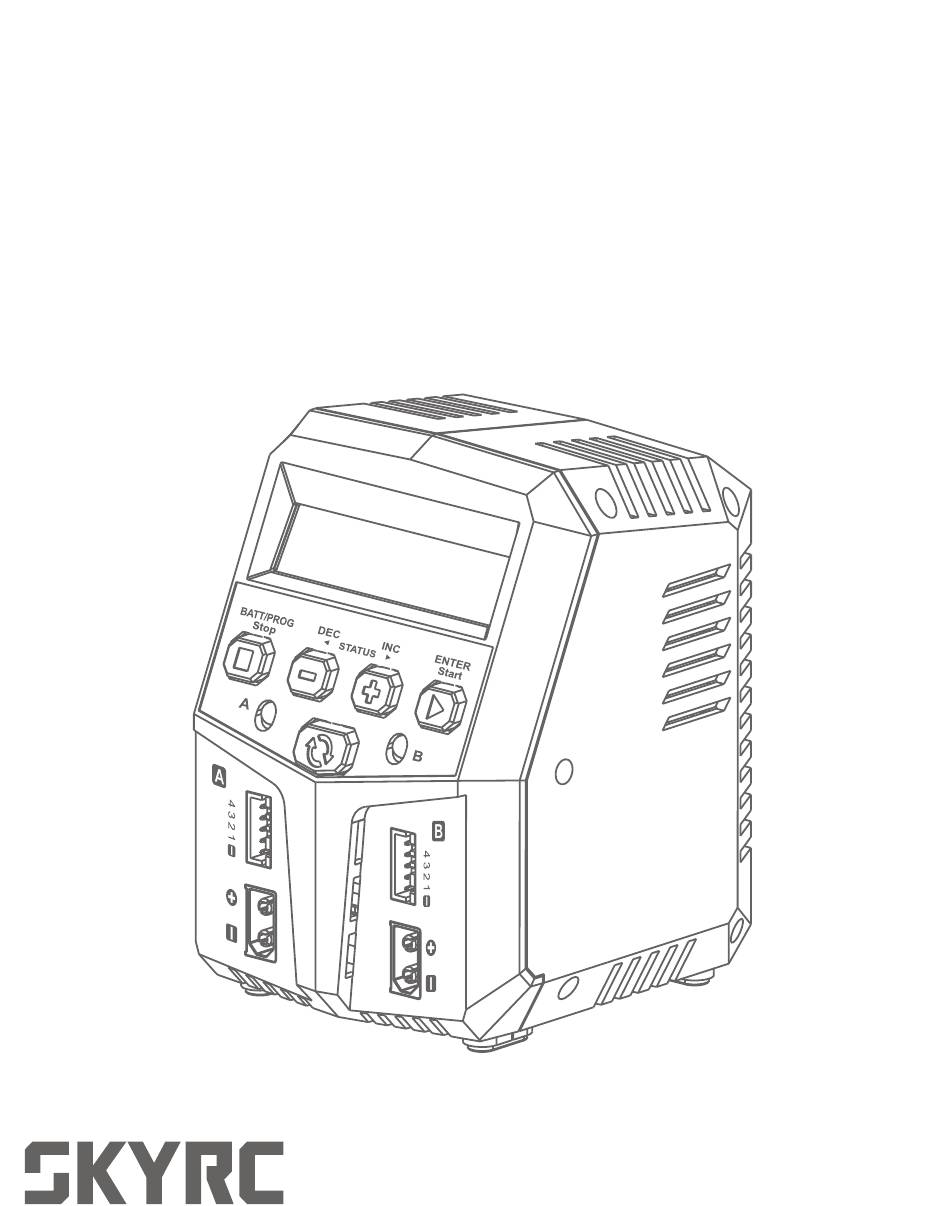

T100
AC Dual Balance Charger

Instruction Manual

[
]
Version 1.0

Advertisement

loading

  Related Manuals for Skyrc T100

  Summary of Contents for Skyrc T100

  • Page 1: Instruction Manual

    T100 AC Dual Balance Charger Instruction Manual Version 1.0...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION SPECIAL FEATURES WARNING AND SAFETY NOTES PROGRAM FLOW CHART EXPLANATION OF BUTTONS BATTERY & POWER SUPPLY CONNECTIONS LITHIUM BATTERY PROGRAM (LIPO/LIFE/LILON/LIHV) NIMH/NICD BATTERY PROGRAM PB LEAD-ACID BATTERY PROGRAM BATTERY MEMORY SET AND CALL OUT SYSTEM SETTING BATTERY METER BATTERY RESISTANCE METER WARNING AND ERROR MESSAGE...
  • Page 3: Introduction

    Congratulations on your choice of SkyRC T100 AC Dual Balance Charger. This unit is simple to use, but the operation of a sophisticated automatic charger such as SkyRC T100 does require some knowledge on the part of the user. These operating instructions are designed to ensure that you quickly become familiar with its functions.
  • Page 4 Charge Processes Stop Any Charge Processes LED Indicator Alter Values See the Status of Individual Cells in Balance Charge Mode Balance Lead Socket Switch From Channel A to B or Output Socket Vice Versa AC Input 100-240V · 02 T100...
  • Page 5: Special Features

    SkyRC T100 employs an individual-cell-voltage balancer. It isn't necessary to connect an external balancer for balance charging. Adaptable to Various Type of Lithium Battery SkyRC T100 is adaptable to various types of lithium batteries, such as LiPo, LiIon, LiFe and the new LiHV batteries. Balance and Storage Mode of Lithium Battery Function of the two modes differs from each other.
  • Page 6 You can also limit the maximum process time to avoid any possible defect. Battery Icon & Percentage of Charge Display It's more intuitive to indicate the current real-time battery power with the battery icon and percentage of charge. · 04 T100...
  • Page 7: Warning And Safety Notes

    0.1-1.1V/cell 0.1-1.1V/cell 1.8V/cell 3.0-3.3V/cell 2.9-3.2V/cell 2.6-2.9V/cell 3.1-3.4V/cell Voltage Be very careful to choose the correct voltage for different types of battery otherwise you may cause damage to the batteries. Incorrect settings could cause the cells to fire or explode. T100 05 ·...
  • Page 8 Always refer to the manual by battery manufacturer about charging methods, recommended charging current and charging time. Especially, the lithium battery should be charged according the charging instruction provided by the manufacturer strictly. · 06 T100...
  • Page 9 In the parallel connection, the battery s capacity is calculated by multiplying single battery capacity by the number of cells with total voltage stay the same. The voltages imbalance may cause fire or explosion .Lithium battery is recommended to charge in series. T100 07 ·...
  • Page 10: Program Flow Chart

    START ENTER Pb NORMAL CHG [ BATT MEMORY 3 ] ENTER CHARGER [ BATT MEMORY 3 ] SAVE PROGRAM 2.0A 6.0v 6.0V LOAD…… C:2.0A SAVE…. STARG/ENTER>3 Seconds Pb AGM CHG Pb COLD CHG 2.0A 6.0V 2.0A 6.0V · 08 T100...
  • Page 11: Explanation Of Buttons

    If you are charging a battery identical to the last one used and want to perform the same process then simply press the start to begin that process. T100 09 ·...
  • Page 12: Battery & Power Supply Connections

    Take care to maintain correct polarity. (See the wiring diagram above) This diagram shows the correct way to connect your battery to the SkyRC T100 when charging in the balance charge program mode. Battery...
  • Page 13: Lithium Battery Program (Lipo/Life/Lilon/Lihv)

    Recalling a battery's memory number makes the charger instantly ready to go! (2)The other method is by manually setting up the charge process each time. The T100 is capable of the following processes: The following steps describe how to manual setup the T100 3.
  • Page 14 2 . 0 A 1 1 . 1 V ( 3 S ) Final voltage when the program ends. Safety timer ON and duration of time in minutes. Capacity cut-off ON and the setting value of capacity. · 12 T100...
  • Page 15: Program Stop

    This mode is for charging Pb battery in cold days when the temperature is COLD CHG 5 ℃ to -20 ℃. Please scan and watch the tutorial video about how to charge LiPo Video battery in balance mode. Tutorial T100 13 ·...
  • Page 16: Nimh/Nicd Battery Program

    Re-Peak charge modes for NiMH/NiCd batteries. Selecting the Battery Type: After powering on the T100, press the INC or DEC button repeatedly until you reach the appropriate program for the battery type you wish to charge. For this example we have chosen the“NiMH BATT“...
  • Page 17 A five-minute cool-down delay occurs after each re-peak charge. IN RE-PEAK MODE, THE T100 USES THE CHARGE AMPERAGE AND VOLTAGE SETTINGS ENTERED IN CHARGE MODE. After selecting the correct battery type, use the INC or DEC NiMH RE-PEAK button to select the “RE-PEAK”...
  • Page 18: Pb Lead-Acid Battery Program

    PB LEAD-ACID BATTERY PROGRAM Additional NiMH/NiCd Process Information: During the NiMH/NiCd battery charging process the T100 can display avariety of information. Using the INC or DEC buttons, you can also view the following. information: Delta Peak Voltage NiMH Sensitivity 12.56V Sensitivity setting D.Peak 4mV/CELL...
  • Page 19 P-6 1.5A 13.56V following real-time information: battery type, charging CHG 002:22 00106 current, battery voltage, working mode, elapsed time and charged capacity. When charging is complete, the screen will read “FULL” and the charger will emit a ringing sound. T100 17 ·...
  • Page 20 CHG 002:22 00106 current, battery voltage, working mode, elapsed time and charged capacity. When charging is complete, the screen will read “FULL ” and the charger will emit a ringing sound. · 18 T100...
  • Page 21: Battery Memory Set And Call Out

    T V C = Y O U R R I S K Set the terminal voltage(4.18-4.25V). 4 . 2 0 V DEC INC S A V E P R O G R A M Press ENTER to save program. E N T E R START/ENTER T100 19 ·...
  • Page 22 2. Battery Memory Call Out L i P o B A L A N C E Press START/ENTER for 3 seconds to start the process. 4 . 9 A 7 . 4 V ( 2 S ) · 20 T100...
  • Page 23: System Setting

    C a p a c i t y C u t - O f f voltage is not detected nor the safety 5 0 0 0 m A H timer expired by any reason, this feature 100-50000 mAh) will automatically stop the process at the selected capacity value. T100 21 ·...
  • Page 24 L o a d F a c t o r y S e t to load the factory default settings. ENTER It indicates the hardware and firmware V e r s i o n version. H W : 1 . 0 0 S W:1 . 1 0 T100 · 22...
  • Page 25: Battery Meter

    0.0 00 V The display indicates the total voltage, the highest M A I N 1 6 . 7 6 V and the lowest voltage. H 4 . 2 0 0 V L 4 . 1 8 2 V T100 23 ·...
  • Page 26: Battery Resistance Meter

    B A T T R E S I S T A N C E Start Enter 12.8 m Ω The display indicates each cell's resistance. 0.0 m Ω m Ω T O T A L : 19.5 The display indicates the total resistance. · 24 T100...
  • Page 27: Warning And Error Message

    Voltage of the battery pack is lower than 5V. This charger C O N T R O L F A I L can not charge battery whose voltage under 5V. CEL L E RRO R The cell number is wrong. T100 25 ·...
  • Page 28: The Set Contains

    THE SET CONTAINS THE SET CONTAINS 1. SkyRC T100 Charger 2. Power Cord · 26 T100...
  • Page 29: Specification

    Charge Current: 0.1A-5.0A Safety Timer: 1-170minutes & OFF Charge Wattage: 50Wx2 Max Balance Cells: 2-4 cells Memory: 10 different charge profiles Charge Method: CC/CV for Lithium batteries. Delta-peak Sensitivity for NiMH/NiCd batteries. CC/CV and float charge for PB batteries. T100 27 ·...
  • Page 30: Conformity Declaration

    CONFORMITY DECLARATION SkyRC T100 satisfy all relevant and mandatory EC directives and FCC Part 15 Subpart B Requirements for Household Appliances, electric EN 55014-1:2017 tools, and similar apparatus –Part 1: Emission Electromagnetic compatibility Requirements for Household Appliances, electric EN 55014-2:2015 tools, and similar apparatus –...
  • Page 31: Regulatory Information

    – Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC's RF exposure guidelines, this equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. T100 29 ·...
  • Page 32: Commonly Used Terms

    13.2 volts (4x3.3). If the nominal voltage of the battery is not printed on the battery's label, consult your battery manufacturer or supplier. Do not guess the rated voltage of battery. · 30 T100...
  • Page 33: Warranty And Service

    Liability exclusion This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated.
  • Page 34 Latest version can be downloaded from www.skyrc.com If you have any question about this document, please contact SkyRC by sending a message to info@skyrc.cn All Rights Reserved. All specifications and figures are subject to change without notice. Printed in China 2019.09...
