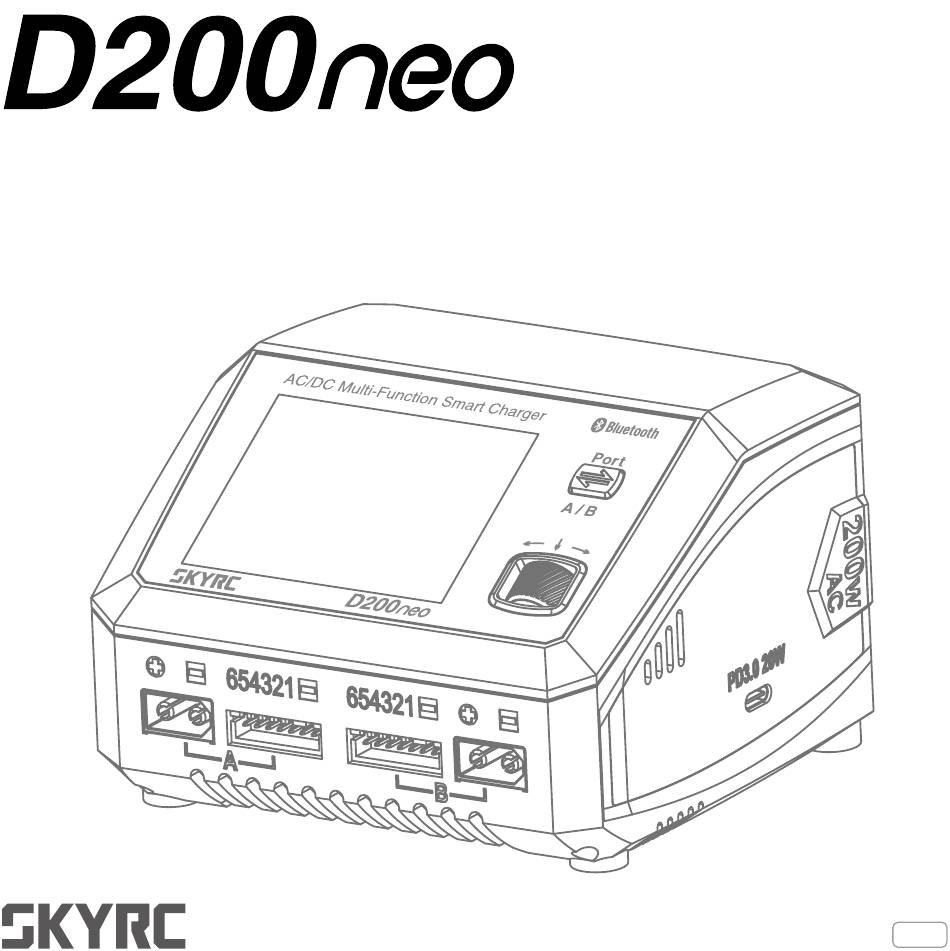

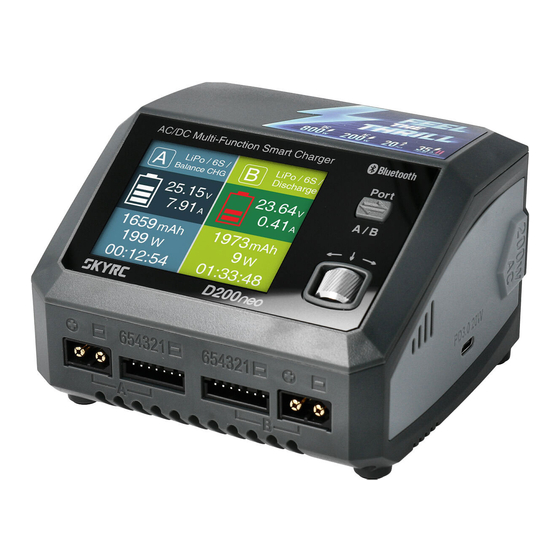

- Page 1 SKYRC D200 neo Instruction Manual AC/DC Multi-Function Smart Charger Instruction Manual SK-100196 V1.0 SKYRC D200 neo...
-
Page 2: Table Of Contents
SKYRC D200 neo Instruction Manual Introduction Package Chart Specification Warning Standard Battery Parameters Program Flow Chart Explanation of Buttons Power and Battery Connection Charger Operation Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) Parallel Charge(LiPo/LiFe/Lilon/LiHV) NiMH/NiCd Battery Program Pb Lead-Acid Battery Program External Discharge Charger Master... -
Page 3: Introduction
SKYRC D200 neo Instruction Manual Introduction Congratulations on your choice of SkyRC D200 neo AC/DC Multi-Function Smart Charger. As an update version of D200, this charger will take you on an exciting and delightful journey in the world of model aircraft. -
Page 4: Chart
SKYRC D200 neo Instruction Manual Chart Switch Between Port A and B LCD Display Scroll to select the parameters and start the process XT60 Output Socket Ty p e - C P D / Q C 3 . 0 Output Port... - Page 5 SKYRC D200 neo Instruction Manual Item Option Specification 200W MAX Charge Power 400W*2 MAX Main port 10W*2 Discharge Power Balance port 37W MAX External discharge 350W MAX LiPo/LiFe/LiIon/LiHV/ 0.1-20.0A NiMH/NiCd/Pb Charge Current Parallel 20-35.0A LiPo/LiFe/LiIon/LiHV/ 0.1-2.0A NiMH/NiCd/Pb Discharge Current External Discharge 0.1-40.0A...
-
Page 6: Warning
SKYRC D200 neo Instruction Manual Warning D200 neo is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the charger by a person responsible for their safety. -
Page 7: Standard Battery Parameters
SKYRC D200 neo Instruction Manual Standard Battery Parameters LiPo Lilon LiFe LiHV NiMH NiCd Nominal voltage 3.7V/cell 3.6V/cell 3.3V/cell 3.8V/cell 1.2V/cell 1.2V/cell 2.0V/cell Max. charge 4.2V/cell 4.1V/cell 3.6V/cell 4.35V/cell 1.5V/cell 1.5V/cell 2.4V/cell voltage Storage voltage 3.8V/cell 3.7V/cell 3.3V/cell 3.85V/cell Allowable fast ≦... -
Page 8: Program Flow Chart
SKYRC D200 neo Instruction Manual Program Flow Chart LiPo / 6S / Balance CHG LiPo / 6S / Discharge CH B CHARGE SETTING 4.20V 4.04V Battery Type LiPo 25.15 24.30 4.20V 4.04V Battery Cell 2S(7.4V) 7.91 0.41 4.20V 4.04V Task Balance CHG 4.20V... - Page 9 SKYRC D200 neo Instruction Manual CH A CHARGE SETTING CH A CHARGE SETTING CH A CHARGE SETTING Battery Type Battery Type Battery Type LiPo LiPo LiPo Battery Cell 6S(22.2V) Battery Cell 6S(22.2V) Battery Cell 6S(22.2V) Balance CHG Balance CHG Balance CHG...
-
Page 10: Explanation Of Buttons
SKYRC D200 neo Instruction Manual Explanation of Buttons Port Swtich Button Switch Between Port A and B Short-press to exit the system setting interface Scroll Button Short-press to enter the menu or confirm the setting Scroll to select the menu or parameters... -
Page 11: Power And Battery Connection
SKYRC D200 neo Instruction Manual Power and Battery Connection 1. Connecting to power source There are two options of inputs for SKYRC D200 neo, DC 10-30V and AC 100-240V. AC 100-240V power source connection. 12V DC Battery / DC power supply connection. -
Page 12: Charger Operation
SKYRC D200 neo Instruction Manual 2) NiMH/NiCd or Pb Battery Connection Charger Operation Depending on battery type, different operations will be available. This chart shows which operations are available for the different types of batteries the D200 neo is capable of working with. - Page 13 SKYRC D200 neo Instruction Manual Battery Working Description Type Mode This mode is to charge the NiMH/NiCd battery based on the charging rate Charge selected. In re-peak charge mode, the charger can peak charge the battery twice in Re-Peak a row automatically. This is good for confirming the battery is fully charged.
-
Page 14: Lithium Battery Program(Lipo/Life/Lilon/Lihv)
SKYRC D200 neo Instruction Manual Lithium Battery Program(LiPo/LiFe/Lilon/LiHV) The following flowchart is a reference to set the program manually. ENTER Charge Setting Condition Select CH A CHARGE SETTING CH A CHARGE SETTING Battery Type LiPo Battery Type LiPo 4.18V Scroll to Condition, call out the... -
Page 15: Parallel Charge(Lipo/Life/Lilon/Lihv)
SKYRC D200 neo Instruction Manual Parallel Charge(LiPo/LiFe/Lilon/LiHV) • The Parallel mode is available only for lithium batteries, which cannot be used for other types of batteries. • To avoid short circuits, always connect the charge leads to the charger first, and then to the battery. -
Page 16: Nimh/Nicd Battery Program
SKYRC D200 neo Instruction Manual NiMH/NiCd Battery Program ENTER Charge Setting Condition Select CH A CHARGE SETTING CH A CHARGE SETTING Battery Type NiMH Battery Type NiMH -3mV On the main interface, press the Scroll to Condition, call out the Battery Cell 6S(7.2V) -
Page 17: Pb Lead-Acid Battery Program
SKYRC D200 neo Instruction Manual Pb Lead-Acid Battery Program ENTER Charge Setting Condition Select CH A CHARGE SETTING CH A CHARGE SETTING Battery Type NiMH Battery Type On the main interface, press the Scroll to Condition, call out the Battery Cell 6S(12.0V) -
Page 18: External Discharge
SKYRC D200 neo Instruction Manual External Discharge D200 neo is capable of external discharge. A discharge current of 40.0A can be reached with BD350 discharger connected. 1. Upon connecting the power supply, D200 neo automatically powers up and enters the main interface;... -
Page 19: Charger Master
SKYRC D200 neo Instruction Manual 4. Select the battery type, battery cells, discharge program, cut-off voltage, and discharge current; 5. Start the program after setting up. Notice: • BD350 discharger is not included and must be purchased separately. • External discharge is available only on Port A;... -
Page 20: Battery Analyzer
SKYRC D200 neo Instruction Manual Battery Analyzer D200 neo is capable of analyzing the battery performance with BD350 discharger connected, helping players choose a more suitable battery for competitions and gain better achievements. 1. Launch the Charger Master and select Battery Analyzer on the top left;... -
Page 21: Skycharger App Control
SKYRC D200 neo Instruction Manual SkyCharger app Control The charger has a built-in Bluetooth 5.0 module, allowing users to easily control the D200 neo charger and analyze the battery through the SkyCharger app. Even when you are racing outside, you can test and check the battery performance curve anytime and anywhere. -
Page 22: Pch-150 Power & Charging Hub
SKYRC D200 neo Instruction Manual PCH-150 Power & Charging Hub The PD Charging Board can power several mobile devices simultaneously with the output power up to 100 watts when connecting with the charger. Press and hold the Scroll button for three seconds to enter the system setting, select the Power for PD Hub-B menu and short press the Scroll button to activate it. -
Page 23: Charging Settings
SKYRC D200 neo Instruction Manual Charging Settings On the main interface, press the Scroll button to enter charging settings, in which you can switch A/B ports by pressing the Port button. Menu Definition Select your desired battery type. (LiPO, LiIon, LiFe, LiHV, Pb, NiMH,... -
Page 24: System Setting
SKYRC D200 neo Instruction Manual System Setting On the main interface, hold the Start button for seconds to enter the system setting. Menu Option Definition Safety Timer Customize a period for program protection. Max.Capacity Customize the protection of capacity. Task Parameters Trickle Charge Enable/disable trickle charge. - Page 25 A/ Back Back to the previous interface. Power for Tire Activate to power SkyRC Tire Warmer on port A Warmer- A Power for PD Activate to power SkyRC PD Hub on Port B Hub - B Measure the battery voltage and internal resistance.
-
Page 26: Errors And Warnings
SKYRC D200 neo Instruction Manual Errors and Warnings In the event of a fault, the charger will display an error message and sound an alarm. Error Message Explanation Error: DC Input Low! DC input voltage is lower than preset! Error: DC Input High! -
Page 27: Firmware Upgrade Notice
SKYRC D200 neo Instruction Manual Firmware Upgrade Notice To recover from a firmware upgrade failure, please follow these steps: 1. Press and hold the Scroll button, then connect the power cord; D200 neo will power on with a blue screen notice. -
Page 28: Optional Parts
SKYRC D200 neo Instruction Manual Optional Parts BD350 Discharger PCH-150 Charging Board SK-600147-01 SK-600148-01 XT60 XT60 XT60 XT60 XT60 Parallel Charging Cable Pro Parallel Charging Cable SK-600023-19 SK-600023-20 SKYRC D200 neo... -
Page 29: Conformity Declaration
SKYRC D200 neo Instruction Manual Conformity Declaration SKYRC D200 neo... -
Page 30: Warranty And Service
This charger is designed and approved exclusively for use with the types of battery stated in this Instruction Manual. SkyRC accepts no liability of any kind if the charger is used for any purpose other than that stated. We are unable to ensure that you follow the instructions supplied with the charger, and we have no control over the methods you employ for using, operating, and maintaining the device. - Page 31 SKYRC D200 neo Instruction Manual SKYRC D200 neo...
- Page 32 SKYRC D200 neo Instruction Manual The manual is subject to change without notice; please refer to our website for the latest version! Manufactured by SKYRC TECHNOLOGY CO., LTD. www.skyrc.com 2022 SkyRC Trchnology Co., Ltd. All Rights Reserved [Version 1.0] SKYRC D200 neo...
