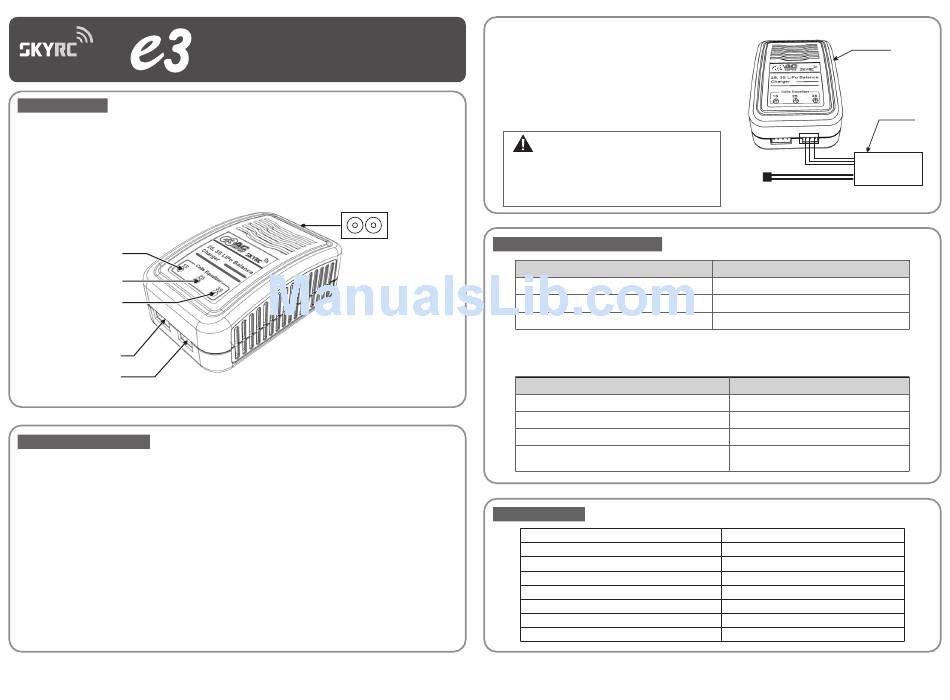

Skyrc e3 Instruction Manual

Ver. 2

INTRODUCTION

Thank you for your choice of the SKYRC e3, 100-240V AC balance charger. This unit is simple to use but
its operation does require some knowledge on the part of the user. Please read this entire operating
manual completely and attentively before using this product, as it covers a wide range of information on
operating and safety.

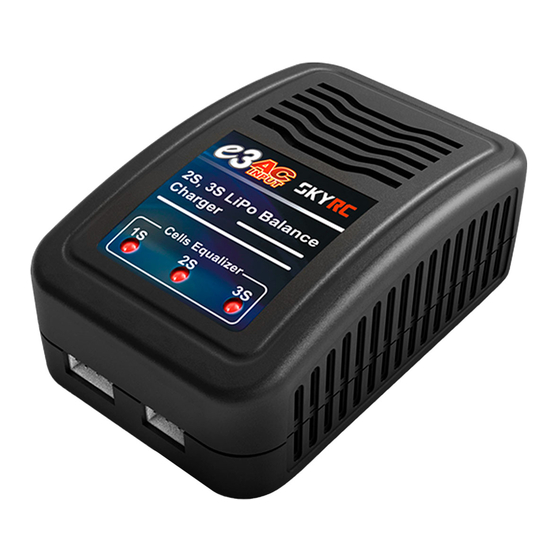

SKYRC e3 Charger is an economic, high quality 100-240V AC balance charger, designed for charging
LiPo batteries from 2-3 cells in balance mode. The circuit power is 11W and max charge current can
reach to 1.5A.
Cell 1 LED Indicator
Cell 2 LED Indicator
Cell 3 LED Indicator
3-Cell Balance Port
2-Cell Balance Port

CHARGE PROCEDURES

SKYRC e3 comes with the built in power supply. You can connect the AC power cord to the AC socket
(100-240V AC) directly.
Please refer to following steps to charge the battery,
1) Insert the AC power cord into the charger.
Insert the AC cord into a wall socket (100-240V). All LEDs will light green and flash red to indicate the
2)
charger is ready to charge.
3) Connect battery balance wire to balance port which is in front side of the charger, after 2 seconds, the
charger detects the voltage of the battery and starts to charge.
4) The charger starts charging. The LEDs will glow constant red. If the battery pack is 2-cell, Cell 1 and
Cell 2 LEDs will glow constant red; if the battery pack is 3-cell, Cell 1, Cell 2 and Cell 3 LEDs will glow
constant red.
5) When a cell is completely charged, its corresponding LED will glow constant green. A 2-cell pack is
fully charged when LEDs 1 and 2 are constant green. For 3-cell pack, all LEDs will glow constant
green to indicate the pack is fully charged.
6) Unplug the battery from the charger and the charge status LED will stay green and flash red which
indicates the charger is ready to charge another battery.
INSTRUCTION MANUAL
SK-100081
- 1 -
Remark:
1 If you unplug the battery while charging, the
charger will stop charging automatically and
enter into standby status.
2 If the charger encounters overload or short
circuit while charging, the charger will stop
charging and three LEDs will flash red.
CAUTION:
This diagram shows the correct way to connect your
battery to the e3 charger while charging in balance
mode.
Failure to connect as shown in this diagram will
damage this charger.
AC 100-240V
Power Jack

EXPLANATION OF LED STATUS

LED stays green and flashes red.
LED glows constant red.
LED glows constant green.
* Error Message
If the charger encounters a problem, all LEDs will flash red to alert you the errors. In this case,
please disconnect the power cord from the wall socket and unplug the battery from the charger.
All LEDs flashes red once and stop 1 second in cycle.
All LEDs flashes red twice and stop 1 second in cycle.
All LEDs flashes red four times and stop 1 second in cycle.
All LEDs flashes red six times and stop 1 second in cycle.

SPECIFICATION

AC Input
Battery Type
Cell Count
Charge Current
Cell Terminate Voltage
Circuit Power
Dimension
Weight
LED Indicator Charger Status
The charger is ready to charge.
The charger is charging.
The charging process finishes.
LED Indicator
The battery connects incorrectly.
The charger encounters overload or short circuit.
The voltage of single cell is too high or too low.
There is a 300mv difference of voltage
between battery pack.
100-240V, 50-60Hz
LiPo
2-3 cells
1.5A ± 10%
4.2V ± 0.02V
11W ± 10%
88x57x35mm
103g
- 2 -
Charger
Battery

CONNECTION DIAGRAM

Cause of Error
Charger/Cell Status
