INSTRUCTIONS FOR INSTALLATION, OPERATION, AND MAINTENANCE
WARNING
TASK FORCE TIPS LLC
MADE IN USA · tft.com
©Copyright Task Force Tips LLC 2015-2020
Understand manual before use. Operation of this device without understanding the manual and
receiving proper training is a misuse of this equipment. Obtain safety information at tft.com/serial-
number.
This equipment is intended for use by trained and qualified emergency services personnel for
firefighting. All personnel using this equipment shall have completed a course of education
approved by the Authority Having Jurisdiction (AHJ).
This instruction manual is intended to familiarize firefighters and maintenance personnel with the
operation, servicing, and safety procedures associated with this product. This manual should be
kept available to all operating and maintenance personnel.

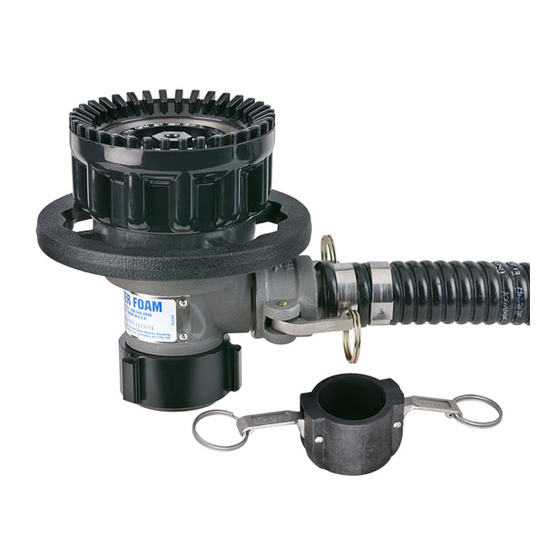

Master Foam Fixed GPM
Self-Educting Foam Nozzle Series
250, 350, 500, or 750 gpm
950, 1325, 1900, or 2900 l/min
Nominal Pressure:
Nominal Foam Percentages:
0.5%, 1%, 3%, or 6%
Nominal Pressure:
Nominal Foam Percentages:
Nominal Pressure:
Nominal Foam Percentages:
RC Fixed Flow Rate:
Nominal Pressure:
Nominal Foam Percentages:
1
Fixed Flow Rate:
100 psi (7bar)
Fixed Flow Rate:
1000 or 1250 gpm
3800 or 4800 l/min
100 psi (7bar)
1% or 3%
Fixed Flow Rate:
1500 or 2000 gpm
5700 or 7600 l/min
100 psi (7bar)
1% or 3%
1000 or 1250 gpm
3800 or 4800 l/min
1500 or 2000 gpm
5700 or 7600 l/min
100 psi (7bar)
1% or 3%
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
800-348-2686 · 219-462-6161 · Fax 219-464-7155
LIZ-030 October 29, 2020 Rev13
Advertisement
Table of Contents
Related Manuals for Task Force Tips Master Foam Series
Summary of Contents for Task Force Tips Master Foam Series
- Page 1 100 psi (7bar) Nominal Foam Percentages: 1% or 3% TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13...
- Page 2 6. Failure to follow these guidelines may result in death, burns or other severe injury. Fire and Emergency Manufacturers and Service Association FEMSA P.O. Box 147, Lynn eld, MA 01940 • www.FEMSA.org ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13...
- Page 3 Stream reach and height at non-optimal elevations can be estimated as a factor of the performance at the optimal 30° elevation. Refer to LIM-030 and LIM-035 for effective stream trajectories of Task Force Tips Masterstream nozzles at 30° elevation. This graph cannot be used to estimate maximum reach for elevation angles below 30°.
-
Page 4: Table Of Contents
6.1 FIXED FLOW 6.2 REACH AND TRAJECTORY 7.0 WARRANTY 8.0 MAINTENANCE 8.1 FIELD LUBRICATION 8.2 SERVICE TESTING 8.3 REPAIR 9.0 EXPLODED VIEWS AND PARTS LISTS 10.0 OPERATION AND INSPECTION CHECKLIST ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 5: Meaning Of Safety Signal Words
To prevent mechanical damage, do not drop or throw equipment. NOTICE ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 6: General Information
Understand manual before use Halo Ring Obtain safety information at tft.com/serial-number U.S. Patent # 6,102,308 Stream Shaper and Bumper Serial Number Coupling Baffle Foam Inlet Orifice Plate Figure 3.1A ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... - Page 7 Stream Shaper Serial Number Coupling Folding Handles Foam Inlet Baffle Orifice Plate Figure 3.1B Override Knob Electric Actuator (Masterfoam 1000, 1250, 1500 & 2000 only) Figure 3.1C ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13...
-
Page 8: Mechanical Specifications
Turning the shaper further forward will cause stream crossover and reduce the reach of the nozzle. NOTICE The widest pattern is useful for protection and cooling, but does not educt foam. NOTICE ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 9: Flushing Debris
After educting foam it is recommended that water be educted in through the concentrate hose and inlet. This will wash out foam concentrate residue in the hose, orifice plate, and nozzle passages. If not removed, any residue may dry and adversely affect the accuracy of proportioning. ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 10: Setting Foam Percentage
VARY BASED ON BRAND AND CONDITION OF FOAM. Figure 5.3A NOMINAL 6% AT 100 PSI NOMINAL 3% AT 100 PSI NOMINAL 1% NOMINAL 0.5% AT 100 PSI AT 100 PSI NOZZLE INLET PRESSURE (PSI) Figure 5.3B ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 11: Orifice Plate Calibration Information
1500 1600 1700 1800 1900 2000 2100 2200 2300 FLOW (gpm) OPERATING RANGE: BURST PRESSURE 150 psi (10.3 bar)MAXIMUM 1000 psi (68.9 bar) 50 psi (3.4 bar)MINIMUM Figure 6.1A ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... -
Page 12: Reach And Trajectory
Horizontal Distance (Meter) A= TFT MASTER FOAM 3% or 1% FOAM AT 750 GPM AND 100 PSI B= TFT MASTER FOAM WITH FOAMJET LX Horizontal Distance (Feet) Figure 6.2D ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13... - Page 13 • Trajectories shown are for water. The addition of foam is expected to decrease the reach by 10%. • Tail or head winds of 20 MPH (30 KPH) may increase or decrease the range approximately 30%. ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13...
-
Page 14: Warranty
WARRANTY Task Force Tips LLC, 3701 Innovation Way, Valparaiso, Indiana 46383-9327 USA (“TFT”) warrants to the original purchaser of its products (“equipment”), and to anyone to whom it is transferred, that the equipment shall be free from defects in material and workmanship during the five (5) year period from the date of purchase. -
Page 15: Maintenance
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts lists, exploded views, test procedures and troubleshooting guides. -
Page 16: 10.0 Operation And Inspection Checklist
Operating equipment that has failed the checklist is a misuse of this equipment. TASK FORCE TIPS LLC 3701 Innovation Way, Valparaiso, IN 46383-9327 USA 800-348-2686 · 219-462-6161 · Fax 219-464-7155 MADE IN USA · tft.com ©Copyright Task Force Tips LLC 2015-2020 LIZ-030 October 29, 2020 Rev13...
