INSTRUCTIONS FOR SAFE OPERATION AND MAINTENANCE
Read instruction manual before use. Operation of the Dual Flow LX Foam Nozzle without
WARNING
understanding the manual and receiving proper training can result in injury and is a misuse of
this equipment. This manual should be kept available to all operating and maintenance personnel.
TASK FORCE TIPS LLC
MADE IN USA • tft.com
©Copyright Task Force Tips LLC 2011-2019

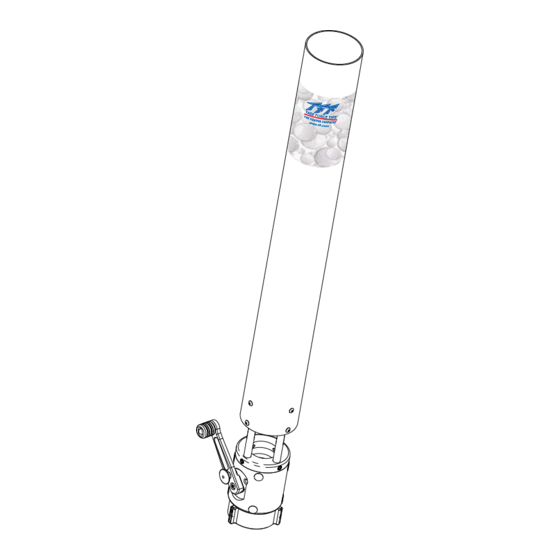

MANUAL: Dual Flow LX Foam Nozzle
WEIGHT
LENGTH
LOW FLOW SETTING
HIGH FLOW SETTING
MAX OPERATING PRESSURE
OPERATING TEMP RANGE
MONITOR COMPATIBILITY
MODEL
The member companies of FEMSA that provide emergency response
equipment and services want responders to know and understand the
following:
1. Firefi ghting and Emergency Response are inherently dangerous activities
requiring proper training in their hazards and the use of extreme caution
at all times.
2. It is your responsibility to read and understand any user's instructions,
including purpose and limitations, provided with any piece of equipment
you may be called upon to use.
3. It is your responsibility to know that you have been properly trained in
Firefi ghting and /or Emergency Response and in the use, precautions, and
care of any equipment you may be called upon to use.
4. It is your responsibility to be in proper physical condition and to maintain
the personal skill level required to operate any equipment you may be
called upon to use.
5. It is your responsibility to know that your equipment is in operable
condition and has been maintained in accordance with the manufacturer's
instructions.
6. Failure to follow these guidelines may result in death, burns or other
severe injury.
FEMSA
3701 Innovation Way, Valparaiso, IN 46383-9327 USA
MECHANICAL SPECIFICATIONS
US
24 lbs
5 ft
K=66
790 gpm @ 145 psi
K=132
1580 gpm @ 145 psi
200 psi
-25 to 135°F
MONSOON 2000 3.5" OUTLET
DANGER
PERSONAL RESPONSIBILITY CODE
Fire and Emergency Manufacturers and Service Association
P.O. Box 147, Lynnfi eld, MA 01940 • www.FEMSA.org
800-348-2686 • 219-462-6161 • Fax 219-464-7155
METRIC
11 kg
1.5 m
50 l/s @ 1000 kPa
3000 l/min @ 10 bar
100 l/s @ 1000 kPa
6000 l/min @ 10 bar
1400 kPa
14 bar
-32 to 57°C
FX100-NN
LIF-100 October 10, 2019 Rev01
