Backyard Discovery BEACH FRONT Owner's Manual & Assembly Instructions page 45

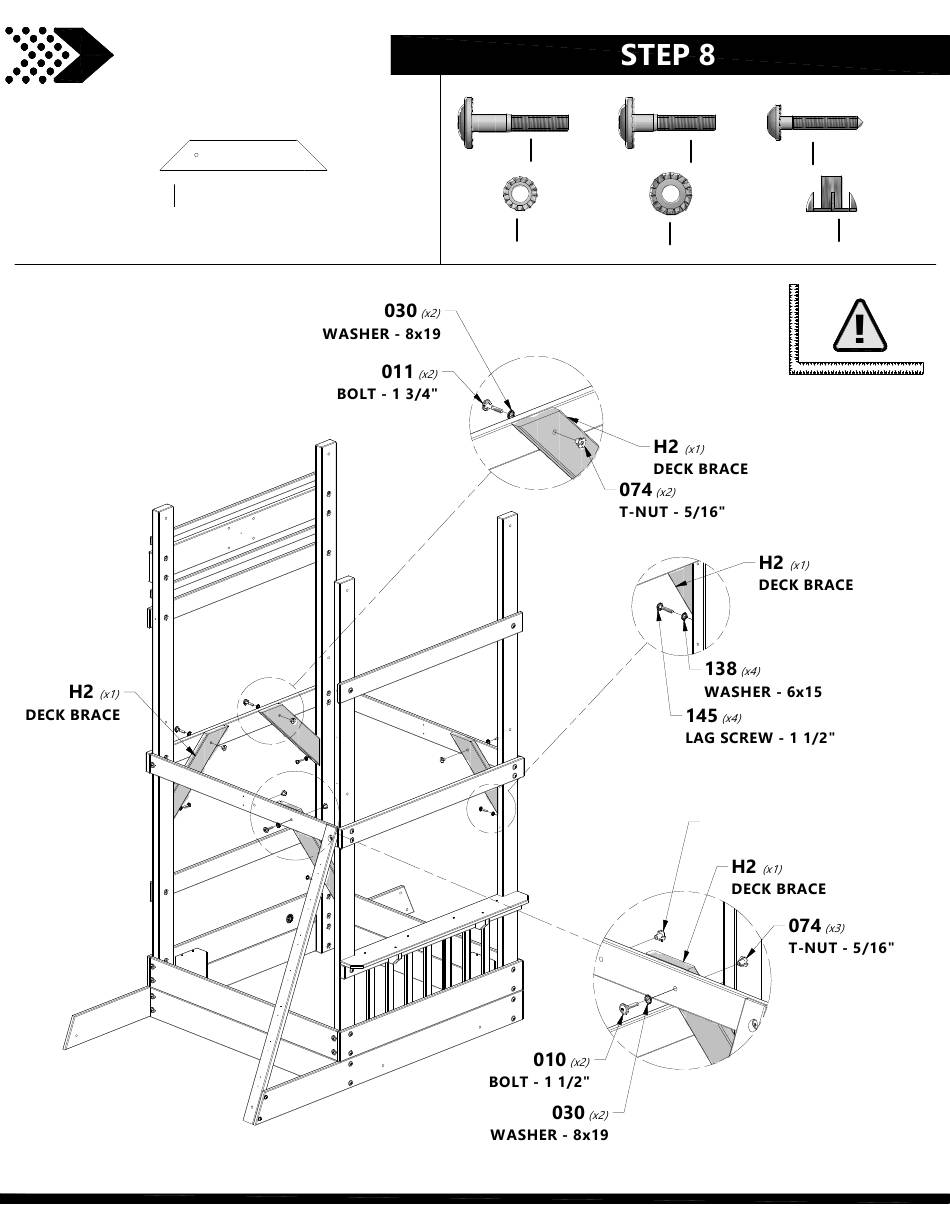

FORT ASSEMBLY
DECK BRACE - W4L06909
H2
1"x3 3/8"x18 3/4" (24x86x475)
(4)
H100011 BOLT WH
H100010
(2)
5/16x1 3/4
H100138 WASHER
H100030
(4)
LOCK EXT
(4)
6x15
45
BOLT WH
H100145 LAG SCREW WH
(2) 5/16x1-1/2
(4) 1/4x1 1/2
H100074
WASHER
(5)
LOCK EXT
8x19
SQUARE WHEN
PUTTING ON H2
BOARDS.
INSTALL T-NUT BEFORE
MOUNTING BOARD.
T-NUT
5/16
