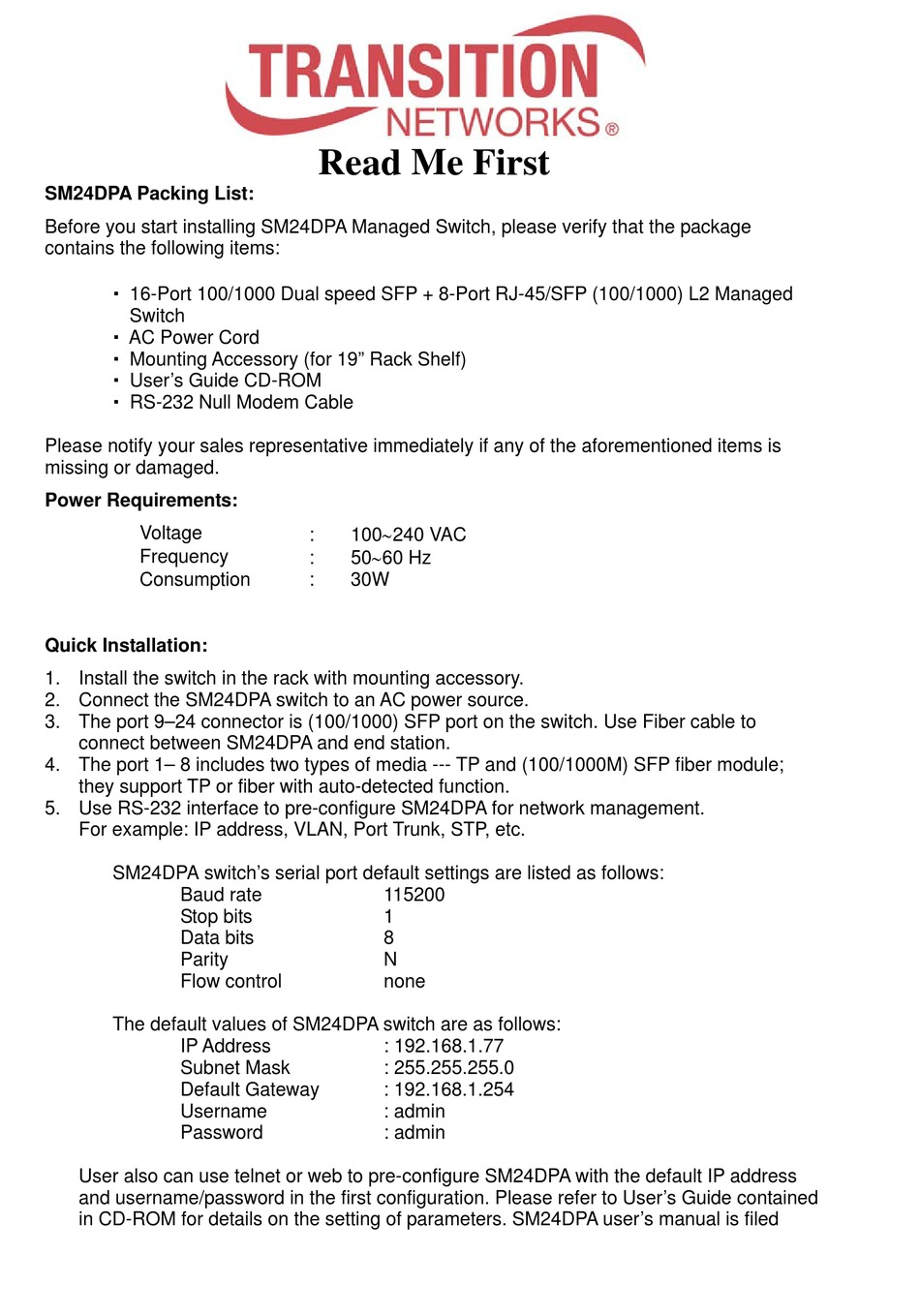

Transition Networks SM24DPA Read Me First

SM24DPA Packing List:

Before you start installing SM24DPA Managed Switch, please verify that the package
contains the following items:

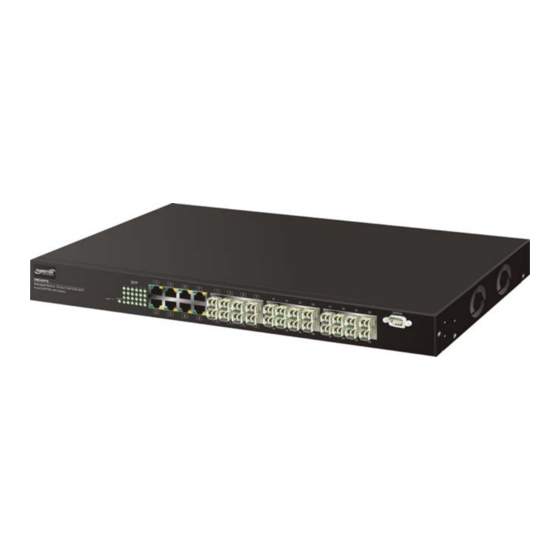

 16-Port 100/1000 Dual speed SFP + 8-Port RJ-45/SFP (100/1000) L2 Managed
Switch
 AC Power Cord
 Mounting Accessory (for 19" Rack Shelf)
 User's Guide CD-ROM
 RS-232 Null Modem Cable
Please notify your sales representative immediately if any of the aforementioned items is
missing or damaged.

Power Requirements:

Voltage
Frequency
Consumption

Quick Installation:

1. Install the switch in the rack with mounting accessory.
2. Connect the SM24DPA switch to an AC power source.
3. The port 9–24 connector is (100/1000) SFP port on the switch. Use Fiber cable to
connect between SM24DPA and end station.
4. The port 1– 8 includes two types of media --- TP and (100/1000M) SFP fiber module;
they support TP or fiber with auto-detected function.
5. Use RS-232 interface to pre-configure SM24DPA for network management.
For example: IP address, VLAN, Port Trunk, STP, etc.
SM24DPA switch's serial port default settings are listed as follows:
Baud rate
Stop bits
Data bits
Parity
Flow control
The default values of SM24DPA switch are as follows:
IP Address
Subnet Mask
Default Gateway
Username
Password
User also can use telnet or web to pre-configure SM24DPA with the default IP address
and username/password in the first configuration. Please refer to User's Guide contained
in CD-ROM for details on the setting of parameters. SM24DPA user's manual is filed
Read Me First
: 100240 VAC
: 5060 Hz
: 30W
115200
1
8
N
none
: 192.168.1.77
: 255.255.255.0
: 192.168.1.254
: admin
: admin
