SET COMMUNICATION:

This section define the fundamental communication parameters of two buses, DMX and PROFINET.
By Pressing the
"Set
Communication" button from the main window of SW674-A028 (Fig. 2) the
window "Set Communication" appears (Fig. 3).
The meaning of the fields of "PROFINET" are:
In the field
"IP
ADDRESS" the IP address of the PROFINET side of the converter is defined;
In the field
"SUBNET
defined;
In the field "GATEWAY" the default gateway of the network is defined. This feature can be
enabled or disabled pressing the Check Box field. This feature is used for going out of the net;
In the field "Port" the port used for PROFINET communication is defined (fixed to '34964');
In the field
"PROFINET Name of
defined.
The means of the fields for the "DMX" section are:
In the field "DMX" it is possible to define if the converter will act as DMX controller ("OUT") or
as DMX device ("IN");
In the field
"Channel
Number" the number of channels of the DMX side is defined (up to 496
channels).
ADFweb.com Srl – IT31010 – Mareno – Treviso
Mask" the SubNet Mask of the PROFINET side of the converter is
Station" the name to the PROFINET side of the converter is
User Manual DMX / PROFINET - Converter
Document code: MN674-A028_ENG

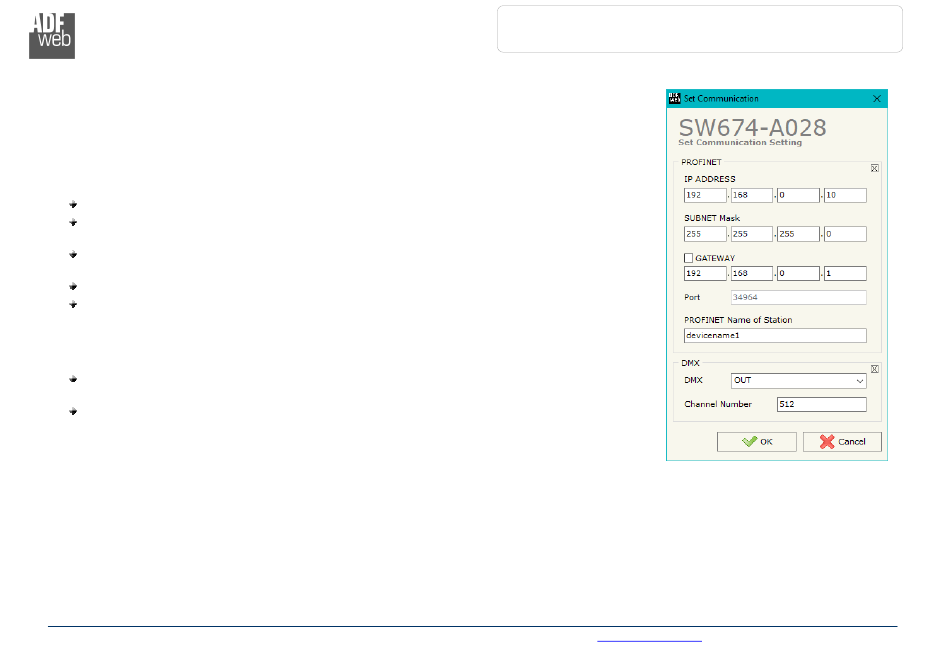

Figure 3: "Set Communication" window
