Wiring Combination
N.O.—COM
N.C.—COM
Lead Wire Connections for Water Sensor Cable
The E-LDA-LC2 can use the E-LDx-y sensor cables or any other similar sensing cables. Connect the cable as shown below:
Note: When used with the E-LD-LCx-y Low-Cost Liquid Detection sensor cable the maximum sensor cable length is
limited to 600 feet.
Alarm Condition
No alarm
Alarm
Lose power
No alarm
Alarm
Lose Power

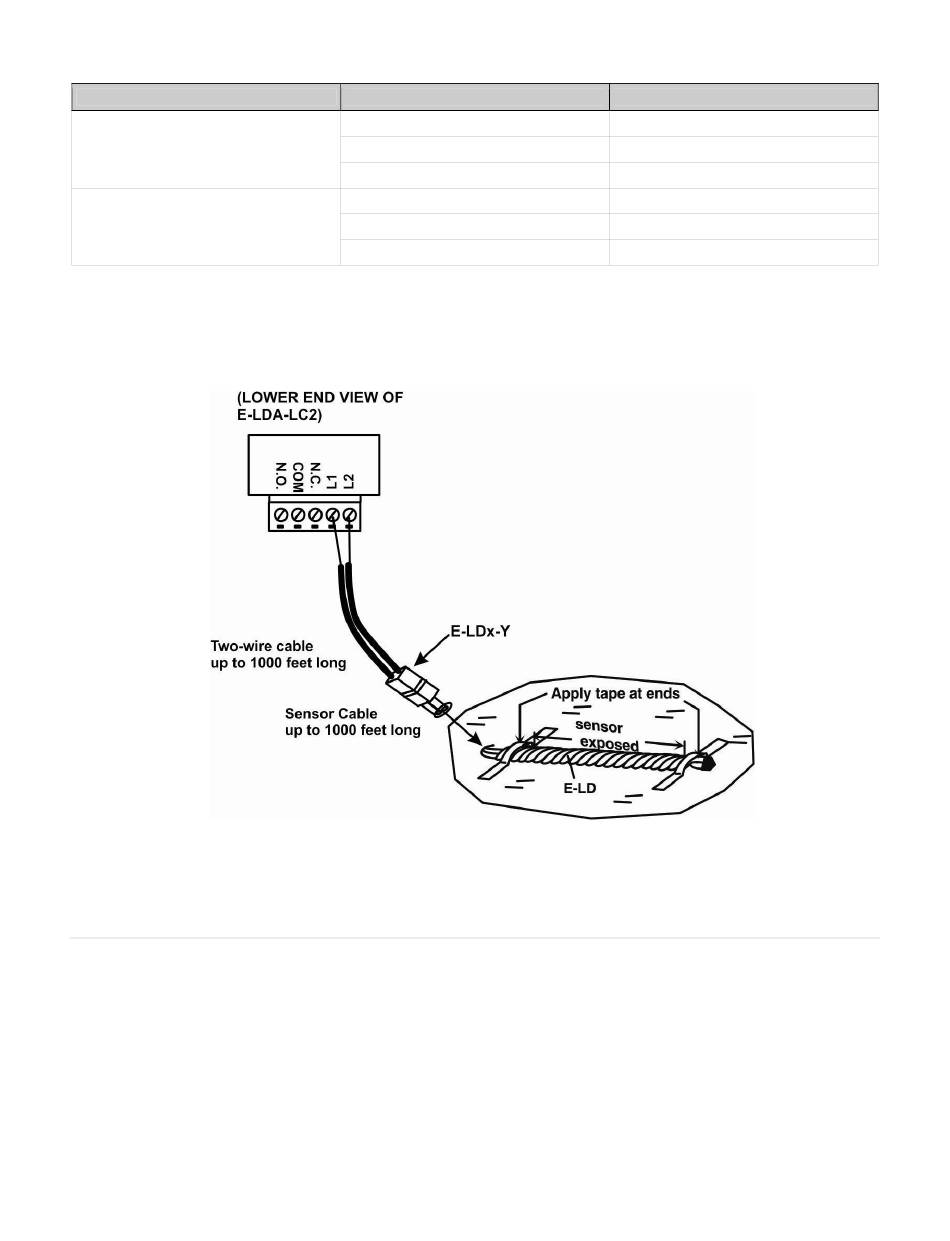

Figure 3: Connect sensing cable
Output State
Open
Closed
Open
Closed
Open
Closed
3
