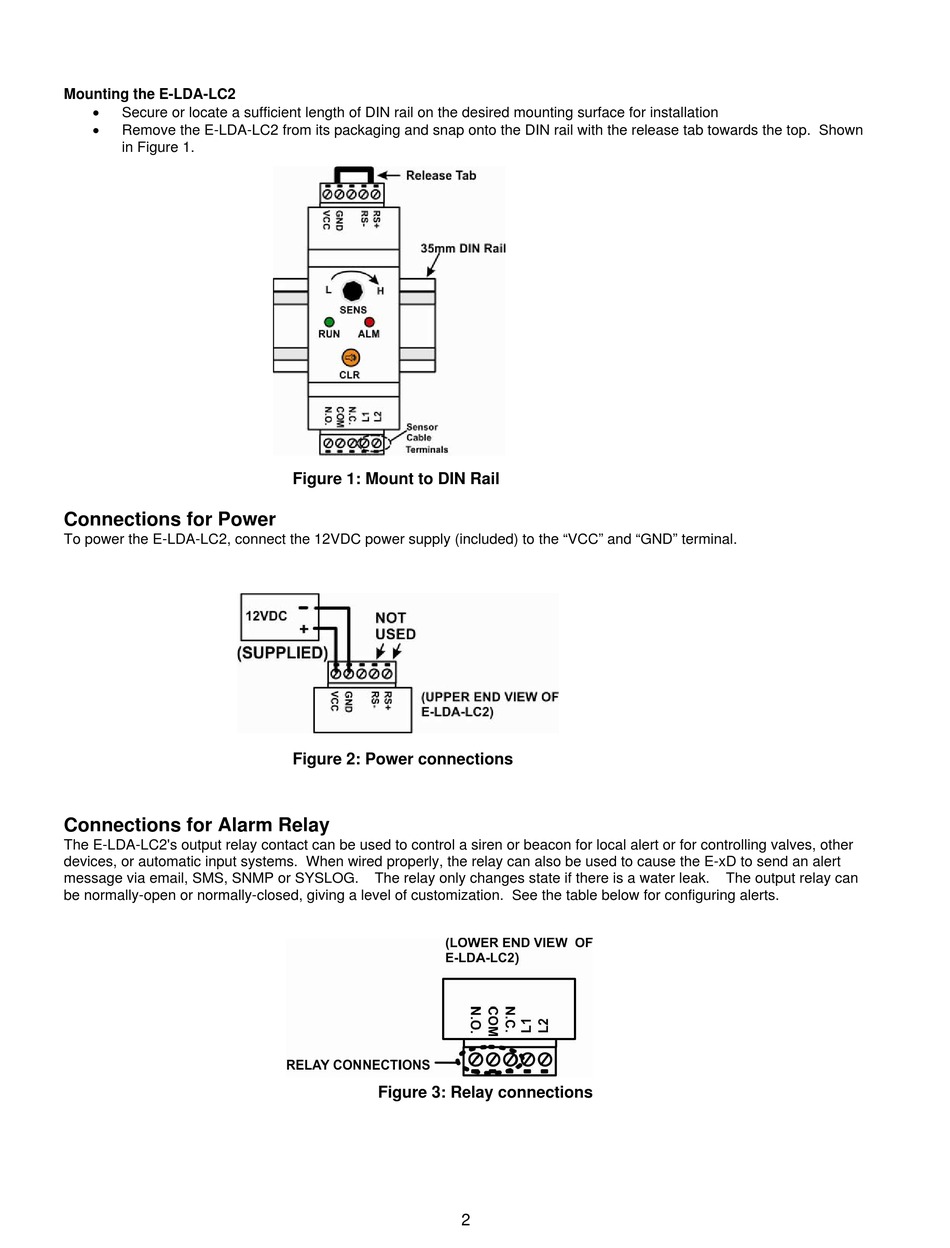

NTI ENVIROMUX Series Installation & Operation Instructions page 2

Mounting the E-LDA-LC2

Secure or locate a sufficient length of DIN rail on the desired mounting surface for installation

Remove the E-LDA-LC2 from its packaging and snap onto the DIN rail with the release tab towards the top. Shown
in Figure 1.
Connections for Power
To power the E-LDA-LC2, connect the 12VDC power supply (included) to the "VCC" and "GND" terminal.
Connections for Alarm Relay
The E-LDA-LC2's output relay contact can be used to control a siren or beacon for local alert or for controlling valves, other
devices, or automatic input systems. When wired properly, the relay can also be used to cause the E-xD to send an alert
message via email, SMS, SNMP or SYSLOG.
be normally-open or normally-closed, giving a level of customization. See the table below for configuring alerts.
Figure 1: Mount to DIN Rail
Figure 2: Power connections
The relay only changes state if there is a water leak.
Figure 3: Relay connections
2
The output relay can
