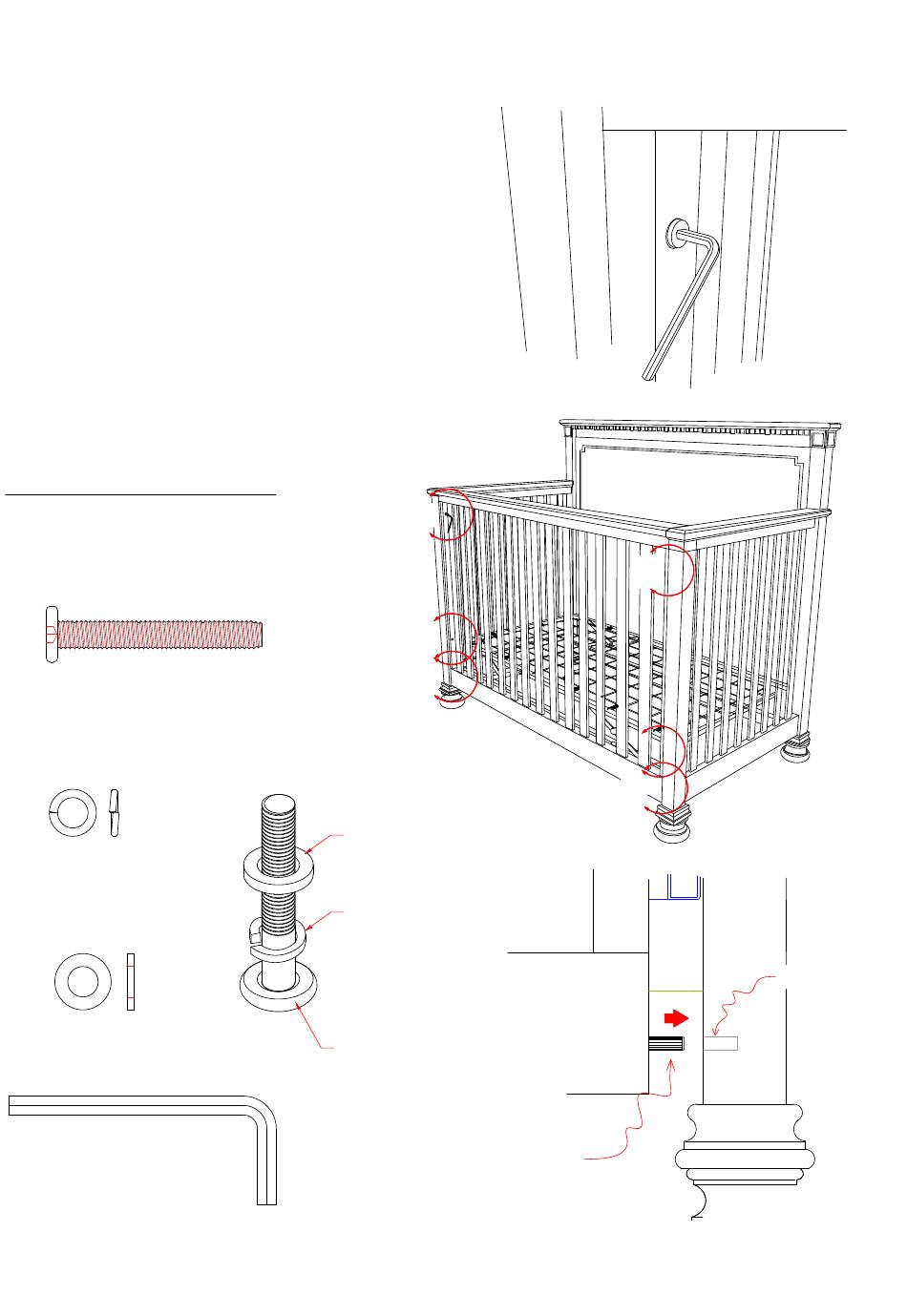

STEP 4
FRONT RAIL ASSEMBLY
STEP 4.1
On both ends of the front rail are holes for the bolt to pass through
and pre-installed wooden dowels that correspond to the holes on
the posts for both side rail panels with pre-installed nuts and
pre-bored holes for the wooden dowels. Align and insert the
wooden dowel on the lower front rail into the lower holes of both
side rail panels, then engage the top bolt in each hole and tighten
with Allen wrench provided, as in DETAIL G & DETAIL H.
After assembly re-tighten all bolts to a snug fit. DO NOT OVER
TIGHTEN.
HARDWARE NEEDED FOR STEP 4
(DD) 1/4" x 1 3/4" Allen Bolt = 4 pcs
Lock Washer = 4 pcs
Plain Washer = 4 pcs
Allen Wrench = 1 pc
G
G
H
Plain washer
Lock washer
Allen bolt (DD)
Wooden Dowel
DETAIL G
G
G
H
DETAIL H
Locator Slot
9/11
