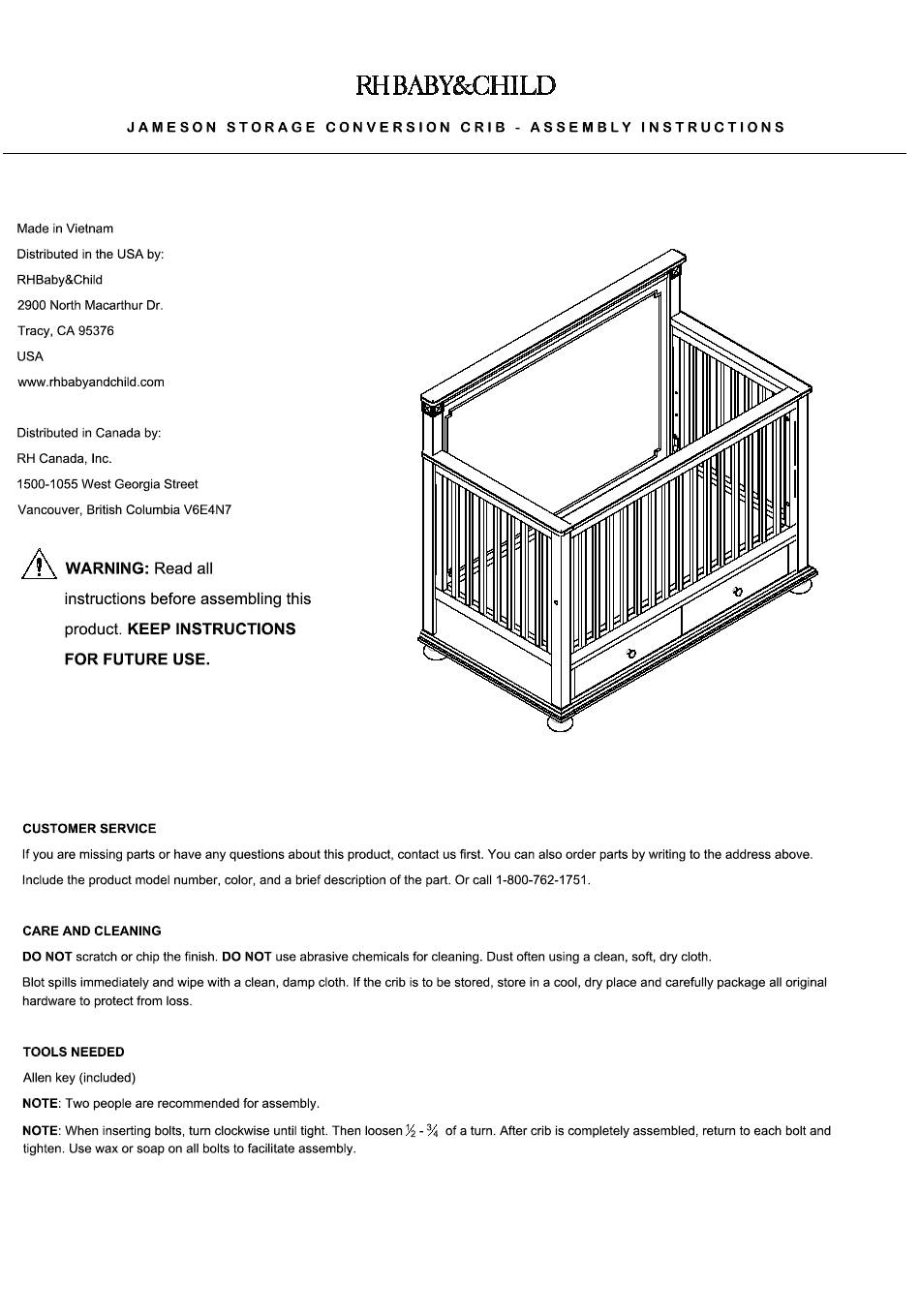

- Page 1 1/12 1 1 /...
- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
- Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. NEVER place bed near windows where cords from blinds or drapes may strangle a child.
-
Page 5: Parts Identification
PARTS IDENTIFICATION For ease of identification, all parts are labeled to correspond to the Step number in which the part is used. Step 1 Side frame and storage assembly (Page 6) Step 2 Mattress support assembly (Page 7) Step 3 Headboard assembly (Page 8 and 9) Step 4 Front rail assembly (Page 10) - Page 6 STEP 1 STORAGE & SIDE RAIL PANEL ASSEMBLY STEP 1.1 DETAIL A Fully remove the drawers from the storage. STEP 1.2 Bring the storage and the side panels in upright position. Align the locator pins on both ends of the storage to the bore holes in the side panels.
- Page 7 STEP 2 Support Arm MATTRESS SUPPORT ASSEMBLY (CC) STEP 2.1 DETAIL B Attach the support arms to the mattress support, using Allen bolts (CC), lock washers and plain washers. See DETAIL B. Plain Washer STEP 2.2 Lock Washer Hang the mattress support on both side panels by using Allen bolts (CC), lock washers and plain washers to attach the support arms into the fixed nuts in the side vertical rails of the side panels.
- Page 8 STEP 3 HEADBOARD ASSEMBLY STEP 3.1 Insert the headboard to the back sides of the side panels. STEP 3.2 Use Allen bolts (AA), lock washers and plain washers to attach the crib headboard to the side panels. Please see DETAIL E and DETAIL F. DETAIL E (AA) DETAIL F...
- Page 9 STEP 3 HEADBOARD ASSEMBLY STEP 3.3: Fix the storage to the headboard posts, using Allen bolts (AA), lock washers and plain washers. See DETAIL G. HARDWARE NEEDED FOR STEP 3 (AA) 1/4" x 2 3/16" Allen Bolt = 8 pcs DETAIL G (AA) Lock Washers 1/4"...
- Page 10 STEP 4 FRONT RAIL ASSEMBLY STEP 4.1 Both ends of the front rail have holes for the bolt to pass through that correspond to the holes on the posts for both side rail panels with pre-installed nuts. Attach the front rail frame to the side rail panels by using Allen bolts (BB) with lock washers and plain washers.
- Page 11 STEP 5 HIDE UNUSED HOLES When the mattress support is on the middle or lowest setting, unused holes can hurt your child's fingers. Please use Allen bolts provided to hide these holes. See illustration in DETAIL J. DETAIL J HARDWARE NEEDED FOR STEP 5 1/4"...
- Page 12 STEP 6 METAL BED FRAME ASSEMBLY STEP 6.1 DETAIL K Loose all the bolts in crib to disassemble it. STEP 6.2 Bring the heaboard to its upright position. STEP 6.3 On the bottom of the headboard are holes for the bolts to pass through that correspond to the holes on the metal bed frame.
