STEP 1

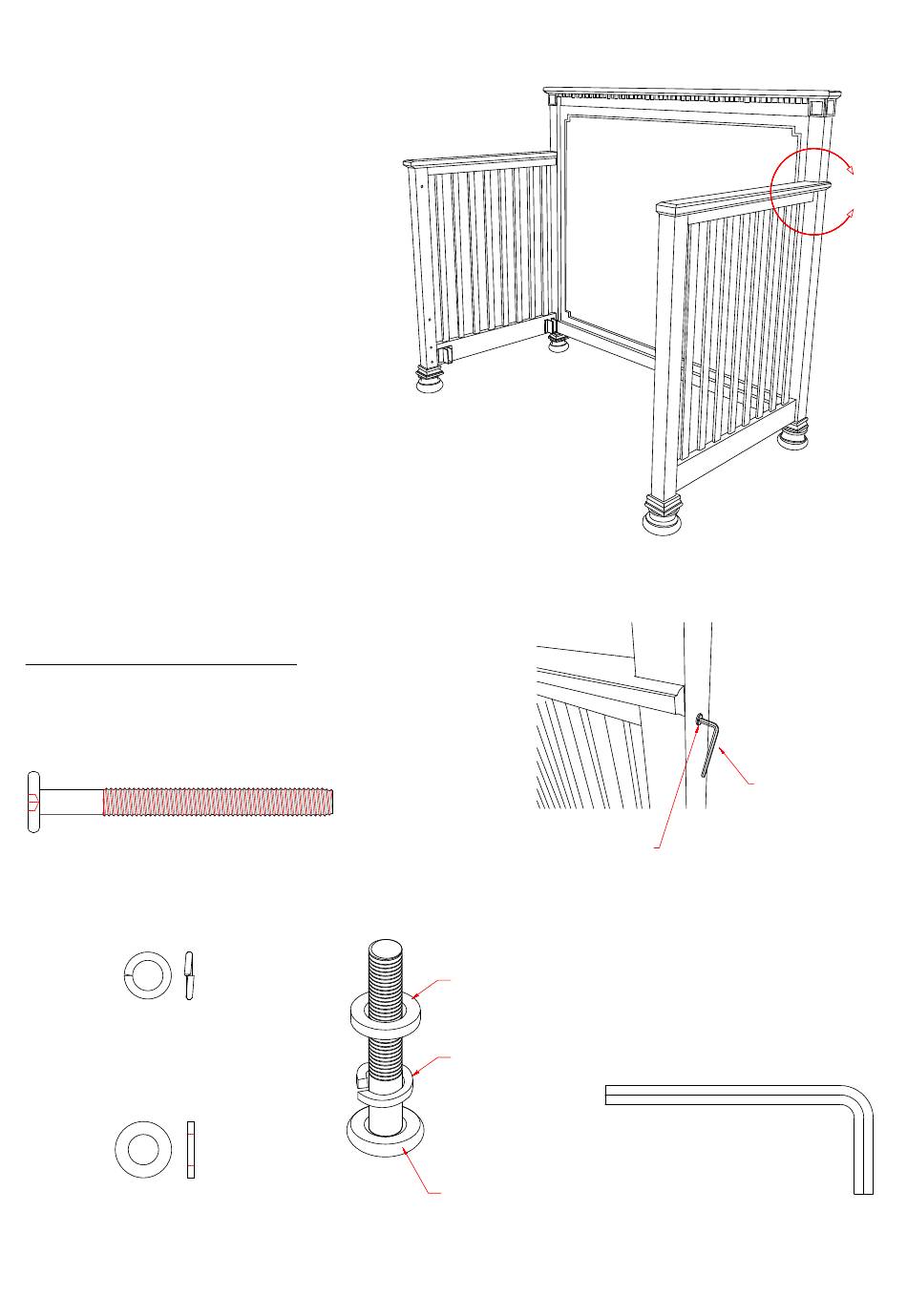

HEAD BOARD & SIDE RAIL PANEL
ASSEMBLY
STEP 1.1
Bring the head board and the side panel in upright
position.
NOTE:
On both side ends of the head board are holes for
the bolt to pass through that corresponds on the
holes located on both side ends of the side rail
panel with pre-installed insert nut.
STEP 1.2
Insert the bolt in each hole and tighten with Allen
wrench provided. See DETAIL A.
HARDWARE NEEDED FOR STEP 1
(AA) 1/4" x 2 1/2" Allen Bolt = 4 pcs
Lock Washer = 4 pcs
Plain Washer = 4 pcs
DETAIL A
Plain washer
Lock washer
Allen bolt (AA)
Allen Wrench
(AA)
Allen Wrench = 1 pc
