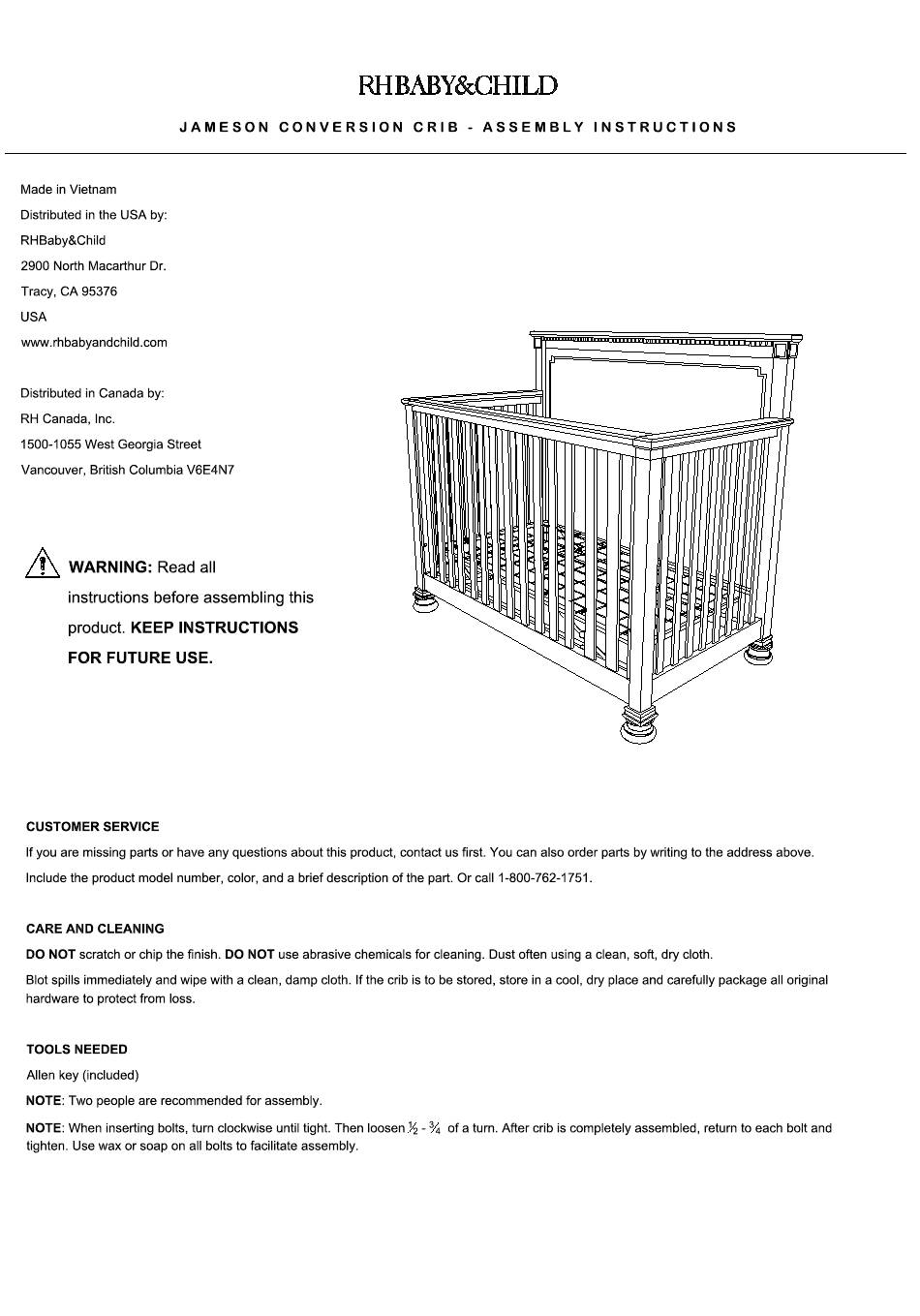

- Page 1 1/11 1 1 /...
- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
- Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. NEVER place bed near windows where cords from blinds or drapes may strangle a child.
- Page 5 PARTS IDENTIFICATION For ease of identification, all parts are labeled to correspond to the Step number in which the part is used. Step 1 Side frame and head board assembly (Page 6) Step 2 Mattress support arm assembly Stabilizer rail assembly Mattress height adjustment (Page 7) Step 3 Support slat &...
- Page 6 STEP 1 HEAD BOARD & SIDE RAIL PANEL ASSEMBLY STEP 1.1 Bring the head board and the side panel in upright position. NOTE: On both side ends of the head board are holes for the bolt to pass through that corresponds on the holes located on both side ends of the side rail panel with pre-installed insert nut.
- Page 7 STEP 2 Lock Hex Nut Washer MATTRESS SUPPORT ARM ASSEMBLY DETAIL B STABILIZER RAIL ASSEMBLY MATTRESS HEIGHT ADJUSTMENT Allen Bolt (BB) STEP 2.1 Lay mattress support flat with stabilizer rail on each side. NOTE: Plain On each end of the arm of the mattress support, there is a hole for the Allen Wrench Washer bolt to pass through that corresponds to the holes located in the frame...
- Page 8 STEP 3 STABILIZER RAIL INTO SIDE RAIL PANEL DETAIL D ASSEMBLY STEP 3.1 On inside face of both side panels are pre-installed metal brackets, designed to hold the stabilizer rails. Set both ends of the stabilizer rails into brackets, as illustrated in DETAIL D. STEP 3.2 Once the stabilizer rails are set, gently tilt the crib as illustrated in DETAIL E, then fasten the stabilizer rails with...
- Page 9 STEP 4 FRONT RAIL ASSEMBLY DETAIL G STEP 4.1 On both ends of the front rail are holes for the bolt to pass through and pre-installed wooden dowels that correspond to the holes on the posts for both side rail panels with pre-installed nuts and pre-bored holes for the wooden dowels.
- Page 10 STEP 5 Plain washer DETAIL I Lock washer TODDLER RAIL ASSEMBLY ALLEN HEAD BOLT (FF) Allen bolt (FF) STEP 5.1 METAL Remove the front rail panel of the crib by loosening all the bolts HOOK installed. ALLEN STEP 5.2 WRENCH Gently tilt the crib and release the bolts underneath the metal brackets holding the stabilizer rails.
- Page 11 STEP 6 METAL BED FRAME ASSEMBLY STEP 6.1 Loose all the bolts in crib to disassemble the crib. DETAIL K STEP 6.2 Bring the Heaboard in upright position. STEP 6.3 On the bottom of the headboard there are holes for the bolt to pass through that correspond to the holes on the metal bed frame.
