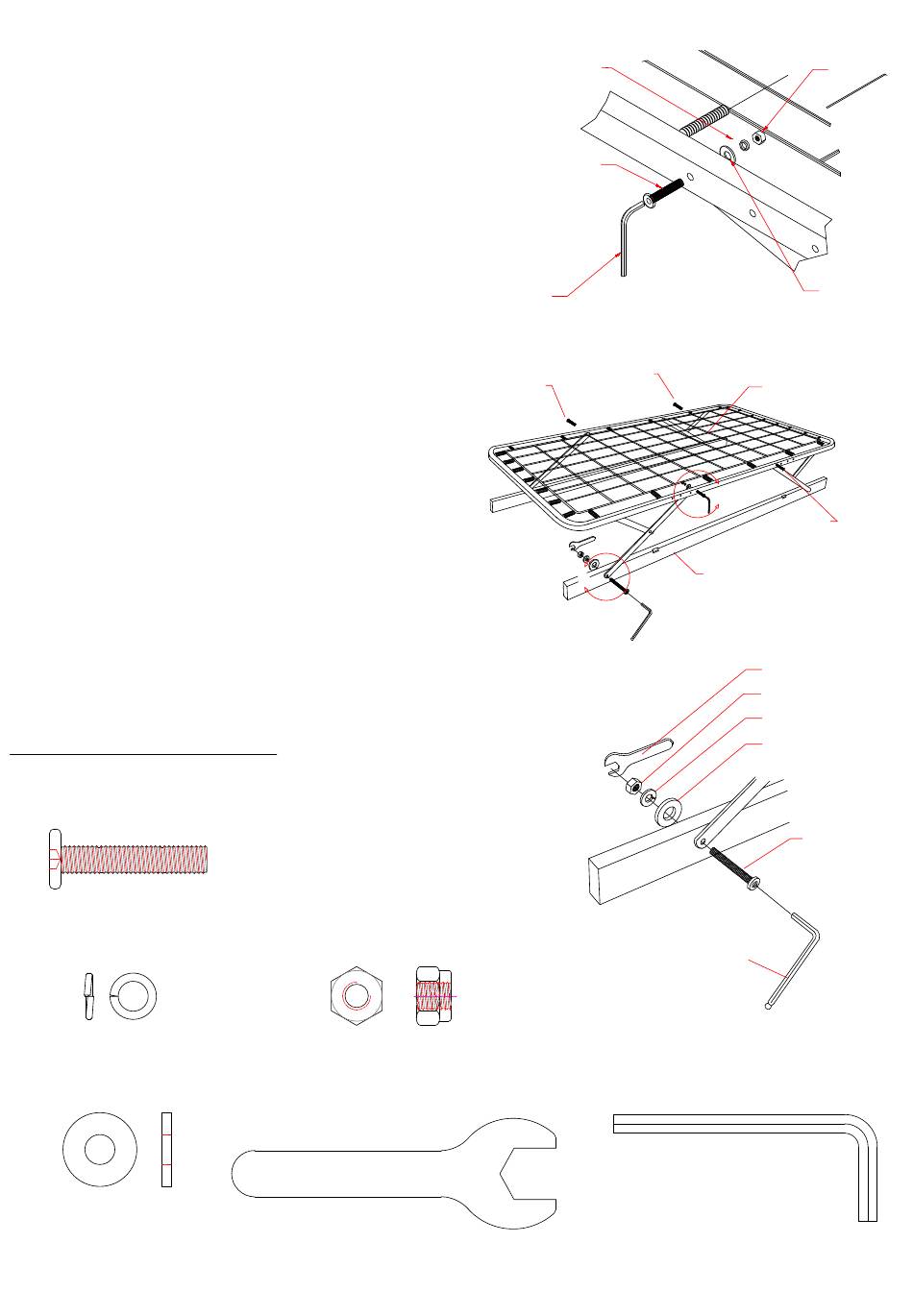

STEP 2

MATTRESS SUPPORT ARM ASSEMBLY

STABILIZER RAIL ASSEMBLY

MATTRESS HEIGHT ADJUSTMENT

STEP 2.1
Lay mattress support flat with stabilizer rail on each side.
NOTE:
On each end of the arm of the mattress support, there is a hole for the
bolt to pass through that corresponds to the holes located in the frame
of the mattress support.
STEP 2.2
Insert the bolt into the desired hole of the frame through the hole on the
arm support. Fasten the bolt with plain washer, lock washers &
hexagonal nut provided. Repeat procedure on other arms of the
mattress support. See DETAIL B.
WARNING:
Set the mattress support to the desired height by adjusting the support
arms. The mattress support should be at its highest setting for
newborns, then adjusted to the lower positions as the child grows and
becomes mobile. Once the child is able to stand, the mattress support
should be at its lowest position.
STEP 2.3
Install the stabilizer rail at ends of the arm support, as illustrated in
DETAIL C.
HARDWARE NEEDED FOR STEP 2
(BB) 1/4" x 1 1/4" Allen Bolt = 8 pcs
Lock Washer = 8 pcs
Plain Washer = 8 pcs
DETAIL B
Allen Bolt (BB)
Hex Nut = 8 pcs
Open Wrench = 1 pc
11 X 70
Lock
Washer
Allen Bolt (BB)
Allen Wrench
Allen Bolt (BB)
C
DETAIL C
Hex Nut
Plain
Washer
Mattress Support
B
Allen Bolt (BB)
Stabilizer Rail
Open Wrech
Hex Nut
Lock Washer
Plain Washer
Allen Bolt (BB)
Allen Wrench
Allen Wrench = 1 pc
7/11
