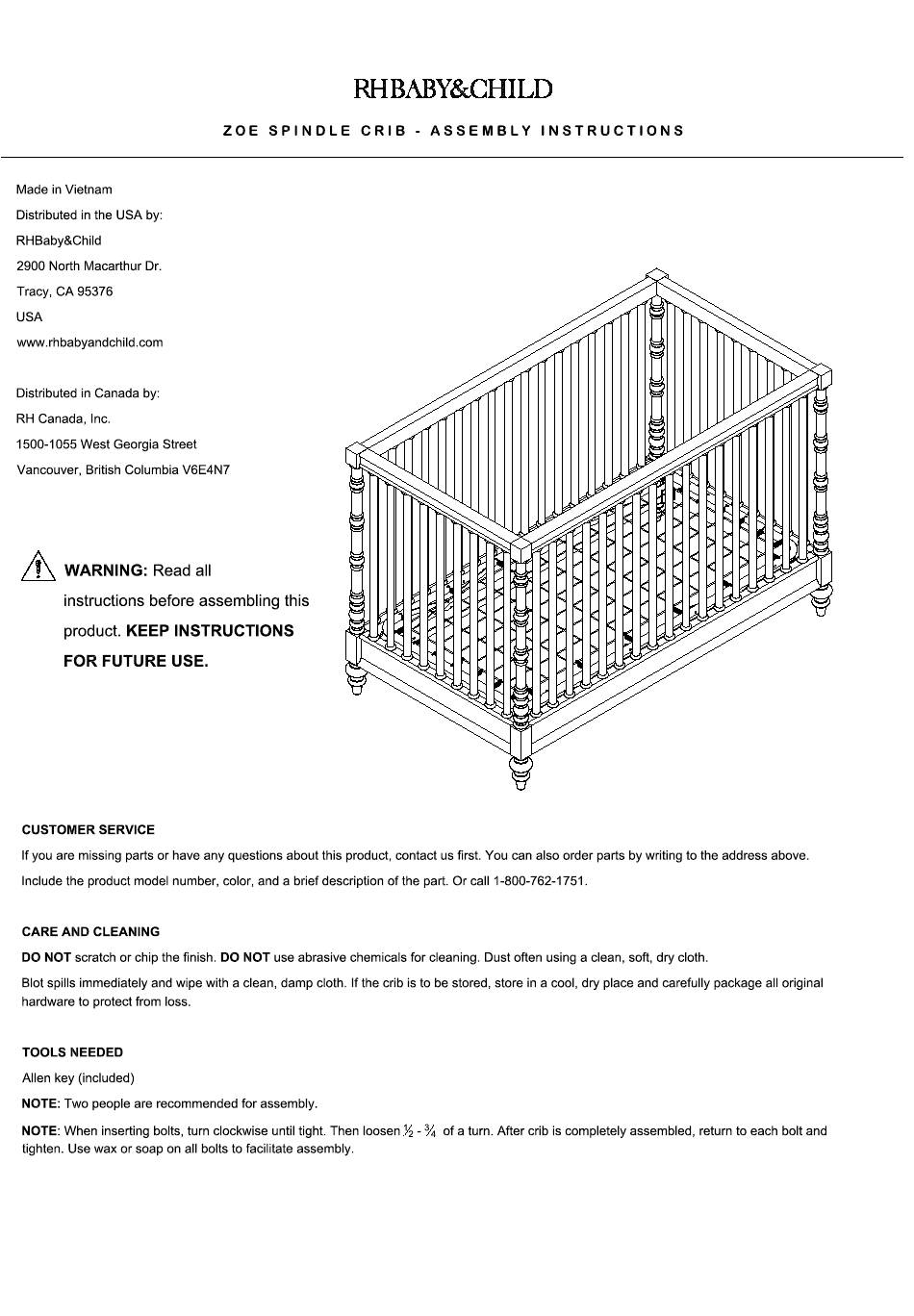

- Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
- Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHOULD BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
- Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. DO NOT place bed near windows where cords from blinds or drapes may strangle a child.
-
Page 5: Item Identification
ITEM IDENTIFICATION For ease of identification, all parts are labeled to correspond to the step number in which the part is used. Step #1 Leg assembly to side panels Side panel and rail frame assembly (Page 6/10 and 7/10). Step #2 Mattress support arm assembly. Stabilizer rail assembly. - Page 6 STEP #1 DETAIL A DETAIL B LEGS ASSEMBLY TO SIDE PANELS Threaded rod SIDE PANELS AND RAIL FRAME ASSEMBLY STEP #1.1 Gently lay the side panels on their backs on a clean and non-abrasive surface. STEP #1.2 Align and insert the threaded rods of the legs into the holes on the bottom of the side panels and turn clockwise to tighten.
- Page 7 STEP #1 LEGS ASSEMBLY TO SIDE PANELS SIDE PANELS AND RAIL FRAME ASSEMBLY STEP #1.6 Insert curved washers and lock washers and fasten these with the hexagonal nuts provided into the threaded rods. Please see DETAIL F. NOTE: DO NOT OVERTIGHTEN DETAIL F Curve Washer Lock Washer...
- Page 8 DETAIL G STEP #2 MATTRESS SUPPORT ARM ASSEMBLY Lock STABILIZER RAIL ASSEMBLY Hex Nut Washer MATTRESS HEIGHT ADJUSTMENT STEP #2.1 Lay mattress support flat with stabilizer rail on each side. Allen Bolt (AA) NOTE: On each end of the arm of the mattress support, there is a hole for the bolt to pass through that corresponds to the holes located in the frame of the mattress support.
- Page 9 STEP #3 INSTALLATION OF STABILIZER RAILS INTO THE SIDE PANELS STEP #3.1 On the inside surface of both side panels are pre-installed metal brackets designed to hold the stabilizer rails. Set both ends of the stabilizer rails into the brackets, as illustrated in DETAIL I. STEP #3.2 Once the stabilizer rails are set, gently tilt the crib as illustrated in DETAIL J, then fasten the stabilizer rails with the bolts, plain...
- Page 10 STEP #4 TODDLER RAIL ASSEMBLY DETAIL L STEP #4.1: Gently tilt the crib and release the bolts underneath the metal brackets that are holding the stabilizer rails. Curve Washer NOTE: If mattress support is not in the lowest position, loosen the mattress support bolts and move to the lowest Lock Washer position.
