RH Baby&child Thayer Crib Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
1/11
1 1 /

Advertisement

loading
Need help?

Need help?

Do you have a question about the Thayer Crib and is the answer not in the manual?

Questions and answers

Related Manuals for RH Baby&child Thayer Crib

Summary of Contents for RH Baby&child Thayer Crib

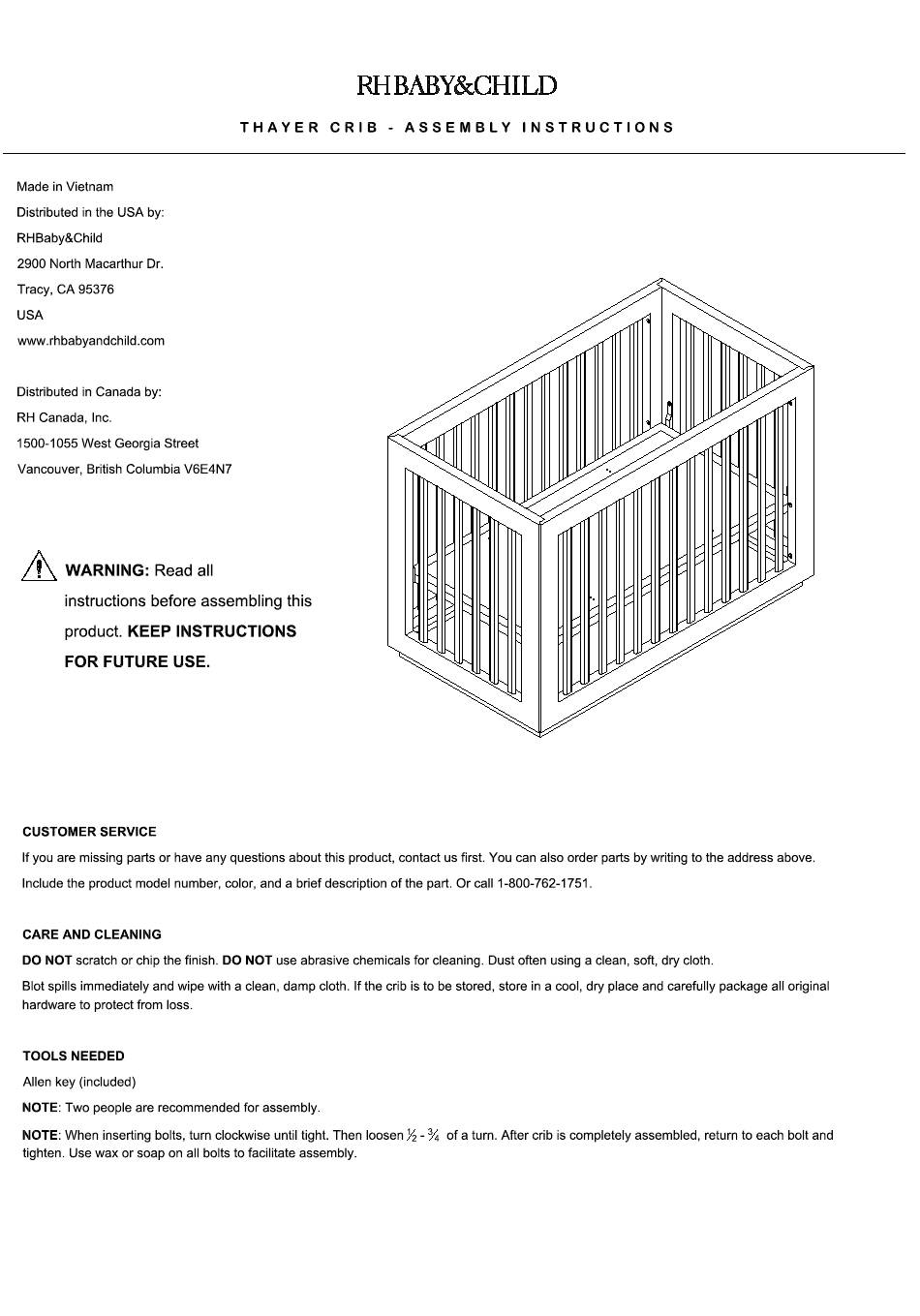

  • Page 1 1/11 1 1 /...
  • Page 2 IMPORTANT SAFETY INFORMATION FOR CRIBS WARNING: Infants can suffocate on soft bedding. Never add a pillow or comforter. Never place additional padding under an infant. WARNING: Failure to follow these warnings and the assembly instructions could result in serious injury or death. ·...
  • Page 3 IMPORTANT SAFETY INFORMATION FOR CRIBS CAUTION: ANY MATTRESS USED IN THIS CRIB SHALL BE AT LEAST 27 1/4" X 51 5/8" WITH A THICKNESS NOT EXCEEDING 6". WARNING Do not use this crib if you cannot exactly follow the instructions provided.
  • Page 4 IMPORTANT SAFETY INFORMATION FOR TODDLER AND DAYBEDS WARNING: ENTRAPMENT / STRANGULATION HAZARD Infants have died in toddler beds from entrapment and strangulation. Failure to follow these warnings and the assembly instructions could result in serious injury or death. NEVER use bed with children under 15 months of age. NEVER place bed near windows where cords from blinds or drapes may strangle a child.

  • Page 5: Parts Identification

    PARTS IDENTIFICATION For ease of identification, all parts are labeled to correspond to the Step number in which the part is used. Step 1 Side rail and end panel assembly (Page 6) Step 2 Bottom frame assembly (Page 7) Step 3 Mattress support assembly (Page 8) Step 4 Hide unused holes (Page 9)
  • Page 6 STEP 1 DETAIL A1 SIDE RAIL & END PANEL ASSEMBLY STEP 1.1 Turn all side rails and end panels upside down and align the locator pins on the end of the side rail to the corresponding holes in the end panel as in DETAIL A. IMPORTANT: We stamped "Y1"...

  • Page 7: Bottom Frame Assembly

    STEP 2 BOTTOM FRAME ASSEMBLY Allen bolt (AA), lock washer and STEP 2.1 plain washer Bring the bottom frame and set it on the bottom of the crib. DETAIL C STEP 2.2 Attach the bottom frame to bottom of the crib by using allen bolts (AA), lock washers and plain washers.
  • Page 8 STEP 3 Support arm MATTRESS SUPPORT ASSEMBLY DETAIL E STEP 3.1 Attach the support arms to the mattress support, using allen bolts (BB), lock washers and plain washers. See DETAIL E. (BB) STEP 3.2 Hang the mattress support on both end panels using allen bolts (BB), lock washers and plain washers.
  • Page 9 STEP 4 HIDE UNUSED HOLES When the mattress support is in middle or lowest setting, unused holes can hurt your child's fingers. Use allen bolts (CC) provided to hide these holes. See illustration in DETAIL G. (CC) DETAIL G HARDWARE NEEDED FOR STEP 4 (CC) 1/4"...
  • Page 10 STEP 5 TODDLER RAIL ASSEMBLY DETAIL H STEP 5.1 Remove the mattress support from the crib by unscrewing all bolts installed on the support arms. See DETAIL H. (CC) STEP 5.2 Lay the assembled crib on a soft flat surface. STEP 5.3 Remove some of bolts on the bottom frame as in DETAIL I.
