6.

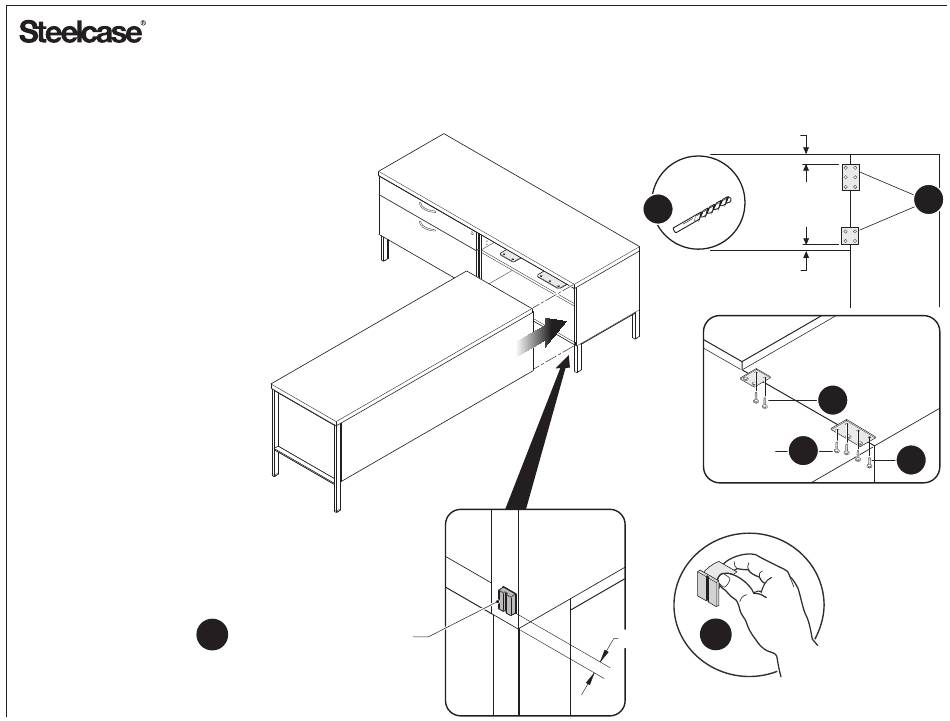

Install a pair of mounting brackets
onto the underside of top of adjoining
unit. Position brackets (a), drill pilot
holes (b), then secure with screws
provided (c).
7.
a) Locate bumper on leg as shown.
b) Attach by peeling paper backing and
press into place.
8.
Carefully turn glass modesty panel
assembly over and attach to adjacent
unit. Note: make sure panel slides
into slot in bumper, then secure
with remainder of screws in
mounting brackets.
7a
Locate bumper approximately 1/4"
from bottom of case. It should also
be located back from the case so that
the glass modesty panel is vertically
straight and in alignment.
2.00"
(50 mm)

DRILL BIT

(1/8"
6b
1.00"
(25 mm)
#10 x .750"
6c
pan head
screws
7b
1/4"
6a
8
8
Page 5 of 10
939568005 Rev A
