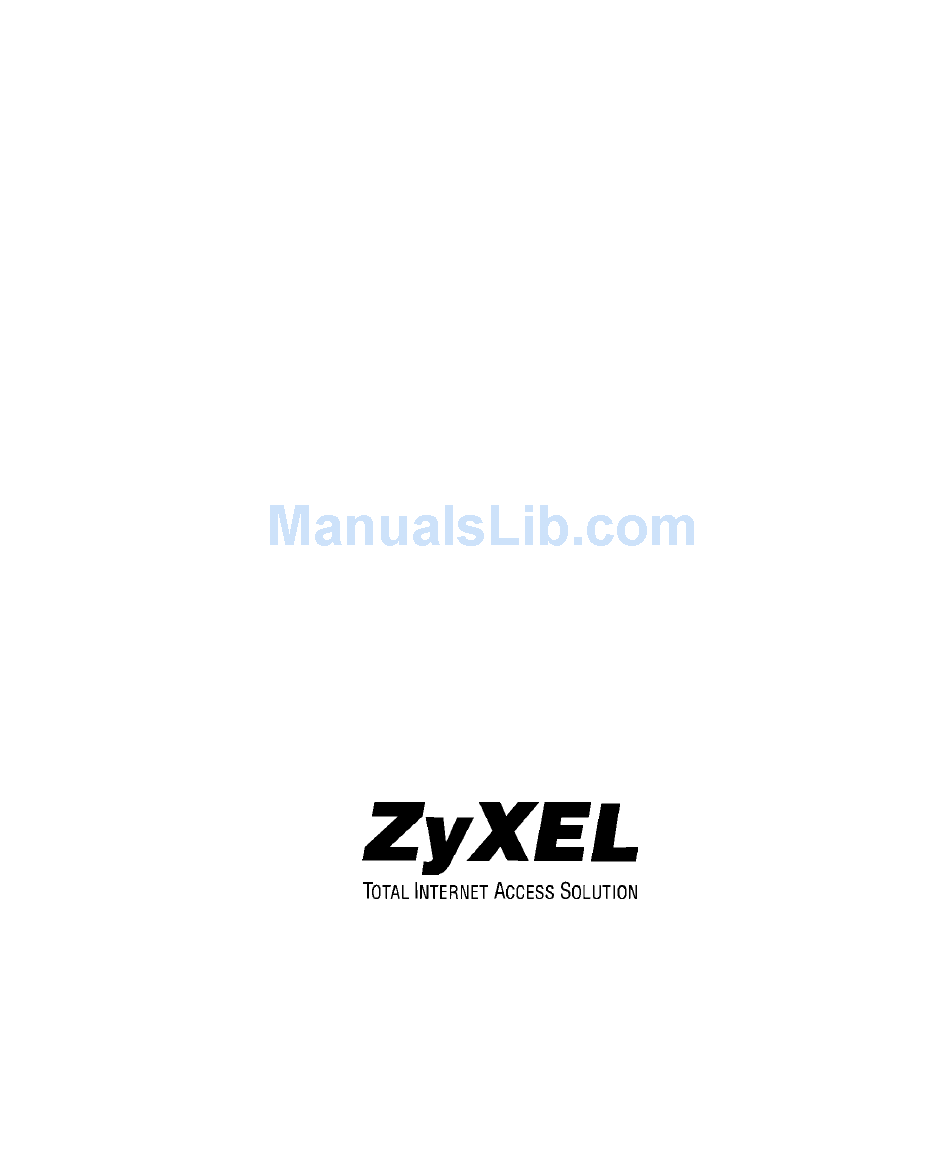

Prestige 314 PLUS
Broadband Sharing Gateway
with 4-Port Switch
User's Guide
Version 3.60
October 2002

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Prestige 314 PLUS and is the answer not in the manual?

Questions and answers

Related Manuals for ZyXEL Communications Prestige 314 PLUS

Summary of Contents for ZyXEL Communications Prestige 314 PLUS

  • Page 1 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch User’s Guide Version 3.60 October 2002...
  • Page 2 Trademarks ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL Communications, Inc. Other trademarks mentioned in this publication are used for identification purposes only and may be properties of their respective owners.

  • Page 3: Federal Communications Commission (Fcc) Interference Statement

    4. Consult the dealer or an experienced radio/TV technician for help. Notice Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC Statement Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Interference Statement...

  • Page 4: Information For Canadian Users

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective operation and safety requirements. The Industry Canada label does not guarantee that the equipment will operate to a user's satisfaction.

  • Page 5: Declaration Of Conformity

    EN 61000-4-8 EN61000-4-11 Voltage dips, short interruptions and voltage variations immunity tests Declaration of Conformity Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch We, the Manufacturer/Importer, ZyXEL Communications Corp. No. 6, Innovation Rd. II, Science-Based Industrial Park, Hsinchu, Taiwan, 300 R.O.C...

  • Page 6: Online Registration

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon...

  • Page 7: Customer Support

    Sales@zyxel.com.tw NORTH Support@zyxel.com AMERICA Sales@zyxel.com SCANDINAVIA Support@zyxel.dk Sales@zyxel.dk GERMANY Support@zyxel.de Sales@zyxel.de Sales@zyxel.com.my Customer Support Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Customer Support TELEPHONE/FAX WEB SITE/ FTP SITE +886-3-578-3942 www.zyxel.com www.europe.zyxel.com +886-3-578-2439 ftp.europe.zyxel.com +1-714-632-0882 www.zyxel.com 800-255-4101 +1-714-632-0858 ftp.zyxel.com +45-3955-0700 www.zyxel.dk...

  • Page 8: Table Of Contents

    List of Tables ... xvii Preface ... xix Chapter 1 Getting to Know Your Prestige 314 PLUS ... 1-1 The Prestige Broadband Sharing Gateway With 4-Port Switch... 1-1 Features of the Prestige 314 PLUS ... 1-1 Broadband Internet Access via Cable or DSL Modem ... 1-4 Internet Access Configuration Checklist...
  • Page 9 Using UPnP in Windows XP Example...8-6 Chapter 9 SNMP Configuration ...9-1 About SNMP...9-1 Supported MIBs ...9-3 SNMP Configuration...9-3 SNMP Traps ...9-4 Chapter 10 Traffic Redirect...10-1 10.1 Traffic Redirect ...10-1 Table of Contents Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...
  • Page 10 Chapter 11 System Information & Diagnosis... 11-1 11.1 System Status... 11-1 11.2 System Information and Console Port Speed... 11-3 11.3 Log and Trace ... 11-6 11.4 Diagnostic ... 11-11 Chapter 12 Firmware and Configuration File Maintenance ... 12-1 12.1 Filename Conventions ... 12-1 12.2 Backup Configuration...
  • Page 11 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 16.4 Problems with Internet Access...16-3 Appendix A PPPoE ... A Appendix B PPTP... D Appendix D Boot Commands... G Appendix E NetBIOS Filter Commands...I Appendix F Power Adapter Specifications ...P Appendix F Hardware Specifications ... Q Index ...S...

  • Page 12: List Of Figures

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch List of Figures Figure 1-1 Internet Access Application ...1-4 Figure 2-1 Front Panel ...2-1 Figure 2-2 Prestige Rear Panel Connections...2-2 Figure 2-3 Initial Screen ...2-5 Figure 2-4 Password Screen ...2-5 Figure 2-5 Prestige Main Menu ...2-7 Figure 2-6 Menu 23 —...
  • Page 13 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-8 Menu 15.1.1 — First Set ... 4-11 Figure 4-10 Menu 15.2 — NAT Server Setup ... 4-15 Figure 4-11 Multiple Servers Behind NAT Example ... 4-16 Figure 4-12 Trigger Port Forwarding Process: Example ... 4-16 Figure 4-13 Menu 15.3: Trigger Port Setup...
  • Page 14 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 7-7 SNMP_WAN Filter Rules Summary ...7-6 Figure 7-8 Menu 21.1.1 — TCP/IP Filter Rule ...7-8 Figure 7-9 Executing an IP Filter...7-11 Figure 7-10 Menu 21.4.1 — Generic Filter Rule...7-12 Figure 7-11 Filter Example...7-14 Figure 7-12 Example Filter —...
  • Page 15 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 11-4 System Maintenance — Starting Xmodem Download Screen ... 12-7 Figure 11-5 Backup Configuration Example ... 12-7 Figure 11-6 Successful Backup Confirmation Screen... 12-8 Figure 11-7 Telnet into Menu 24.6 ... 12-9 Figure 11-8 Restore Using FTP or TFTP Session Example...

  • Page 16: List Of Diagrams

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch List of Diagrams Diagram 1 Single-PC per Modem Hardware Configuration... B Diagram 2 Prestige as a PPPoE Client... C Diagram 3 Transport PPP frames over Ethernet... D Diagram 4 PPTP Protocol Overview ...E Diagram 5 Example Message Exchange between PC and an ANT ...F...
  • Page 17 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch List of Tables Table 1-1 Internet Access Configuration Checklist ... 1-5 Table 2-1 LED Descriptions ... 2-1 Table 2-2Prestige Rear Panel Connections ... 2-2 Table 2-3 Main Menu Commands ... 2-6 Table 2-4 Main Menu Summary ...
  • Page 18 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 5-5 Remote Node Network Layer Options Menu Fields ...5-10 Table 6-1 IP Static Route Menu Fields...6-3 Table 7-1 Abbreviations Used in the Filter Rules Summary Menu ...7-6 Table 7-2 Rule Abbreviations Used...7-7 Table 7-3 TCP/IP Filter Rule Menu Fields...7-8...

  • Page 19: Related Documentation

    Congratulations on your purchase of the Prestige 314 PLUS Broadband Sharing Gateway. Don’t forget to register your Prestige (fast, easy online registration at www.zyxel.com) for free future product updates and information. The Prestige is a dual Ethernet broadband gateway integrated with network management features that allows access to the Internet via Cable/xDSL modem.

  • Page 20: Syntax Conventions

    For brevity’s sake, we will use “e.g.” as shorthand for “for instance” and “i.e.” for “that is” or “in other words” throughout this manual. • The Prestige 314 PLUS may be referred to as the Prestige or the P314 PLUS in this manual. Occasionally, SMT screens may refer to the Prestige as a router. Preface...

  • Page 21: Getting Started

    Getting Started Getting Started This section helps you connect, install and setup your Prestige to operate on your network and access the Internet.

  • Page 23: Chapter 1 Getting To Know Your Prestige 314 Plus

    The Prestige automatically switches its transmit and receive circuitry to accommodate the link partner’s polarity. Getting to Know Your Prestige Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 1 fast Internet access.

  • Page 24: Dynamic Dns Support

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Universal Plug and Play (UPnP) Using the standard TCP/IP protocol, the Prestige and other UPnP enabled devices can dynamically join a network, obtain an IP address and convey its capabilities to other devices on the network.

  • Page 25: Roadrunner Support

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch PPTP Support Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables secure transfer of data from a remote client to a private server, creating a Virtual Private Network (VPN) using a TCP/IP-based network.

  • Page 26: Broadband Internet Access Via Cable Or Dsl Modem

    Port Forwarding Use this feature to forward incoming service requests to a server on your local network. You may enter a single port number or a range of port numbers to be forwarded, and the local IP address of the desired server. Packet Filtering The Packet Filtering mechanism blocks unwanted traffic from entering/leaving your network.

  • Page 27: Table 1-1 Internet Access Configuration Checklist

    Once these key fields have been configured, you should be able to enjoy super-fast Internet access with your Prestige! Getting to Know Your Prestige Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch In Windows 95/98 click Start, Settings, Control Panel, Network. Click the In Windows 2000, click Start, Settings, Control Panel, Network In Windows XP, click Start, Control Panel, System.

  • Page 29: Chapter 2 Hardware Installation & Initial Setup

    Green 1,2,3,4 100M Orange 1,2,3,4 Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 2-1 Front Panel Table 2-1 LED Descriptions STATUS The Prestige is receiving power. The system is not ready or failed.

  • Page 30: Prestige Rear Panel And Connections

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch FUNCTION Green Prestige Rear Panel and Connections The following figure shows the rear panel of your Prestige and the related connections. Figure 2-2 Prestige Rear Panel Connections Table 2-2Prestige Rear Panel Connections...

  • Page 31: Connecting Your Prestige

    You can connect up to four computers directly to the Prestige. For each computer, connect a 10/100M LAN port on the Prestige to the Network Adapter on the computer using a straight-through cable Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...

  • Page 32: Additional Installation Requirements

    If you have more than four computers, you must use an external hub. Connect a 10/100M LAN port on the Prestige to a port on the hub using a crossover Ethernet cable. The Uplink button allows you to reverse the role of LAN port 4. Pushing the Uplink button in (“on”) lets you connect LAN port 4 on the Prestige directly to a computer using a crossover Ethernet cable.

  • Page 33: Turning On Your Prestige

    If you see a blank screen, press [ENTER] to bring up the login screen again. Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 2-3 Initial Screen Enter Password : XXXX...

  • Page 34: Navigating The Smt Interface

    Navigating the SMT Interface The SMT (System Management Terminal) is the interface that you use to configure your Prestige. Several operations that you should be familiar with before you attempt to modify the configuration are listed next. OPERATION KEYSTROKE(S) Move down to [ENTER] another menu Move up to a...

  • Page 35: Figure 2-5 Prestige Main Menu

    Remote Node Setup Static Routing Setup NAT Setup Filter Set Configuration Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Prestige 314 PLUS Main Menu Advanced Management 21. Filter Set Configuration 22. SNMP Configuration 23. System Password 24.

  • Page 36: Changing The System Password

    MENU TITLE SNMP Configuration System Password System Maintenance Schedule Setup Exit Changing the System Password The first thing you should do is change the default system password by following the steps shown next. Step 1. Enter 23 in the main menu to open Menu 23 - System Password as shown next. Old Password= ? New Password= ? Retype to confirm= ?

  • Page 37: Resetting The Prestige

    In Windows 95/98 click Start, Settings, Control Panel, Network. Click the Identification tab, note the entry for the Computer Name field and enter it as the System Name. Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...

  • Page 38: Dynamic Dns

    • In Windows 2000, click Start, Settings, Control Panel and then double-click System. Click the Network Identification tab and then the Properties button. Note the entry for the Computer name field and enter it as the System Name. • In Windows XP, click Start, Control Panel, System. Click the Computer Name tab. Note the entry for the Computer Description field and enter this entry as the System Name.

  • Page 39: Figure 2-7 Menu 1 - General Setup

    DNS field. Press [ENTER] to display Menu 1.1– Configure Dynamic DNS as shown next. Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 1 - General Setup Figure 2-7 Menu 1 — General Setup...

  • Page 40: Figure 2-8 Configure Dynamic Dns

    Service Provider= WWW.DynDNS.ORG Active= Yes DDNSType= DynamicDNS Host1= Host2= Host3= EMAIL= USER= Password= ******** Enable Wildcard= No Offline= N/A Edit Update IP Address: Use Server Detected IP= Yes User Specified IP Addr=No IP Address=N/A Press ENTER to confirm or ESC to cancel: Follow the instructions in the next table to configure Dynamic DNS parameters.
  • Page 41 The IP address will be updated when you reconfigure menu 1 or perform DHCP client renewal. If you have a private WAN IP address, then you cannot use Dynamic DNS. Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION www.dyndns.org...

  • Page 42: Wan Setup

    WAN Setup This section describes how to configure the WAN using Menu 2 – WAN Setup. From the main menu, enter 2 to display menu 2. ZyXEL recommends you configure this menu even if your ISP does not require Press ENTER to Confirm or ESC to Cancel: Press Space Bar to Toggle The MAC address field allows users to configure the WAN port's MAC Address by either using the factory default or cloning the MAC address from a workstation on your LAN.

  • Page 43: Lan Setup

    LAN traffic, however, the filter sets may be useful to block certain packets, reduce traffic and prevent security breaches. Hardware Installation & Initial Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION Menu 3 - LAN Setup 1.

  • Page 44: Figure 2-11 Menu 3.1 - Lan Port Filter Setup

    Figure 2-11 Menu 3.1 — LAN Port Filter Setup Menu 3.2 is discussed in the next part of the manual. Please read on. 2-16 Menu 3.1 – LAN Port Filter Setup Input Filter Sets: protocol filters= 2 device filters= Output Filter Sets: protocol filters= device filters= Press ENTER to Confirm or ESC to Cancel:...

  • Page 45: Chapter 3 Internet Access

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 3 Internet Access This chapter shows you how to configure the LAN as well as the WAN of your Prestige for Internet access. TCP/IP and DHCP for LAN The Prestige has built-in DHCP server capability that assigns IP addresses and DNS servers to systems that support DHCP client capability.

  • Page 46: Ip Address And Subnet Mask

    IP Pool Setup The Prestige is pre-configured with a pool of 32 IP addresses starting from 192.168.1.33 to 192.168.1.64. This configuration leaves 31 IP addresses (excluding the Prestige itself) in the lower range for other server computers, e.g., server for mail, FTP, telnet, web, etc., that you may have. DNS Server Address Use DNS (Domain Name System) to map a domain name to its corresponding IP address and vice versa, e.g., the IP address of www.zyxel.com is 204.217.0.2.

  • Page 47: Private Ip Addresses

    Internet addresses for your local networks. On the other hand, if you are part of a much larger organization, you should consult your network administrator for the appropriate IP addresses. Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 3-2 Private IP Address Ranges 10.0.0.0 — 10.255.255.255 172.16.0.0 —...

  • Page 48: Rip Setup

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Regardless of your particular situation, do not create an arbitrary IP address; always follow the guidelines above. For more information on address assignment, please refer to RFC 1597, Address Allocation for Private Internets and RFC 1466, Guidelines for Management of IP Address Space.

  • Page 49: Figure 3-1 Physical Network

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch RFC 2236. The class D IP address is used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address 224.0.0.0 is not assigned to any group and is used by IP multicast computers.

  • Page 50: Tcp/Ip And Dhcp Ethernet Setup

    TCP/IP and DHCP Ethernet Setup From the main menu, enter 3 to open Menu 3 - LAN Setup (10/100 Mbps Ethernet) to configure TCP/IP (RFC 1155) and DHCP Ethernet setup. Figure 3-3 Menu 3 — LAN Setup (10/100 Mbps Ethernet) To edit the TCP/IP and DHCP configuration, enter 2 to display Menu 3.2 - TCP/IP and DHCP Ethernet Setup as shown next.

  • Page 51: Table 3-3 Lan Dhcp Setup Menu Fields

    Your Prestige will automatically calculate the subnet mask based on the IP address that you assign. Unless you are implementing subnetting, use the subnet mask computed by the Prestige Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 3-3 LAN DHCP Setup Menu Fields DESCRIPTION DESCRIPTION...

  • Page 52: Ip Alias Setup

    FIELD RIP Direction Press the [SPACE BAR] to select the RIP direction. Options are Both, In Only, Out Only or None. Version Press the [SPACE BAR] to select the RIP version. Options are RIP-1, RIP-2B or RIP-2M. Multicast IGMP (Internet Group Multicast Protocol) is a session-layer protocol used to establish membership in a Multicast group.

  • Page 53: Figure 3-5 Menu 3.2.1 - Ip Alias Setup

    Enter the filter set(s) you wish to apply to the incoming traffic Protocol Filters between this node and the Prestige. Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 3.2.1 - IP Alias Setup IP Alias 1= No IP Address= N/A...

  • Page 54: Internet Access Setup

    FIELD Outgoing Enter the filter set(s) you wish to apply to the outgoing traffic between Protocol Filters this node and the Prestige. When you have completed this menu, press [ENTER] at the prompt [Press ENTER to Confirm…] to save your configuration, or press [ESC] at any time to cancel. Internet Access Setup You will see three different menu 4 screens depending on whether you chose Ethernet, PPTP or PPPoE encapsulation.

  • Page 55: Table 3-6 Internet Access Setup Menu Fields

    Point-to-Point Tunneling Protocol (PPTP) is a network protocol that enables transfer of data from a remote client to a private server, creating a Virtual Private Network (VPN) using TCP/IP-based networks. Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION 3-11...

  • Page 56: Figure 3-7 Internet Access Setup (Pptp)

    PPTP supports on-demand, multi-protocol, and virtual private networking over public networks, such as the Internet. The P314 PLUS supports one PPTP server connection at any given time. 3.3.3 Configure PPTP Client To configure a PPTP client, you must configure My Login and Password fields for PPP connection and PPTP parameters for PPTP connection.

  • Page 57: Pppoe Encapsulation

    NAT, all of the LAN’s computers will have access. If you enable PPPoE in menu 4, you will see the next screen. For more information on PPPoE, please refer to the PPPoE Appendix. Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE (default)

  • Page 58: Internet Test Setup

    Table 3-8 New Fields in Menu 4 (PPPoE) screen FIELD Encapsulation Press the [SPACE BAR] and then press [ENTER] to choose PPPoE. The encapsulation method influences your choices for IP Address. Idle Timeout This value specifies the time in seconds that elapses before the Prestige automatically disconnects from the PPPoE server.

  • Page 59: Basic Setup Complete

    Basic Setup Complete Well done! You have successfully connected, installed and set up your Prestige to operate on your network and access the Internet. Internet Access Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 3-9 Internet Setup Test Example 3-15...

  • Page 61: Advanced Applications

    Advanced Applications Advanced Applications This section describes the advanced applications of your Prestige, such as NAT, Remote Node Setup and IP Static Route Setup.

  • Page 63: Chapter 4 Network Address Translation (Nat)

    Global This refers to the packet address (source or destination) as the packet travels on the WAN. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch This chapter discusses how to configure NAT on the Prestige. Table 4-1 NAT Definitions...

  • Page 64: What Nat Does

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch NAT never changes the IP address (either local or global) of an outside host. 4.1.2 What NAT Does In the simplest form, NAT changes the source IP address in a packet received from a subscriber (the inside local address) to another (the inside global address) before forwarding the packet to the WAN side.

  • Page 65: Nat Application

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-1 How NAT Works 4.1.4 NAT Application The following figure illustrates a possible NAT application, where three inside LANs (logical LANs using IP Alias) behind the Prestige can communicate with three distinct WAN networks. More examples follow at the...

  • Page 66: Figure 4-2 Nat Application With Ip Alias

    4.1.5 NAT Mapping Types NAT supports five types of IP/port mapping. They are: 1. One to One: In One-to-One mode, the Prestige maps one local IP address to one global IP address. 2. Many to One: In Many-to-One mode, the Prestige maps multiple local IP addresses to one global IP address.

  • Page 67: Table 4-2 Nat Mapping Types

    Port numbers do not change for One-to-One and Many One-to-One NAT mapping The following table summarizes these types. TYPE One-to-One Many-to-One (SUA/PAT) Many-to-Many Overload Many-One-to-One Server Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch types. Table 4-2 NAT Mapping Types IP MAPPING ILA1 IGA1 ILA1 IGA1...

  • Page 68: Using Nat

    Using NAT 4.2.1 SUA (Single User Account) Versus NAT SUA (Single User Account) is a ZyNOS implementation of a subset of NAT that supports two types of mapping, Many-to-One and Server. See section 4.3.1 for a detailed description of the NAT set for SUA. The Prestige also supports Full Feature NAT to map multiple global IP addresses to multiple private LAN IP addresses of clients or servers using mapping types as outlined in Table 4-2.

  • Page 69: Figure 4-4 Menu 11.3 - Applying Nat To The Remote Node

    When you select this option the SMT will use Address Mapping Set 255 (menu 15.1 - see section 4.3.1). Choose SUA Only if you have just one public WAN IP address for your Prestige. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION...

  • Page 70: Nat Setup

    NAT Setup Use the Address Mapping Sets menus and submenus to create the mapping table used to assign global addresses to computers on the LAN. You can see two NAT Address Mapping sets in menu 15.1. You can only configure Set 1. Set 255 is used for SUA. When you select Full Feature in menu 4 or 11.3, the SMT will use Set 1, which supports all mapping types as outlined in Table 4-2.

  • Page 71: Figure 4-7 Menu 15.1.255 - Sua Address Mapping Rules

    IP address (ILA). If the rule is for all local IPs, then the Start IP is 0.0.0.0 and the End IP is 255.255.255.255. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 15.1.255 - Address Mapping Rules Local End IP Global Start IP Global End IP 0.0.0.0...

  • Page 72: User-Defined Address Mapping Sets

    FIELD Global Start IP This is the starting global IP address (IGA). If you have a dynamic IP, enter 0.0.0.0 as the Global Start IP. Global End IP This is the ending global IP address (IGA). Type These are the mapping types discussed above (see Table 4-2).

  • Page 73: Ordering Your Rules

    The default is Edit. Edit means you want to edit a selected rule (see following field). Insert Before means to insert a rule Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 15.1.1 - Address Mapping Rules Global Start IP Global End IP Select Rule= N/A Figure 4-8 Menu 15.1.1 —...
  • Page 74 FIELD Action The default is Edit. Edit means you want to edit a selected rule (see following field). Insert Before means to insert a rule before the rule selected. The rules after the selected rule will then be moved down by one rule. Delete means to delete the selected rule and then all the rules after the selected one will be advanced one rule.

  • Page 75: Table 4-6 Menu 15.1.1.1 - Editing/Configuring An Individual Rule In A Set

    21. In some cases, such as for unknown services or where one server can support more than one service (for example both FTP and web service), it might be better to specify a range of port numbers. Entry 12 (port 1026) is non-editable (see Figure 4-10). Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE One-to-One 0.0.0.0...

  • Page 76: Table 4-7 Services & Port Numbers

    In addition to the servers for specified services, NAT supports a default server. A service request that does not have a server explicitly designated for it is forwarded to the default server. If the default is not defined, the service request is simply discarded. Many residential broadband ISP accounts do not allow you to run any server processes (such as a Web or FTP server) from your location.

  • Page 77: Figure 4-10 Menu 15.2 - Nat Server Setup

    Start Port No. --------------------------------------------------- Default 1026 Press ENTER to Confirm or ESC to Cancel: Figure 4-10 Menu 15.2 — NAT Server Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch End Port No. IP Address Default 0.0.0.0 0.0.0.0 0.0.0.0 0.0.0.0...

  • Page 78: Figure 4-11 Multiple Servers Behind Nat Example

    Figure 4-11 Multiple Servers Behind NAT Example 4.3.3 Trigger Port Setup The following is an example of trigger port forwarding. Figure 4-12 Trigger Port Forwarding Process: Example 1. Jane requests a file from the Real Audio server (port 7070). 2. Port 7070 is a “trigger” port and causes the Prestige to record Jane’s computer IP address. The Prestige associates Jane's computer IP address with the "incoming"...

  • Page 79: Figure 4-13 Menu 15.3: Trigger Port Setup

    Enter 3 in menu 15 to display Menu 15.3 — Trigger Port Setup, shown next. Rule Name ---------------------------------------------------------------------- Real Audio Figure 4-13 Menu 15.3: Trigger Port Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 15.3 - Trigger Port Setup Incoming Start Port End Port 6970...

  • Page 80: Table 4-8 Menu 15.3-Trigger Port Setup Description

    Table 4-8 Menu 15.3—Trigger Port Setup Description FIELD Rule This is the rule index number. Name Enter a unique name for identification purposes. You may enter up to 15 characters in this field. All characters are permitted - including spaces. Incoming Incoming is a port (or a range of ports) that a server on the WAN uses when it sends out a particular service.

  • Page 81: Figure 4-14 Nat Example 1

    This is the Many-to-One mapping discussed in section 4.1.5. The SUA Only read-only option from the Network Address Translation field in menus 4 and 11.3 is specifically pre-configured to handle this case. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-14 NAT Example 1...

  • Page 82: Figure 4-16 Nat Example 2

    4.4.2 Example 2: Internet Access with an Inside Server In this case, you do exactly as above (use the convenient pre-configured SUA Only set) and also go to menu 15.2 to specify the Inside Server behind the NAT as shown later. 4.4.3 Example 3: Multiple Public IP Addresses With Inside Servers In this example, there are 3 IGAs from our ISP.

  • Page 83: Figure 4-17 Nat Example 3

    Enter 1 to begin configuring this new set. Enter a Set Name, choose the Edit Action and then enter 1 for the Select Rule field. Press [ENTER] to confirm. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-17 NAT Example 3...

  • Page 84: Figure 4-18 Example 3: Menu 11.3

    Step 4. Select Type as One-to-One (direct mapping for packets going both ways), and enter the local Start IP as 192.168.1.10 (the IP address of FTP Server 1), the global Start IP as 10.132.50.1 (our first IGA). (See Figure 4-19). Step 5.

  • Page 85: Figure 4-20 Example 3: Final Menu 15.1.1

    Now configure the IGA3 to map to our web server and mail server on the LAN. Step 7. Enter 15 from the main menu. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-19 Example 3: Menu 15.1.1.1 Menu 15.1.1 - Address Mapping Rules...

  • Page 86: Figure 4-21 Example 3: Menu 15.2

    Step 8. Now enter 2 from this menu and configure it as shown in Figure 4-21. Rule --------------------------------------------------- Press ENTER to Confirm or ESC to Cancel: 4.4.4 Example 4: NAT Unfriendly Application Programs Some applications do not support NAT Mapping using TCP or UDP port address translation. In this case it is better to use Many-One-to-One mapping as port numbers do not change for this mapping type.

  • Page 87: Figure 4-22 Nat Example 4

    Figure 4-23 Example 4: Menu 15.1.1.1 — Address Mapping Rule After you’ve configured your rule, you should be able to check the settings in menu 15.1.1 as shown next. Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 4-22 NAT Example 4 mapping types.

  • Page 88: Figure 4-24 Example 4: Menu 15.1.1 - Address Mapping Rules

    Set Name= Example4 Idx Local Start IP --- --------------- --------------- --------------- --------------- ------ 1. 192.168.1.10 Action= Edit Press ENTER to Confirm or ESC to Cancel: Figure 4-24 Example 4: Menu 15.1.1 — Address Mapping Rules 4-26 Menu 15.1.1 - Address Mapping Rules Local End IP Global Start IP Global End IP 192.168.1.12...

  • Page 89: Chapter 5 Remote Node Setup

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 5 Remote Node Setup This chapter shows you how to configure a remote node. A remote node is required for placing calls to a remote gateway. A remote node represents both the remote gateway and the network behind it across a WAN connection.

  • Page 90: Figure 5-1 Menu 11.1 Remote Node Profile For Ethernet Encapsulation

    Rem Node Name= ChangeMe Active= Yes Encapsulation= Ethernet Service Type= Standard Service Name= N/A Outgoing: My Login= N/A My Password= N/A Server IP= N/A Figure 5-1 Menu 11.1 Remote Node Profile for Ethernet Encapsulation Table 5-1 Fields in Menu 11.1 (Ethernet Encapsulation) FIELD Rem Node Enter a descriptive name for the remote node.

  • Page 91: Pptp Encapsulation

    5.1.2 PPTP Encapsulation If you change the Encapsulation to PPTP in Menu 11.1, then you will see the next screen. Please see the appendix for information. Remote Node Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE *****...

  • Page 92: Figure 5-2 Remote Node Profile For Pptp Encapsulation

    Menu 11.1 - Remote Node Profile Rem Node Name= ChangeMe Active= Yes Encapsulation= PPTP Service Type= Standard Service Name=N/A Outgoing: My Login= My Password= ******** Authen= CHAP/PAP PPTP : IP Addr= Server IP Addr= Connection ID/Name= Press ENTER to Confirm or ESC to Cancel: Press Space Bar to Toggle.

  • Page 93: Nailed-Up Connection

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Nailed-Up Connection A nailed-up connection is a dial-up line where the connection is always up regardless of traffic demand. The Prestige does two things when you specify a nailed-up connection. The first is that idle timeout is disabled.

  • Page 94: Figure 5-3 Menu 11.1 Remote Node Profile For Pppoe Encapsulation

    Menu 11.1 - Remote Node Profile Rem Node Name= ChangeMe Active= Yes Encapsulation= PPPoE Service Type= Standard Service Name= Outgoing= My Login= My Password= ******** Authen= CHAP/PAP Press ENTER to Confirm or ESC to Cancel: Press Space Bar to Toggle. Figure 5-3 Menu 11.1 Remote Node Profile for PPPoE Encapsulation The next table describes the fields NOT already described in Table 5-1 already.

  • Page 95: Editing Tcp/Ip Options (With Ethernet Encapsulation)

    Multicast= None Enter here to CONFIRM or ESC to CANCEL: Press Space Bar to Toggle. Figure 5-4 Remote Node Network Layer Options Remote Node Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION Version= N/A EXAMPLE 300 seconds...

  • Page 96: Table 5-4 Remote Node Network Layer Options Menu Fields

    The next table gives you instructions about configuring remote node network layer options. Table 5-4 Remote Node Network Layer Options Menu Fields FIELD IP Address If your ISP did not assign you an explicit IP address, select Dynamic; otherwise select Static and enter the IP address & subnet Assignment mask in the following fields.

  • Page 97: Figure 5-5 Remote Node Network Layer Options

    Press Space Bar to Toggle. Figure 5-5 Remote Node Network Layer Options The next table gives you instructions about configuring remote node network layer options. Remote Node Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION Version= N/A EXAMPLE...
  • Page 98 Table 5-5 Remote Node Network Layer Options Menu Fields FIELD IP Address If your ISP did not assign you an explicit IP address, select Dynamic; Assignment otherwise select Static and enter the IP address & subnet mask in the following fields. Rem IP Address If you have a Static IP Assignment, enter the IP address assigned to the remote node.

  • Page 99: Remote Node Filter

    Filters chapter. For PPPoE or PPTP Encapsulation, you can also specify remote node call filter sets. Remote Node Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE...

  • Page 100: Figure 5-6 Remote Node Filter (Ethernet Encapsulation)

    Menu 11.5 - Remote Node Filter Input Filter Sets: Output Filter Sets: Call Filter Sets: Enter here to CONFIRM or ESC to CANCEL: Figure 5-6 Remote Node Filter (Ethernet Encapsulation) Figure 5-7 Remote Node Filter (PPTP/PPPoE Encapsulation) 5-12 protocol filters= 5 device filters= protocol filters= 1 device filters=...

  • Page 101: Chapter 6 Ip Static Route Setup

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 6 IP Static Route Setup This chapter shows you how to configure static routes with your Prestige. Static routes tell the Prestige routing information what it cannot learn automatically through other means.

  • Page 102: Figure 6-2 Menu 12 - Ip Static Route Setup

    IP Static Route Setup You configure IP static routes in menu 12. 1, by selecting one of the IP static routes as shown below. Enter 12 from the main menu. 1. ________ 2. ________ 3. ________ 4. ________ 5. ________ 6.
  • Page 103 Once you have completed filling in this menu, press [ENTER] at the message “Press ENTER to Confirm…” to save your configuration, or press [ESC] to cancel. IP Static Route Setup Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 6-1 IP Static Route Menu Fields DESCRIPTION...

  • Page 105: Advanced Management

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Advanced Management This section provides information on Filter Configuration, SNMP Configuration, System Information and Diagnosis, Firmware and Configuration File Maintenance, System Maintenance and Call Scheduling.

  • Page 107: Chapter 7 Filter Configuration

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 7 Filter Configuration This chapter shows you how to create and apply filter(s). About Filtering Your Prestige uses filters to decide whether to allow passage of a data packet and/or to make a call. There are two types of filter applications: data filtering and call filtering.

  • Page 108: Figure 7-1 Outgoing Packet Filtering Process

    match Outgoing Data Packet Match Drop packet Figure 7-1 Outgoing Packet Filtering Process For incoming packets, your Prestige applies data filters only. Packets are processed depending upon whether a match is found. The following sections describe how to configure filter sets 7.1.1 The Filter Structure of the Prestige A filter set consists of one or more filter rules.

  • Page 109: Filter Set

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Start Packet into Filter Fetch First Filter Set Filter Set Fetch Next Fetch First Filter Set Filter Rule Fetch Next Filter Rule Execute Filter Next Filter Set Next Filter Rule Available?

  • Page 110: Configuring A Filter Set

    You can apply up to four filter sets to a particular port to block multiple types of packets. With each filter set having up to six rules, you can have a maximum of 24 rules active for a single port. Configuring a Filter Set To configure a filter set, follow the procedure below.

  • Page 111: Figure 7-4 Netbios_Wan Filter Rules Summary

    Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=80 Enter Filter Rule Number (1-6) to Configure: Figure 7-6 TEL_FTP_WEB_WAN Filter Rules Summary Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 21.1 - Filter Rules Summary Filter Rules M m n Menu 21.2 - Filter Rules Summary...

  • Page 112: Figure 7-7 Snmp_Wan Filter Rules Summary

    # A Type - - ---- --------------------------------------------------------------- - - - 1 Y IP Pr=17, SA=0.0.0.0, DA=0.0.0.0, DP=161 Figure 7-7 SNMP_WAN Filter Rules Summary 7.2.1 Filter Rules Summary Menu This screen shows the summary of the existing rules in the filter set. The following tables contain a brief description of the abbreviations used in the previous menus.

  • Page 113: Configuring A Filter Rule

    IP and the upper layer protocol, e.g., UDP and TCP headers. To configure TCP/IP rules, select press [ENTER] to open Menu 21.1.1 - TCP/IP Filter Rule, as shown next. Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 7-2 Rule Abbreviations Used DESCRIPTION Protocol...

  • Page 114: Figure 7-8 Menu 21.1.1 — Tcp/Ip Filter Rule

    Filter #: 1,1 Filter Type= TCP/IP Filter Rule Active= Yes IP Protocol= 6 Destination: IP Addr= 0.0.0.0 IP Mask= 0.0.0.0 Port #= 137 Port # Comp= Equal Source: IP Addr= 0.0.0.0 IP Mask= 0.0.0.0 Port #= Port # Comp= None TCP Estab= No More= No Action Matched= Drop...
  • Page 115 Check Next Rule, Forward or Drop. Action Not Matched Select the action for a packet not matching the rule. Options are Check Next Rule, Forward or Drop. Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE Equal IP Address...
  • Page 116 FIELD Once you have completed filling in Menu 21.1.1.1 - TCP/IP Filter Rule, press [ENTER] at the message “Press Enter to Confirm to save your configuration, or press [ESC] to cancel”. This data will now be displayed on Menu 21.1.1 - Filter Rules Summary. The following figure illustrates the logic flow of an IP filter.

  • Page 117: Figure 7-9 Executing An Ip Filter

    Check Src & Dest Port Matched More? Action Matched Drop Drop Packet Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Not Matched Not Matched Not Matched Not Matched Check Next Rule Check Next Rule Forward Check Next Rule...

  • Page 118: Figure 7-10 Menu 21.4.1 — Generic Filter Rule

    7.2.4 Generic Filter Rule This section shows you how to configure a generic filter rule. The purpose of generic rules is to allow you to filter non-IP packets. For IP, it is generally easier to use the IP rules directly. For generic rules, the Prestige treats a packet as a byte stream as opposed to an IP or IPX packet.
  • Page 119 “[Press Enter to Confirm] to save your configuration, or press [ESC] to cancel”. This data will now be displayed on Menu 21.1.1 — Filter Rules Summary. Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Description EXAMPLE Generic Filter Rule...

  • Page 120: Example Filter

    Example Filter Let’s look at an example to block outside users from telnetting into the Prestige. See the included support CD for more example filters. Step 1. Enter 21 from the main menu to open Menu 21 - Filter Set Configuration. Step 2.

  • Page 121: Figure 7-12 Example Filter — Menu 21.3.1

    Press [ENTER] to confirm and display the next screen. Note that there is only one filter rule in this set. Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Select Equal here as we are looking for packets going to port 21 only.

  • Page 122: Figure 7-13 Example Filter Rules Summary — Menu 21.3

    # A Type - - ---- --------------------------------------------------------------- - - - 1 Y IP Pr=6, SA=0.0.0.0, DA=0.0.0.0, DP=21 Enter Filter Rule Number (1-6) to Configure: 2 This shows you that you have configured and activated (A = Y) a TCP/IP filter rule (Type = IP, Pr = 6) for destination FTP ports (DP = 21).

  • Page 123: Filter Types And Nat

    The interface can be an Ethernet port or any other hardware port. The following figure illustrates this. Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 21.7 - Filter Rules Summary M m n...

  • Page 124: Figure 7-15 Protocol And Device Filter Sets

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 7-15 Protocol and Device Filter Sets Applying a Filter and Factory Defaults This section shows you where to apply the filter(s) after you design it (them). Sets of factory default filter rules have been configured in menu 21 to prevent NetBIOS traffic from triggering calls and block incoming telnet, FTP and HTTP connections.

  • Page 125: Figure 7-16 Filtering Lan Traffic

    Enter here to CONFIRM or ESC to CANCEL: Figure 7-17 Filtering Remote Node Traffic Filter Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 3.1 – LAN Port Filter Setup Press ENTER to Confirm or ESC to Cancel:...

  • Page 127: Introducing Universal Plug And Play

    Learning public IP addresses Assigning lease times to mappings Windows Messenger is an example of an application that supports NAT Transversal and UPnP. UPnP Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch This chapter introduces the UPnP feature. Chapter 8 UPnP...

  • Page 128: Cautions With Upnp

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch See the Network Address Translation (NAT) chapter in your User's Guide for further information about NAT. 8.1.3 Cautions with UPnP The automated nature of NAT Transversal applications in establishing their own services and opening firewall ports may present network security issues.
  • Page 129 This identifies the ZyXEL device in UPnP applications. Apply Click Apply to save the setting to the Prestige. Reset Click Reset to begin configuring this screen afresh. UPnP Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 8-1 Configuring UPnP Table 8-1 Configuring UPnP DESCRIPTION...

  • Page 130: Installing Upnp In Windows Example

    Installing UPnP in Windows Example This section shows how to install UPnP in Windows Me and Windows XP. Installing UPnP in Windows Me Follow the steps below to install the UPnP in Windows Me. Step 5. Click Start and Control Panel. Double-click Add/Remove Programs.
  • Page 131 Step 14. In the Networking Services window, select the Universal Plug and Play check box. Step 15. Click OK to go back to the Windows Optional Networking Component Wizard window and click Next. UPnP Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...

  • Page 132: Using Upnp In Windows Xp Example

    Using UPnP in Windows XP Example This appendix shows you how to use the UPnP feature in Windows XP. You must already have UPnP installed in Windows XP and UPnP activated on the ZyXEL device. Make sure the computer is connected to a LAN port of the ZyXEL device. Turn on your computer and the ZyXEL device.
  • Page 133 OK. An icon displays in the system tray UPnP Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch mappings will be deleted automatically. Step 19. You may edit or delete the port mappings or click Add to...

  • Page 134: Web Configurator Easy Access

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Step 21. Double-click on the icon to display your current Internet connection status. Web Configurator Easy Access With UPnP, you can access the web-based configurator on the ZyXEL device without finding out the IP address of the ZyXEL device first.
  • Page 135 Step 25. An icon with the description for each UPnP-enabled device displays under Local Network. Step 26. Right-click on the icon for your ZyXEL device and select Invoke. The web configurator login screen displays. UPnP Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...
  • Page 136 Step 27. Right-click on the icon for your ZyXEL device and select Properties. A properties window displays with basic information about the ZyXEL device. 8-10 UPnP...

  • Page 137: Chapter 9 Snmp Configuration

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 9 SNMP Configuration This chapter explains SNMP configuration menu 22. SNMP is only available if TCP/IP is configured. About SNMP Simple Network Management Protocol is a protocol used for exchanging management information between network devices.
  • Page 138 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 9-1 SNMP Management Model An SNMP managed network consists of two main components: agents and a manager. An agent is a management software module that resides in a managed device (the Prestige). An agent translates the local management information from the managed device into a form compatible with SNMP.

  • Page 139: Supported Mibs

    Destination= 0.0.0.0 Figure 9-2 Menu 22 — SNMP Configuration The following table describes the SNMP configuration parameters. SNMP Configuration Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 22 - SNMP Configuration Press ENTER to Confirm or ESC to Cancel:...

  • Page 140: Snmp Traps

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 9-1 SNMP Configuration Menu Fields FIELD Get Community Type the Get Community, which is the password for the incoming Get- and GetNext requests from the management station. Set Community Type the Set community, which is the password for incoming Set requests from the management station.
  • Page 141 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch TRAP # TRAP NAME DESCRIPTION For fatal error: A trap is sent with the message of the fatal code if the system reboots because of fatal errors. SNMP Configuration...

  • Page 143: Chapter 10 Traffic Redirect

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 10 Traffic Redirect This section details the configuration process for Traffic Redirect. Metric The metric sets the priority for the Prestige’s routes to the Internet. If any two of the default routes have the same metric, the Prestige uses the following pre-defined priorities: 1.
  • Page 144 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 10-1 Traffic Redirect WAN Setup The following network topology allows you to avoid triangle route security holes when the backup gateway is connected to the LAN. Use IP alias to configure the LAN into two or three logical networks with the Prestige itself as the gateway for each LAN network.

  • Page 145: Traffic Redirect Setup

    Configure parameters that determine when the Prestige will forward WAN traffic to the backup gateway using Menu 11.6 — Traffic Redirect Setup. Traffic Redirect Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 11.1 - Remote Node Profile Route= IP...
  • Page 146 Figure 10-4 Menu 11.6 — Traffic Redirect Setup FIELD Active Press [SPACE BAR] and select Yes (to enable) or No (to disable) traffic redirect setup. The default is No. When the Active field is Yes, you must configure every field in this screen unless you are using PPPoE or PPTP encapsulation (except Check WAN IP Address and Timeout).
  • Page 147 When you have completed this menu, press [ENTER] at the prompt “Press [ENTER] to confirm or [ESC] to cancel” to save your configuration or press [ESC] to cancel and go back to the previous screen. Traffic Redirect Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION EXAMPLE 0.0.0.0...

  • Page 149: System Information And Console Port Speed

    Prestige. Specifically, it gives you information on your system firmware version, number of packets sent and number of packets received. System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch This chapter covers SMT menus 24.1 to 24 .4. Menu 24 - System Maintenance 1.
  • Page 150 11.1.1 To get to the System Status: • Enter 24 to display Menu 24 - System Maintenance. • In this menu, enter number 1 to open System Maintenance - Status. • There are three commands in Menu 24.1 - System Maintenance - Status. Entering 1 drops the WAN (PPTP/PPPoE) connection, 9 resets the counters and [ESC] takes you back to the previous screen.

  • Page 151: System Information And Console Port Speed

    This section describes your system and allows you to choose different console port speeds. To get to the system information and console port speed: System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION The number of transmitted packets on this port.

  • Page 152: System Information

    Step 1. Enter 24 to go to Menu 24 - System Maintenance. Step 2. Enter 2 to open Menu 24.2 - System Information and Console Port Speed. Step 3. From this menu you have two choices as shown in the next figure: Menu 24.2 - System Information and Console Port Speed Please enter selection: Figure 11-3 Menu 24.2 —...

  • Page 153: Console Port Speed

    Press ENTER to Confirm or ESC to Cancel: Figure 11-5 Menu 24.2.2 — System Maintenance — Change Console Port Speed System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION This is the Prestige's system name + domain name assigned in menu 1.

  • Page 154: Log And Trace

    11.3 Log and Trace There are three logging facilities in the Prestige. The first is the error logs and trace records that are stored locally. The second is the UNIX syslog facility for message logging. UNIX syslog is an external UNIX server used for storing log messages.

  • Page 155: Unix Syslog

    You need to configure the UNIX syslog parameters described in the following table to activate syslog then choose what you want to log. System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 24.3.2 -- System Maintenance - UNIX Syslog Syslog:...
  • Page 156 Table 11-3 System Maintenance Menu Syslog Parameters PARAMETER Syslog: Active Press the [SPACE BAR] to turn on or off syslog. Syslog IP Address Enter the IP Address of the server that will log the CDR (Call Detail Record) and system messages i.e., the syslog server. Log Facility Press the [SPACE BAR] to toggle between the 7 different Local options.

  • Page 157: Filter Log

    Mar 03 12:00:57 202.132.155.97 ZyXEL: GEN[00a0c5f502010080] }S05>R01mF Mar 03 12:01:01 202.132.155.97 ZyXEL: IP[Src=192.168.2.33 Dst=202.132.155.93 TCP spo=01170 dpo=00021]}S04>R01mF Mar 03 12:01:06 202.132.155.97 ZyXEL: IP[Src=192.168.2.33 Dst=202.132.155.93 TCP spo=01170 dpo=00021]}S04>R01mF System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 11-9...

  • Page 158: Call-Triggering Packet

    4. PPP log PPP Log Message Format sdcmdSyslogSend( SYSLOG_PPPLOG, SYSLOG_NOTICE, String ); String = ppp:Proto Starting / ppp:Proto Opening / ppp:Proto Closing / ppp:Proto Shutdown Proto = LCP / ATCP / BACP / BCP / CBCP / CCP / CHAP/ PAP / IPCP / IPXCP Jul 19 11:42:44 192.168.102.2 ZyXEL: ppp:LCP Closing Jul 19 11:42:49 192.168.102.2 ZyXEL: ppp:IPCP Closing...

  • Page 159: Diagnostic

    Menu 24.4 allows you to choose among various types of diagnostic tests to evaluate your system, as shown next. System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Time: 17:02:44.262 = 20 = 0x00 (0)

  • Page 160: Wan Dhcp

    TCP/IP 1. Ping Host 2. WAN DHCP Release 3. WAN DHCP Renewal 4. Internet Setup Test System 11. Reboot System Enter Menu Selection Number: Host IP Address= N/A Figure 11-10 Menu 24.4 — System Maintenance — Diagnostic Follow the procedure below to get to Menu 24.4 - System Maintenance – Diagnostic. Step 1.
  • Page 161 Reboot System Host IP Address System Information & Diagnosis Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Figure 11-11 WAN & LAN DHCP Enter 1 to ping any machine (with an IP address) on your LAN or WAN. Enter its IP address in the Host IP Address field mentioned in the last row of this table.

  • Page 163: Filename Conventions

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 12 Firmware and Configuration File Maintenance This chapter tells you how to back up and restore your configuration file as well as upload new firmware and a new configuration file.

  • Page 164: Backup Configuration

    The following table is a summary. Please note that the internal filename refers to the filename on the Prestige and the external filename refers to the filename not on the Prestige, that is, on your computer, local network or ftp site and so the name (but not the extension) will vary. After uploading new firmware see the ZyNOS F/W Version field in Menu 24.2.1 - System Maintenance - Information to confirm that you have uploaded the correct firmware version.

  • Page 165: Using The Ftp Command From The Dos Prompt

    Step 7. Enter “quit” to exit the ftp prompt. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Press ENTER to Exit: Figure 12-1 Telnet in Menu 24.5 12-3...
  • Page 166 Example of FTP Commands from the DOS Prompt 331 Enter PASS command Password: 230 Logged in ftp> bin 200 Type I OK ftp> get rom-0 zyxel.rom 200 Port command okay 150 Opening data connection for STOR ras 226 File received OK ftp: 16384 bytes sent in 1.10Seconds 297.89Kbytes/sec.

  • Page 167: Backup Configuration Using Tftp

    For UNIX, use “get” to transfer from the Prestige to the computer and “binary” to set binary transfer mode. 12.2.3 TFTP Command Example The following is an example tftp command: Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 12-5...

  • Page 168: Backup Via Console Port

    TFTP [-i] host get rom-0 config.rom where “i” specifies binary image transfer mode (use this mode when transferring binary files), “host” is the Prestige IP address, “get” transfers the file source on the Prestige (rom-0 name of the configuration file on the Prestige) to the file destination on the computer and renames it config.rom.
  • Page 169 After a successful backup you will see the following screen. Press any key to return to the SMT menu. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Type a location for storing the configuration file or click Browse to look for one.

  • Page 170: Restore Configuration

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch ** Backup Configuration completed. OK. ### Hit any key to continue.### Figure 12-6 Successful Backup Confirmation Screen 12.3 Restore Configuration This section shows you how to restore a previously saved configuration. Note that this function erases the current configuration before restoring a previous back up configuration;...
  • Page 171 Enter “quit” to exit the ftp prompt. The Prestige will automatically restart after a successful restore process. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Press ENTER to Exit: Figure 12-7 Telnet into Menu 24.6...

  • Page 172: Restore Via Console Port

    Restore Using FTP or TFTP Session Example ftp> put config.rom rom-0 200 Port command okay 150 Opening data connection for STOR rom-0 226 File received OK 221 Goodbye for writing flash ftp: 16384 bytes sent in 0.06Seconds 273.07Kbytes/sec. ftp>quit Figure 12-8 Restore Using FTP or TFTP Session Example Refer to the TFTP and FTP over WAN Will Not Work When section to read about configurations that disallow TFTP and FTP to work over WAN.

  • Page 173: Uploading Firmware And Configuration Files

    Restore Configuration section or by following the instructions in Menu 24.7.2 - System Maintenance - Upload Router Configuration File (for console port). Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Save to ROM Hit any key to start system reboot.

  • Page 174: Configuration File Upload

    DO NOT INTERUPT THE FILE TRANSFER PROCESS AS THIS MAY PERMANENTLY 12.4.1 Firmware File Upload FTP is the preferred method for uploading the firmware and configuration. To use this feature, your computer must have an FTP client. When you telnet into the Prestige, you will see the following screens for uploading firmware and the configuration file using FTP.
  • Page 175 Prestige to your computer and renames it “config.rom.” See earlier in this chapter for more information on filename conventions. Step 7. Enter “quit” to exit the ftp prompt. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Press ENTER to Exit: 12-13...

  • Page 176: Tftp File Upload

    FTP Session Example of Firmware File Upload 331 Enter PASS command Password: 230 Logged in ftp> bin 200 Type I OK ftp> put firmware.bin ras 200 Port command okay 150 Opening data connection for STOR ras 226 File received OK ftp: 1103936 bytes sent in 1.10Seconds 297.89Kbytes/sec.

  • Page 177: Uploading Via Console Port

    Select 1 from Menu 24.7 – System Maintenance – Upload Firmware to display Menu 24.7.1 - System Maintenance - Upload Router Firmware, and then follow the instructions as shown in the following screen. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 12-15...

  • Page 178: Example Xmodem Firmware Upload Using Hyperterminal

    Menu 24.7.1 - System Maintenance - Upload Router Firmware To upload router firmware: 1. Enter "y" at the prompt below to go into debug mode. 2. Enter "atur" after "Enter Debug Mode" message. 3. Wait for "Starting XMODEM upload" message before activating Xmodem upload on your terminal.

  • Page 179: Example Xmodem Configuration Upload Using Hyperterminal

    Step 3. Enter “atgo” to restart the Prestige. Example Xmodem Configuration Upload Using HyperTerminal Click Transfer, then Send File to display the following screen. Firmware and Configuration Maintenance Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 12-17...
  • Page 180 After the configuration upload process has completed, restart the Prestige by entering “atgo”. 12-18 Figure 12-19 Example Xmodem Upload Type the configuration file’s location, or click Browse to search for it. Choose the Xmodem protocol. Then click Send. Firmware and Configuration Maintenance...

  • Page 181: Chapter 13 System Maintenance & Information

    Maintenance. A list of valid commands can be found by typing help or ? at the command prompt. Type “exit” to return to the SMT main menu when finished. System Maintenance & Information Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch This chapter leads you through SMT menus 24.8 to 24.11. Menu 24 - System Maintenance 1.

  • Page 182: Call Control Support

    Copyright (c) 1994 - 2002 ZyXEL Communications Corp. ras> ? Valid commands are: exit pptp hdap ras> 13.2 Call Control Support The Prestige provides two call control functions: budget management and call history. Please note that this menu is only applicable when Encapsulation is set to PPPoE or PPTP in menu 4 or menu 11.1.

  • Page 183: Budget Management

    Elapsed Time/Total Period Enter “0” to update the screen or press [ESC] to return to the previous screen. System Maintenance & Information Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 24.9.1 - Budget Management Connection Time/Total Budget No Budget...

  • Page 184: Call History

    13.2.2 Call History This is the second option in Menu 24.9 - System Maintenance - Call Control. It displays information about past incoming and outgoing calls. Enter 2 from Menu 24.9 - System Maintenance - Call Control to bring up the following menu. Phone Number FIELD Phone Number...

  • Page 185: Time And Date Setting

    Then enter 10 to go to Menu 24.10 - System Maintenance - Time and Date Setting to update the time and date settings of your Prestige as shown in the following screen. System Maintenance & Information Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 24 - System Maintenance Enter Menu Selection Number:...
  • Page 186 Menu 24.10 - System Maintenance - Time and Date Setting Use Time Server when Bootup= None Time Server IP Address= N/A Current Time: New Time (hh:mm:ss): Current Date: New Date (yyyy-mm-dd): Time Zone= GMT Daylight Saving= No Start Date (mm-dd): End Date (mm_dd): Figure 13-7 Menu 24.10 System Maintenance —...
  • Page 187 On leaving menu 24.10 after making changes. When the Prestige starts up and if there is a time server configured in menu 24.10. iii. 24-hour intervals after booting. System Maintenance & Information Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch DESCRIPTION 13-7...

  • Page 189: Chapter 14 Remote Management

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chapter 14 Remote Management This chapter covers remote management (SMT menu 24.11). 14.1 Telnet The only way to configure your Prestige for remote management is through an SMT session using the console port.

  • Page 190: Dns (Domain Name System)

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 14.4 DNS (Domain Name System) DNS links names to IP addresses. When you access Web sites on the Internet, you can type the IP address of the site or the DNS name.
  • Page 191 Prestige. Enter an IP address to restrict access to a client with a matching IP address. Remote Management Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 24.11 - Remote Management Control Port = 23 Access = WAN only Secured Client IP = 0.0.0.0...

  • Page 192: Remote Management Limitations

    FIELD Once you have filled in this menu, press [ENTER] at the message "Press ENTER to Confirm or ESC to Cancel" to save your configuration, or press [ESC] to cancel. 14.6.1 Remote Management Limitations Remote management over LAN or WAN will not work when: 1.

  • Page 193: Chapter 15 Call Scheduling

    ______________ ______________ Enter Schedule Set Number to Configure= Edit Name= Press ENTER to Confirm or ESC to Cancel: Call Scheduling Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 26 - Schedule Setup Schedule Name Set # ------ Figure 15-1 Schedule Setup...

  • Page 194: Schedule Set Setup

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Lower numbered sets take precedence over higher numbered sets thereby avoiding scheduling conflicts. For example, if sets 1, 2, 3 and 4 in are applied in the remote node then set 1 will take precedence over set 2, 3 and 4 as the Prestige, by default, applies the lowest numbered set first.
  • Page 195 Enable Dial-On-Demand means that this schedule permits a demand call on the line. Disable Dial-On-Demand means that this schedule prevents a demand call on the line. Call Scheduling Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 15-1 Schedule Set Setup Fields DESCRIPTION EXAMPLE (default) 2000 –...

  • Page 196: Applying Schedule Sets To Remote Nodes

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch 15.4 Applying Schedule Sets to Remote Nodes Once your schedule sets are configured, you must apply them to the desired remote node(s). Enter 11 from the main menu and, using the [SPACE BAR], select PPPoE or PPTP in the Encapsulation field. Enter your target remote node index number(s) in the Schedules field, as shown next.
  • Page 197 Press ENTER to Confirm or ESC to Cancel: Figure 15-4 Applying Schedule Sets to a Remote Node Example (PPTP Encapsulation) Call Scheduling Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Menu 11.1 - Remote Node Profile Route= IP Edit IP= No...

  • Page 198: Troubleshooting And Additional Information

    Troubleshooting and Additional Information Troubleshooting and Additional Information This section provides information about solving common problems, some Appendices, as well as a Glossary and Index.

  • Page 199: Chapter 16 Troubleshooting

    Cannot access the Prestige from the LAN. Troubleshooting Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch CORRECTIVE ACTION Check the connection between the AC adapter and the Prestige. If the error persists, you may have a hardware problem. In this case, you should contact your vendor.

  • Page 200: Problems With The Wan Interface

    PROBLEM Cannot ping any computer on the LAN. 16.3 Problems with the WAN Interface Table 16-3 Troubleshooting the WAN interface PROBLEM Cannot get a WAN IP address from the ISP. Cannot connect to a remote node or ISP. 16-2 CORRECTIVE ACTION Check the 10M/100M LEDs on the front panel.

  • Page 201: Problems With Internet Access

    Check with the manufacturer of your Cable/xDSL modem about the cable requirement because some devices require a crossover cable and others a straight-through cable. Verify your settings in menu 3.2 and menu 4. Troubleshooting Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Table 16-4 Internet Access CORRECTIVE ACTION 16-3...

  • Page 203: Traditional Dial-Up Scenario

    3. It allows the ISP to use the existing dial-up model to authenticate and (optionally) to provide differentiated services. Traditional Dial-up Scenario The following diagram depicts a typical hardware configuration where the PCs use traditional dial-up networking. PPPoE Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Appendix A PPPoE...

  • Page 204: How Pppoe Works

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Diagram 1 Single-PC per Modem Hardware Configuration How PPPoE Works The PPPoE driver makes the Ethernet appear as a serial link to the PC and the PC runs PPP over it, while the modem bridges the Ethernet frames to the Access Concentrator (AC).
  • Page 205 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch The Prestige as a PPPoE Client When using the Prestige as a PPPoE client, the PCs on the LAN see only Ethernet and are not aware of PPPoE. This alleviates the administrator from having to manage the PPPoE clients on the individual PCs.

  • Page 206: Appendix Bpptp

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Appendix B PPTP What is PPTP? PPTP (Point-to-Point Tunneling Protocol) is a Microsoft proprietary protocol (RFC 2637 for PPTP is informational only) to tunnel PPP frames. How can we transport PPP frames from a PC to a broadband modem over Ethernet? A solution is to build PPTP into the ANT (ADSL Network Termination) where PPTP is used only over the short haul between the PC and the modem over Ethernet.

  • Page 207: Pptp Protocol Overview

    Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch pass the PPTP packets to the internal PPTP server (i.e. NT server) behind the NAT. Users need to forward PPTP packets to port 1723 by configuring the server in Menu 15.2 - Server Set Setup. In the case above as the PPTP connection is initialized by the remote PPTP Client, the user must configure the PPTP clients.
  • Page 208 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Diagram 5 Example Message Exchange between PC and an ANT PPP Data Connection The PPP frames are tunneled between the PNS and PAC over GRE (General Routing Encapsulation, RFC 1701, 1702). The individual calls within a tunnel are distinguished using the Call ID field in the GRE header.

  • Page 209: Appendix D Boot Commands

    Most other commands aid in advanced troubleshooting and should only be used by qualified engineers. Boot Commands Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Diagram 6 Option to Enter Debug Mode displays the seed that is used to generate a password to turn on the debug flag ATGO allows you to continue booting the system.
  • Page 210 just answer OK ATHE print help ATBAx change baudrate. 1:38.4k, 2:19.2k, 3:9.6k 4:57.6k 5:115.2k ATENx,(y) set BootExtension Debug Flag (y=password) ATSE show the seed of password generator ATTI(h,m,s) change system time to hour:min:sec or show current time ATDA(y,m,d) change system date to year/month/day or show current date ATDS dump RAS stack ATDT...

  • Page 211: Appendix E Netbios Filter Commands

    This command displays the current NetBIOS filter settings. =============== NetBIOS Filter Status =============== Diagram 8 NetBIOS Display Filter Settings Command NetBIOS Filter Commands Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch NetBIOS Filter Commands The following describes the NetBIOS packet filter commands. LAN to WAN:...
  • Page 212 The filter types and their default settings are as follows. NAME LAN to WAN This field displays whether NetBIOS packets are blocked or forwarded from the LAN to the WAN. WAN to the LAN This field displays whether NetBIOS packets are blocked or forwarded from the WAN to the LAN.
  • Page 213 Command: sys filter netbios config 2 on This command blocks IPSec NetBIOS packets Command: sys filter netbios config 3 off This command stops NetBIOS commands from initiating calls. NetBIOS Filter Commands Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch...

  • Page 214: Log Descriptions

    Configure centralized logs using the embedded web configurator; see the online help for details. LOG MESSAGE %s exceeds the max. number of session per host! LOG MESSAGE Time calibration is successful Time calibration failed DHCP client gets %s DHCP client IP expired DHCP server assigns SMT Login...

  • Page 215: Telnet Login

    IP/Domain Name URLBLK IP/Domain Name Log Descriptions Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch Chart 2 System Maintenance Logs Someone has logged on to the router via telnet. Someone has failed to log on to the router via telnet.
  • Page 216 Prestige 314 PLUS Broadband Sharing Gateway with 4-Port Switch JAVBLK IP/Domain Name Chart 5 ICMP Type and Code Explanations TYPE CODE Echo Reply Echo reply message Destination Unreachable Net unreachable Host unreachable Protocol unreachable Port unreachable A packet that needed fragmentation was dropped because it was set to Don't...
