Rear Panel Components

Draft 11-11-2016

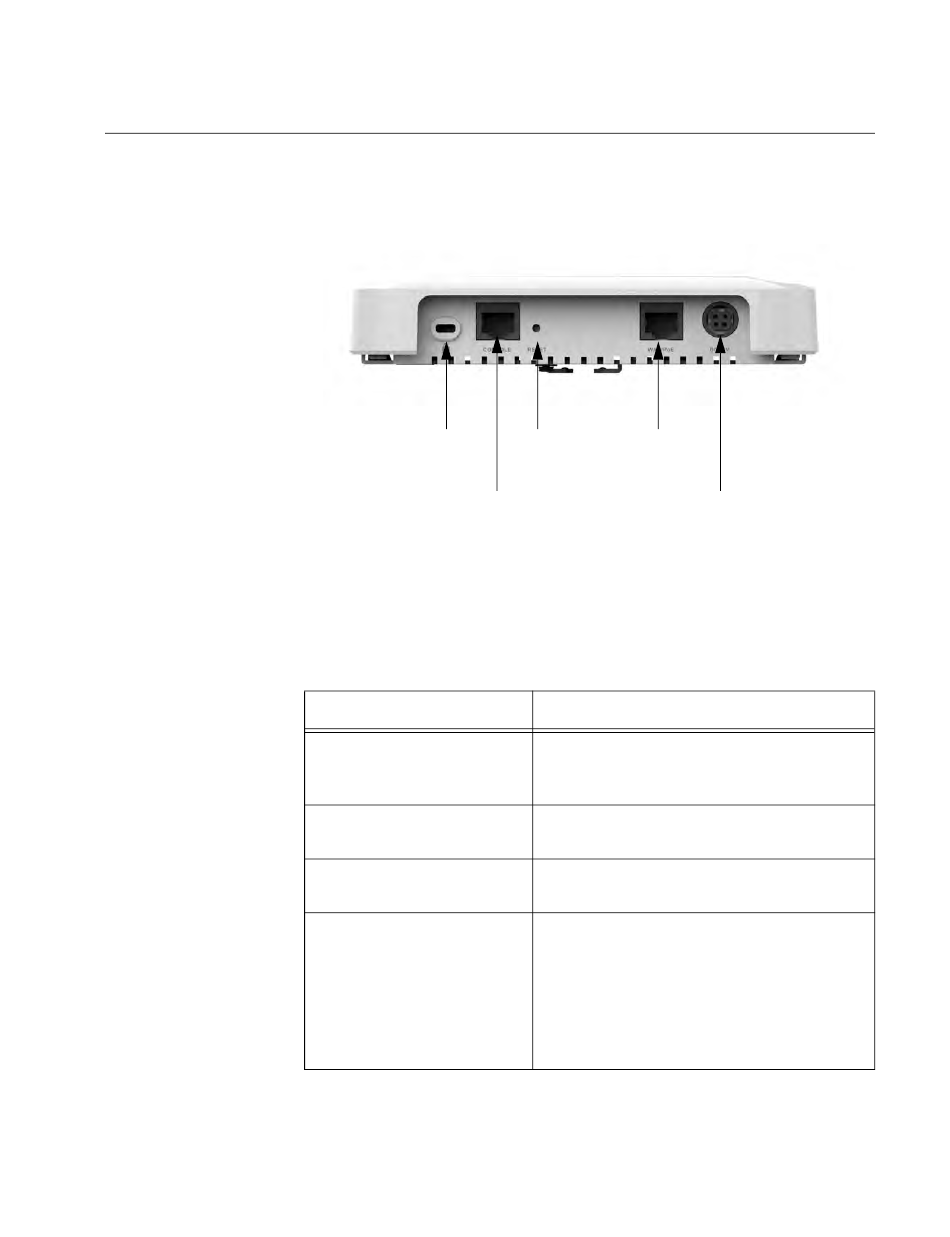

The rear panel components of the AT-AP500 Access Point are illustrated
in Figure 1.
Kensington
Lock
Console
Port
Figure 1. Rear Panel Components
The components are listed in Table 1.

Table 1. Components on the Rear Panel

Field
Kensington Lock
Console Port
Reset Button
LAN Port
AT-AP500 Wireless Access Point Installation Guide
Reset
LAN Port
Button
DC Power
Connector
Description
Lock to secure the access point. For
information, refer to "Kensington Lock" on
page 30.
The Console port is for manufacturing
purposes only.
Reboots the unit. For information, refer to
"Reset Button" on page 18.
The LAN port connects the access point
to your wired network. It supports PoE+. If
you connect the port to an Ethernet switch
that supports PoE+, you do not have to
use the AC/DC adapter to power the
device. For information, refer to "LAN
Port" on page 15.
