MicroScanner Pro
Users Manual
Some early model 100TX only network equipment does
not generate link pulses and M
display HUB, the cable length and the word SIGNAL.
14
S
P
will
ICRO
CANNER
RO
aue14f.eps
Network Link Indicator
The Network Link Indicator allows you to find and
identify active network 10/100 hubs and confirm to
which hub M
S
ICRO
CANNER
the hub's status indicator to assist locating a single
channel in a busy wiring closet.
1.
Connect the cable to be tested to the MAIN jack
(identified on the unit right above the modular 8
jack).
2.

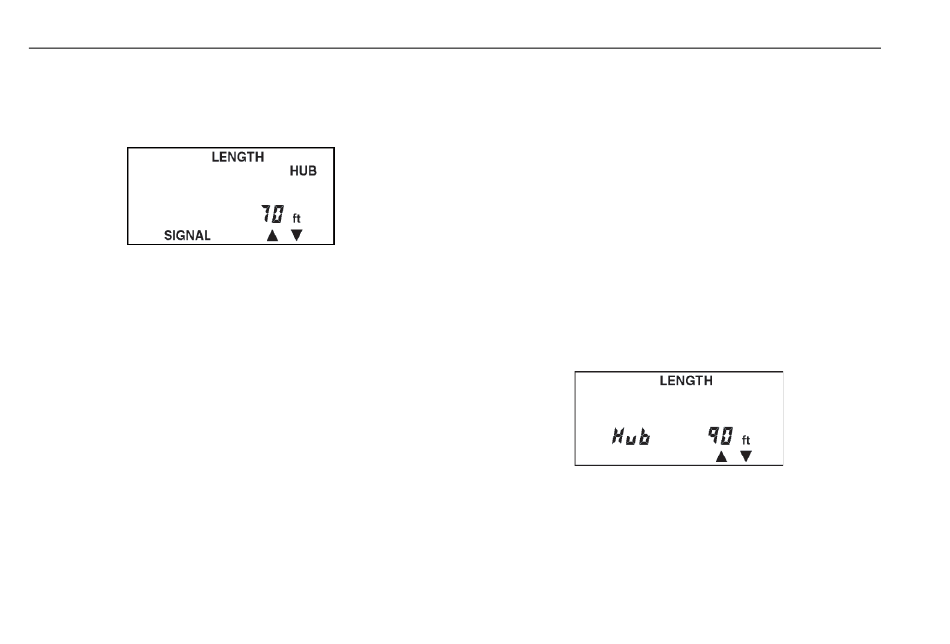

To display the length screen, press the MODE key
until the word LENGTH appears on the screen.
M
S
P
displays the word Hub followed
ICRO
CANNER
RO
by the length to the hub.
P
is connected. It will blink
RO
aue15f.eps
