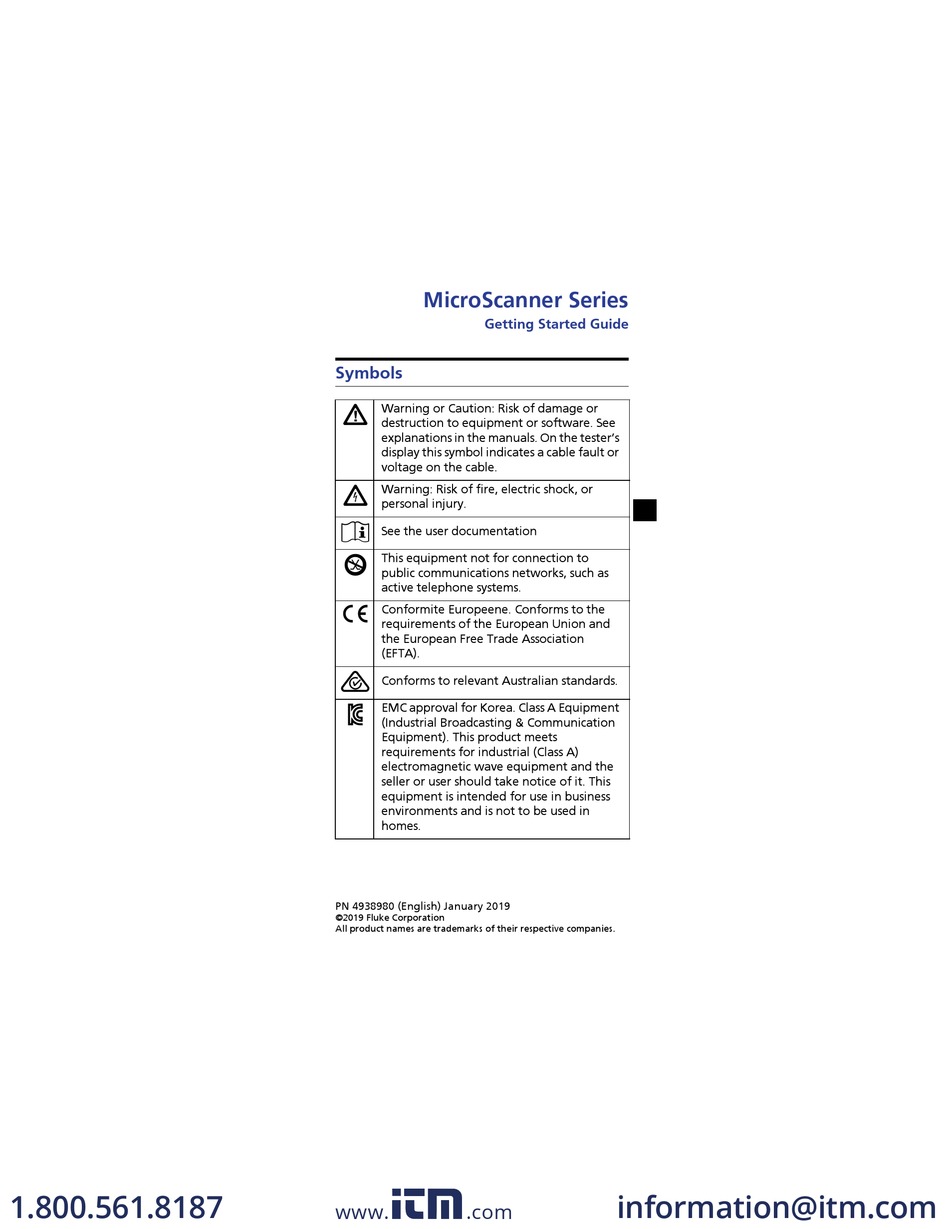

MicroScanner Series
Getting Started Guide
Symbols
Warning or Caution: Risk of damage or
W
destruction to equipment or software. See
explanations in the manuals. On the tester's
display this symbol indicates a cable fault or
voltage on the cable.
Warning: Risk of fire, electric shock, or
X
personal injury.
See the user documentation
This equipment not for connection to
j
public communications networks, such as
active telephone systems.
Conformite Europeene. Conforms to the
P
requirements of the European Union and
the European Free Trade Association
(EFTA).
Conforms to relevant Australian standards.
EMC approval for Korea. Class A Equipment
(Industrial Broadcasting & Communication
Equipment). This product meets
requirements for industrial (Class A)
electromagnetic wave equipment and the
seller or user should take notice of it. This
equipment is intended for use in business
environments and is not to be used in
homes.
PN 4938980 (English) January 2019
©2019 Fluke Corporation
All product names are trademarks of their respective companies.
www.
.com
information@itm.com
Advertisement
Table of Contents
Related Manuals for Fluke MS2-100-IE
Summary of Contents for Fluke MS2-100-IE
- Page 1 This equipment is intended for use in business environments and is not to be used in homes. PN 4938980 (English) January 2019 ©2019 Fluke Corporation All product names are trademarks of their respective companies. 1.800.561.8187 information@itm.com www.
- Page 2 WSafety Information This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation"...
- Page 3 Do not modify the Product. Use only replacement parts that are approved by Fluke Networks. Do not touch voltages > 30 V AC rms, 42 V AC peak, or 60 V DC.
- Page 4 WSafety Information Do not use and disable the Product if it is damaged. Do not use the Product if it operates incorrectly. Batteries contain hazardous chemicals that can cause burns or explode. If exposure to chemicals occurs, clean with water and get medical aid.
- Page 5 Keys Have an approved technician repair the Product. Do not put metal objects into connectors. Keys Combinations of keys provide additional functions. See the Users Manual. MicroScanner Selects the Selects the active port test mode (RJ45 or coaxial) Scrolls through settings and detailed results.
-
Page 6: Display Features
Display Features Display Features MicroScanner G H I MicroScanner PoE K I J 802.3 Class 1.800.561.8187 information@itm.com www. .com... - Page 7 Display Features Detail screen indicator. To scroll through detail screens, press during a cable test. MicroScanner : Indicates which port is active, the RJ45 port ( ) or the coaxial port Tone mode indicator ...
-
Page 8: Changing The Length Units
Changing the Length Units MicroScanner : Indicates an ID locator is connected to the far end of the cable. Ethernet port indicator. The speeds of the port show under the indicator. Wiremap diagram. The rightmost segments indicate the shield. ... - Page 9 Testing Cabling Connecting to Twisted Pair Network Cabling Patch panel RJ45 patch cords Wall outlet Wiremap adapter EGS03.EPS Connecting to a Bus Topology Distribution center Connection to bus RJ11 patch Wiremap cords adapter Note: You can swap the locations of the tester and wiremap adapter.
- Page 10 Testing Cabling Connecting to a Star Topology Distribution center Common connection to bridge tap RJ11 patch Wiremap cords adapter Note: For a correct length reading, connect the tester and wiremap adapter as shown. See the Users Manual for details. EGS16.EPS Connecting to Coaxial Cabling (MicroScanner Connection to service...
-
Page 11: Using The Toner
Using the Toner Using the Toner MicroScanner : Press to select twisted pair ( ) or coaxial ( ) cable. Connect the tester to the cable. Press until appears on the display. To cycle through the IntelliTone and analog ... -
Page 12: Replacing The Batteries
Replacing the Batteries To select PoE mode, press until PoE appears on the display. In PoE mode, the tester solicits PoE power on pairs 1,2-3,6 and 4,5-7,8. The tester may activate a PoE source and will not be damaged by PoE power. ... -
Page 13: General Specifications
Learn More General Specifications 2 AA alkaline, NEDA 15A, IEC LR6 Battery Type Operating: 0 °C to 45 °C Temperature Storage: -20 °C to +60 °C Operating: 4,000 m Altitude Storage: 12,000 m 1.800.561.8187 information@itm.com www. .com... - Page 14 LIMITED WARRANTY AND LIMITATION OF LIABILITY Fluke Networks mainframe products will be free from defects in material and workmanship for one year from the date of purchase, unless stated otherwise herein. The warranty period for the MicroScanner wiremap adapter is also one year.
