2.

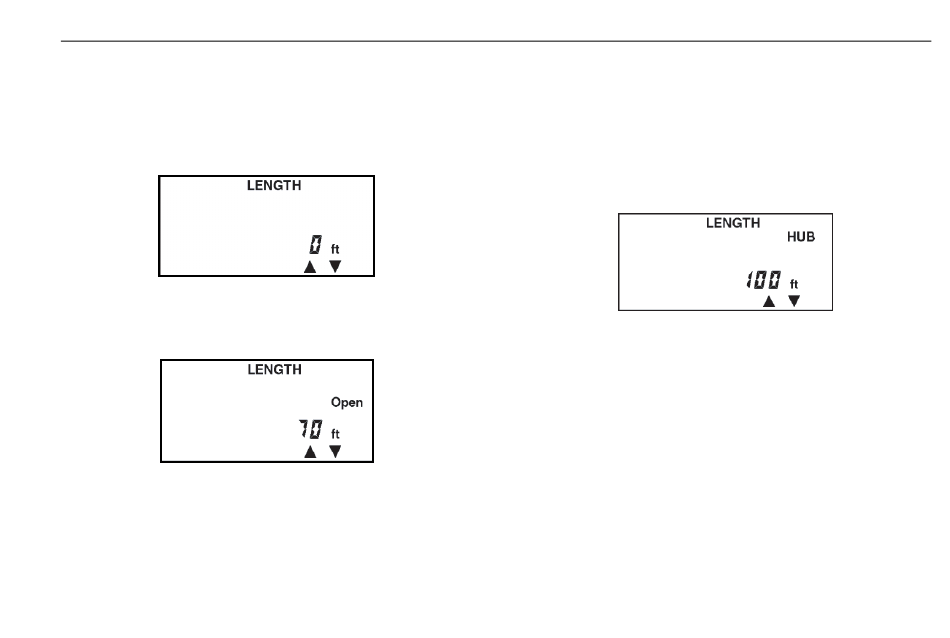

To display the length screen, press the MODE key
until the word LENGTH appears on the screen. The
overall cable length will be shown.
No Cable attached
70 feet cable
If the far end of a cable is connected to a hub,
M
S
ICRO
CANNER
length. The cable is considered connected to a hub
when the 3 - 6 pair is terminated and either pair 1 - 2
or 4 - 5 is terminated.
Length to Hub
aue11f.eps
aue12f.eps
MicroScanner Pro™
MicroScanner Pro Tests
P
will display HUB and the cable
RO
aue13f.eps
13
