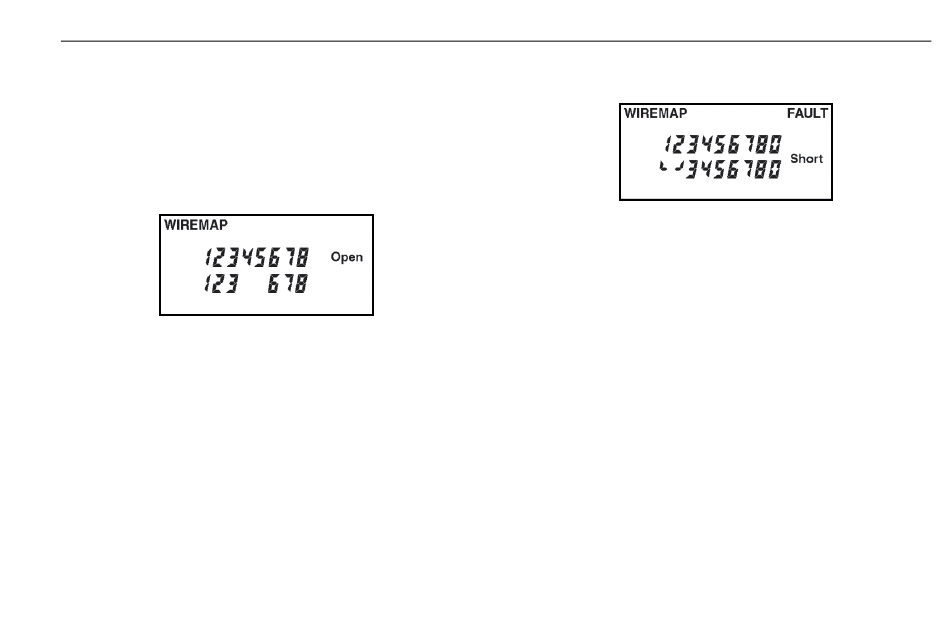

If the wire does not go to the far end, the numerical
indicator for the open will be left blank. The word
Open will be displayed. Shorted pairs are indicated
with a connecting bracket, and the word Short will be
displayed.
Open: Pair 4 – 5
Short: Pair 1 – 2
When the wiring fault includes shorted or swapped
non-pair pins (e.g. non-pair pins 1 - 3), the wiremap
will display dashes for those numerical wire indicators.
aue09f.eps
Shielded cross-over cables cannot be read by
MicroScanner Pro. Wiremap will show as a
series of dashes.
MicroScanner Pro™
MicroScanner Pro Tests
aue10f.eps
Note
