Coaxial Cabling
This feature is available when you use the
COAX upgrade kit.
M
S
P
measures the full length of a 50
ICRO
CANNER
RO
and/or 75Ω (Ohms) coaxial cable, e.g. RG-6 and
identifies its termination state.
1.
Attach the supplied COAX adapter to the MAIN
jack (identified on the unit right above the
modular 8 jack).
18
Note
2.
Connect the cable to be tested to the COAX
adapter jack.
3.

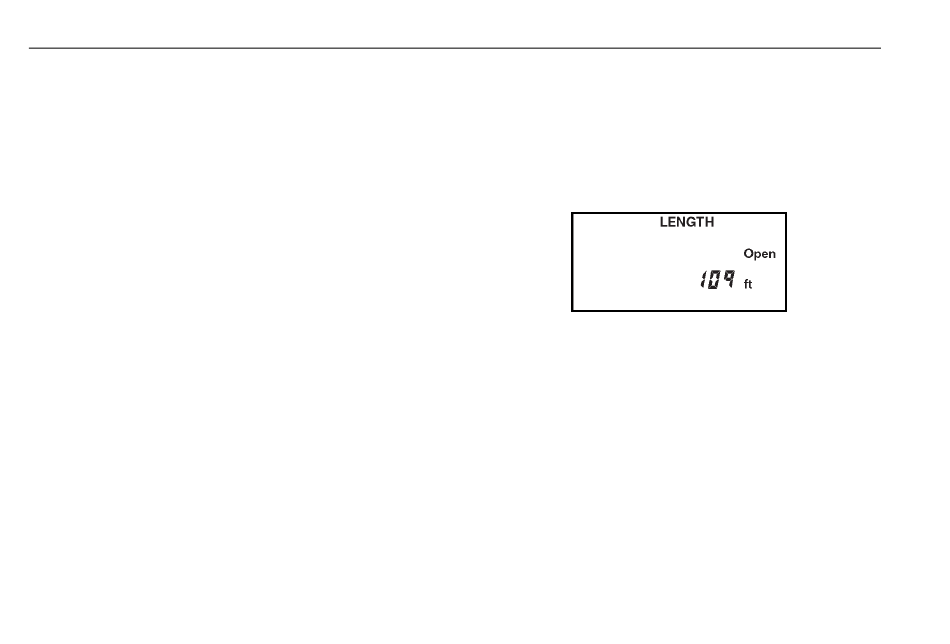

To display the length screen, press the MODE key
until the word LENGTH appears on the screen.
The overall cable length will be shown.
aue21f.eps
